220-385V Surge Protective Device
Surge protective device (SPD) is a device used to protect electrical equipment and systems from overvoltage transients. 220-385v surge protective device can quickly limit the overvoltage to a safe range in case of transient overvoltage caused by lightning stroke, switch operation, start and stop of large electrical equipment in the power system, so as to protect the safe operation of electrical equipment.
Introduction
220-385v surge protective device is used to prevent lightning surge voltage in low-voltage electrical system or solar energy system (photovoltaic power supply system). These devices must be installed in parallel on the protected low-voltage distribution system or DC power supply system, and provide common and different protection methods. The 220-385v surge protective device is recommended to be installed at the front end of the household side of the distribution system or at both ends of the DC power line (solar panel side and inverter/converter side), and equipped with corresponding circuit breakers or fuses.
Features&Benefits
T2, T1+T2 surge protection devices are available for photovoltaic/low-voltage power system.
Module design, easy installation, and replaceable.

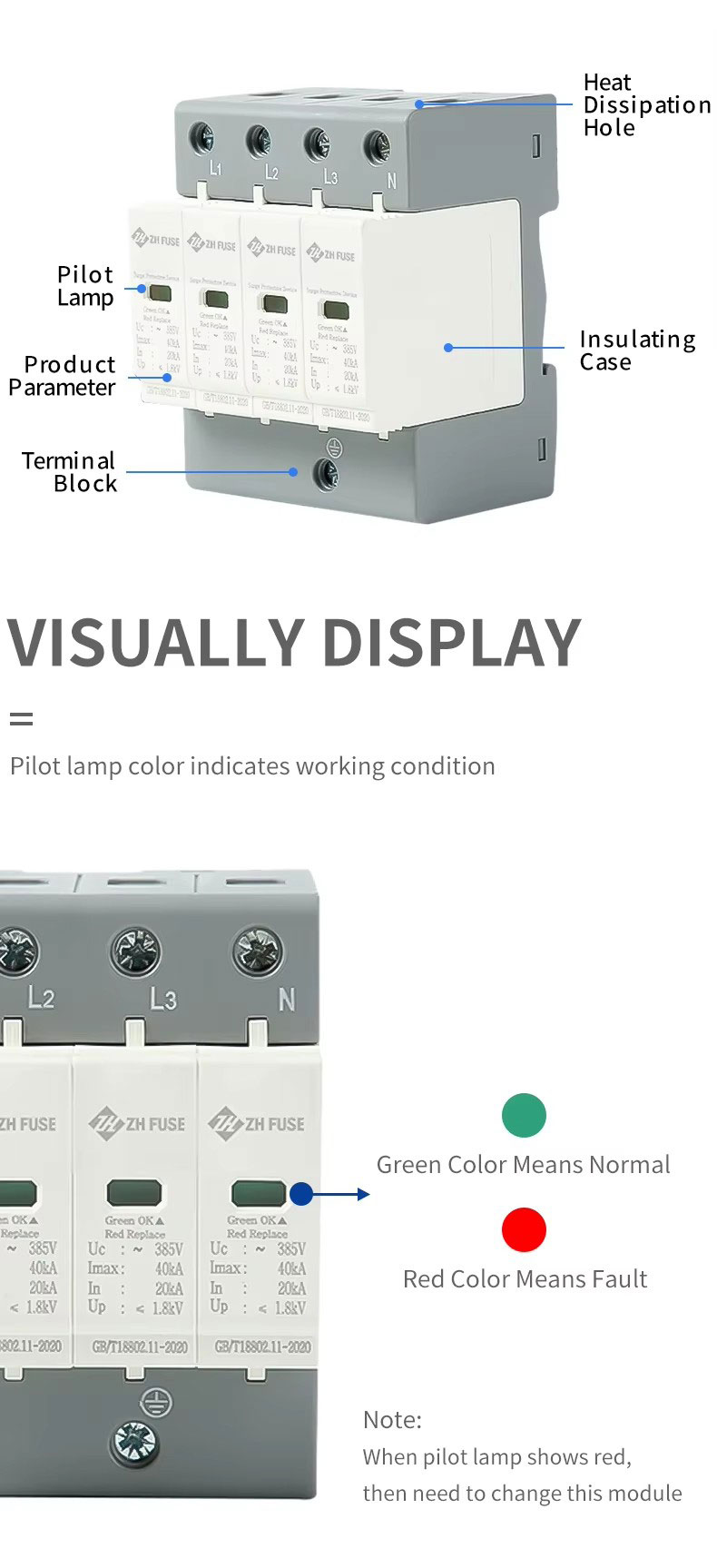

The color of the visible window indicates the running status, green indicates normal, and red indicates abnormal.
No leakage, no working current.
Remote signal or intelligent monitoring module (optional).
Application
Power system
communication system
computer system
Automotive electronic system, etc
Key attributes
Industry-specific attributes
| Type | T2 |
| Rated Voltage | 220V |
| Max Discharge current | 60A |
Other attributes
| Number of Pole | 4 |
| Nominal Discharge current | 40A |
| Place of Origin | Zhejiang, China |
| Brand Name | ZHEJIANGRONG |
| Model Number | ZRSPD-60 |
| Brand | ZHENGRONG |
| Product name | Surge Protection |
| Rated Voltage | 200V/385V |
| Rated Current | 40/60 KA |
| Certificate | CE, CCC |
| Color | Customized Color |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+Years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 0.100 kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |
Products Display
Specification
| Product Name | Surge Protection |
| Product Model | ZRSPD-60 |
| Maximum Discharge Current | 60KA |
| Voltage | 220V/385V |
| Respond Time | ≤25ns |

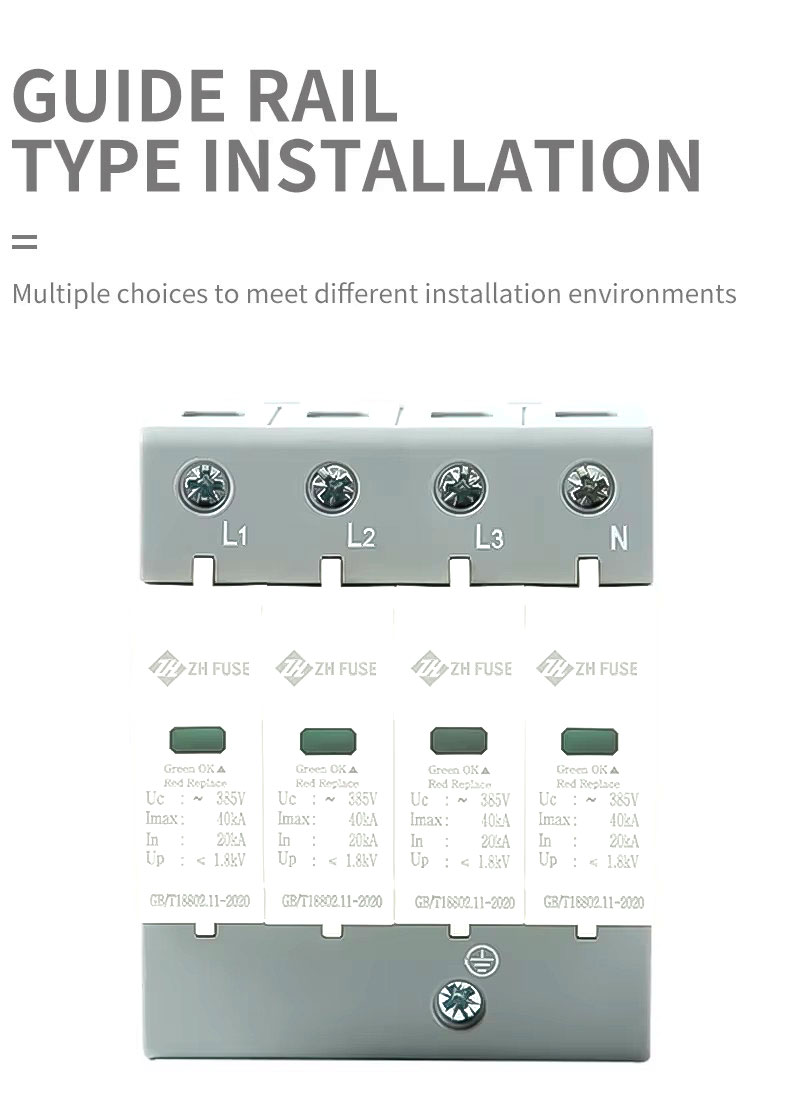

| Product Dimensions | Length 54MM; Width 85MM; Height 70MM |
| Sheating Material | PC Flame Retardant Material |
| Product Structure | Plug-Type |
Certification
