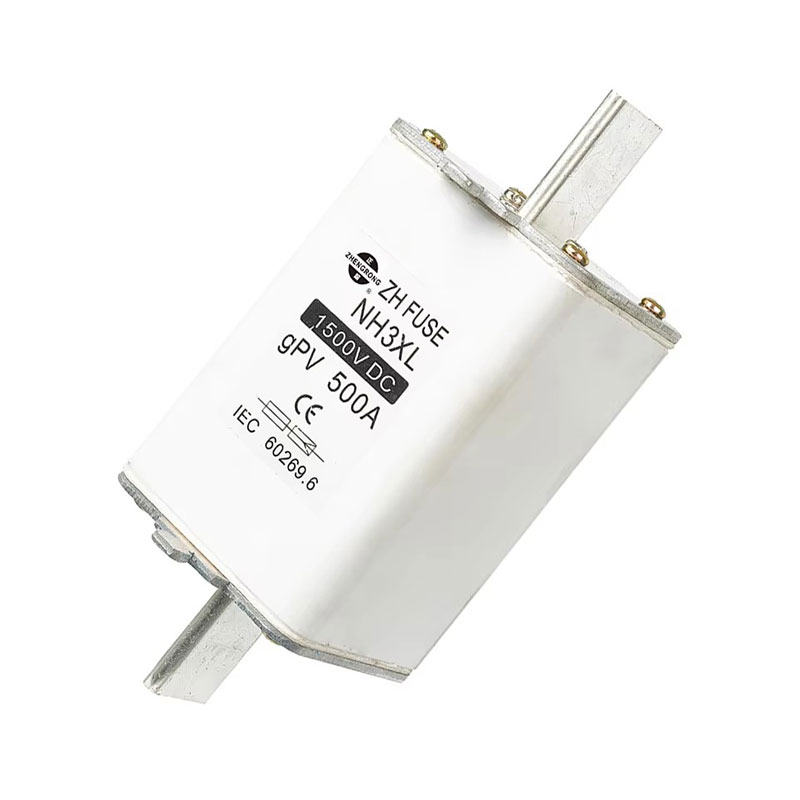

500A gPV 1500VDC Fuse core
  • 500A gPV 1500VDC Fuse core500A gPV 1500VDC Fuse core

500A gPV 1500VDC Fuse core

The 500A gPV 1500VDC Fuse core is a self-developed solar photovoltaic fuse to meet the emerging needs of the global photovoltaic (PV) industry. It is designed specifically for protection and isolation. Photovoltaic (PV) array combiner and DC disconnect. The standard size fuse connection of this reinforced structure can effectively protect 1000VDC photovoltaic (PV) systems. The 500A gPV 1500VDC Fuse core provides various rated currents from 250A to 400A, which helps to match specific photovoltaic (PV) applications in different situations, such as photovoltaic array protection and photovoltaic inverter DC input protection.

Introduction

As a manufacturer headquartered in China, we are proud to launch the 500A gPV 1500VDC Fuse core product, which we believe will bring significant benefits to businesses and their customers outside of China. We also believe that the 500A gPV 1500VDC Fuse core can solve your problem needs, providing reliable and effective protection specifically for electrical systems to ensure their optimal operation.

Features&Benefits

● 1000VDC Photovoltaic (PV)system available
● 250-500A ampere ratings available
● Meets IEC60269 standard for global acceptance
● Low power dissipation design for high energy efficiency
● NH screw mountable
● 20KA breaking capacity
● Striker and microswitch available
● Excellent performance at temperature extremes

Application

Combiner box
PV array protection
ln-line PV module protection
1000V disconnects
1000V string inverter

Key attributes

Industry-specific attributes

Breaking Capacity High

Other attributes

Place of Origin Zhejiang, China
Rated Current 40A, 12A, 16A, 200A, 250A, 100A, 32A
Brand Name ZHENGRONG
Model Number NH3XL
Use LOW VOLTAGE
Safety Standards IEC
Brand ZHENGRONG
Product name Photovoltaic System DC Fuse
Rated Voltage DC 1500V
Rated Current 500A
Certificate CE, CCC
Color White
Service ODM/OEM
Fuse Size Customized Size
Manufacturer History 40+years
Package Standard Package

Packaging and delivery

Selling Units: Single item
Single package size: 15X7X10 cm
Single gross weight: 0.500kg

Lead time

Quantity(pieces) 1-100 101-1000 1001-10000 >10000
Lead time(days) 31 35 40 To be negotiated

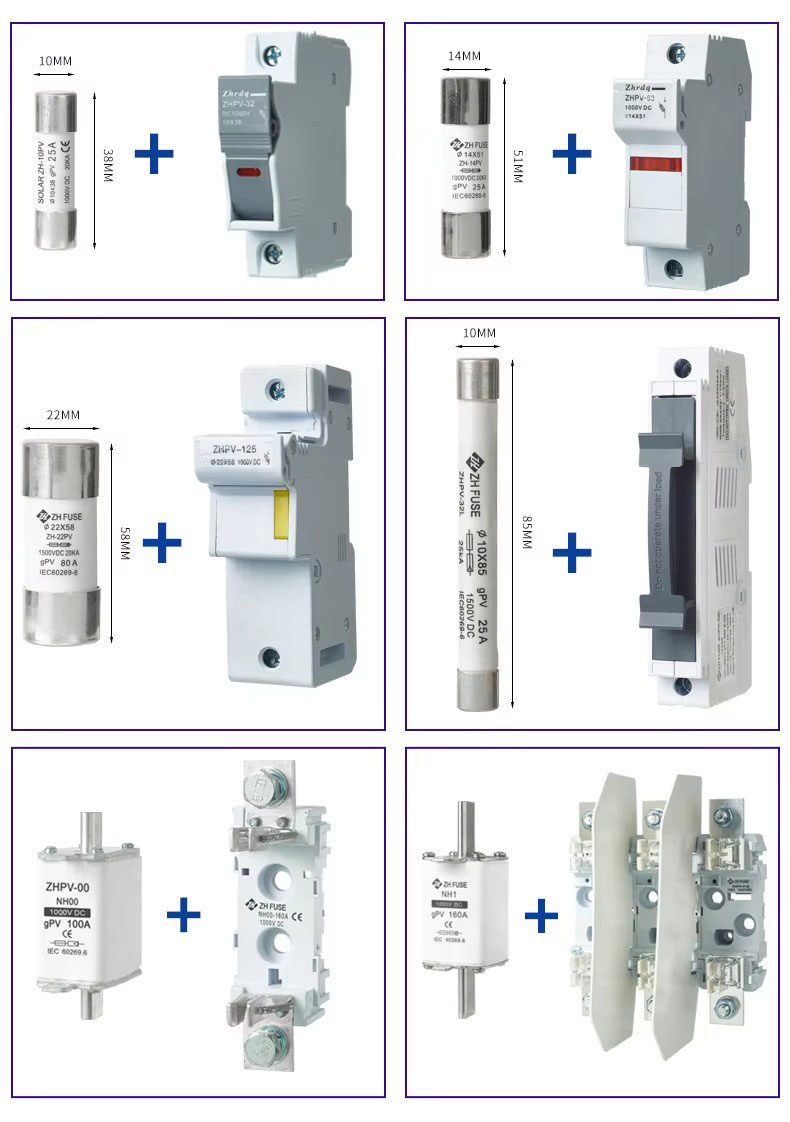

Products Display

500A gPV 1500VDC Fuse core500A gPV 1500VDC Fuse core500A gPV 1500VDC Fuse core500A gPV 1500VDC Fuse core500A gPV 1500VDC Fuse core

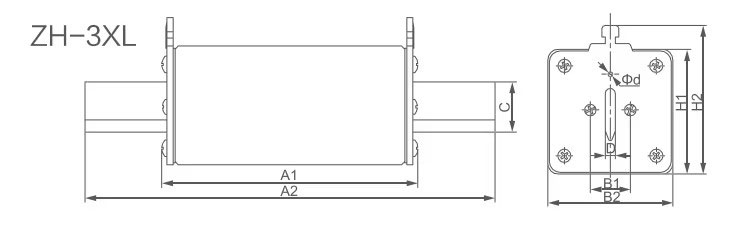

Specification

Model Dimension(mm)
A1 A2 B1 B2 C D Φd H1 H2
ZH-3XL 125 205 24 75 31.5 6 3 75 90

Certification

500A gPV 1500VDC Fuse core
