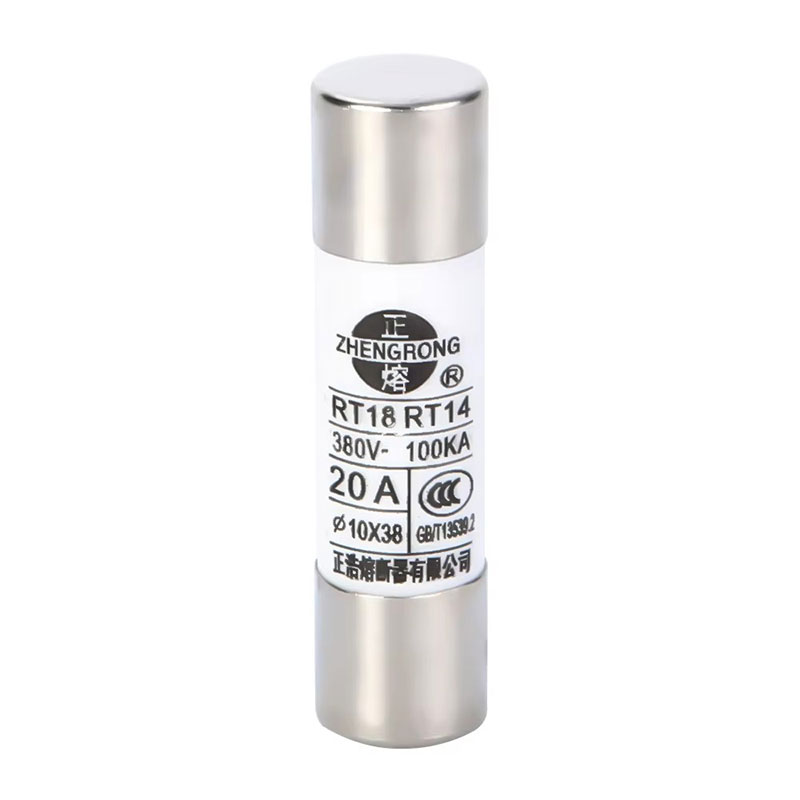

500V 20A Cylindrical AC Fuse
The 500V 20A Cylindrical AC Fuse is already the most commonly used fuse in the industrial field. Nowadays, electronic devices are becoming smaller and product components and circuits are more refined. Zhenghao fuses can be made into AI, aR, GG and other fuses for different purposes according to different applications. We use high-strength ceramic bodies and chemically treated quartz sand as arc extinguishing media to ensure reliability and small volume. Accurate protection methods, Zhenghao provides customers with different rated current options for 500V 20A Cylindrical AC Fuse to ensure precise protection and solve their worries.
Introduction
Cylindrical fuses are now very mature in technology. The 500V 20A Cylindrical AC Fuse designed by Zhenghao is loved by new and old customers both domestically and internationally. We strictly control every detail from production to quality.

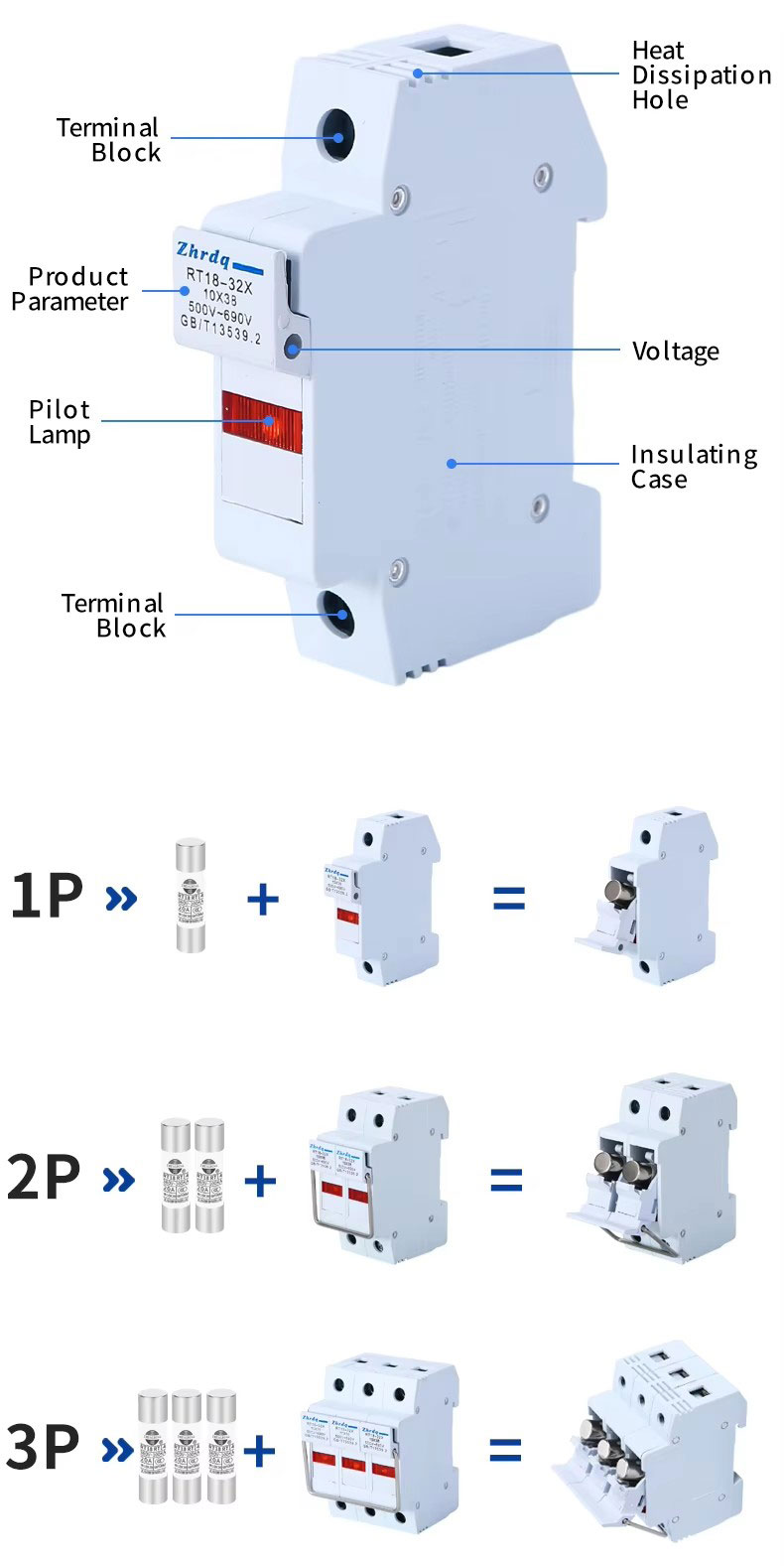

The 500V 20A Cylindrical AC Fuse consists of a fuse link and a seat, and is composed of a variable cross-section wire or fuse element, all encapsulated in a high-strength ceramic body, filled with chemically treated quartz sand as an arc extinguishing medium.
The 500V 20A Cylindrical AC Fuse has perfect high breaking capacity and excellent current cutoff characteristics, and low power consumption is the first choice for the vast majority of customers, complying with IEC and CCC standards. If you have any further questions or concerns, please contact us and we have professional personnel to answer them for you.
Features&Benefits
Small size
Easy to install
Reliable and stable
Widely used
Applications
Low voltage system
Industrial Automation
Transportation equipment
Solar power generation system
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | R016 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Cylindrical Fuse |
| Rated Voltage | AC 500V |
| Rated Current | 20A |
| Certificate | CE, CCC |
| Color | White/BLack |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 1.000kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |

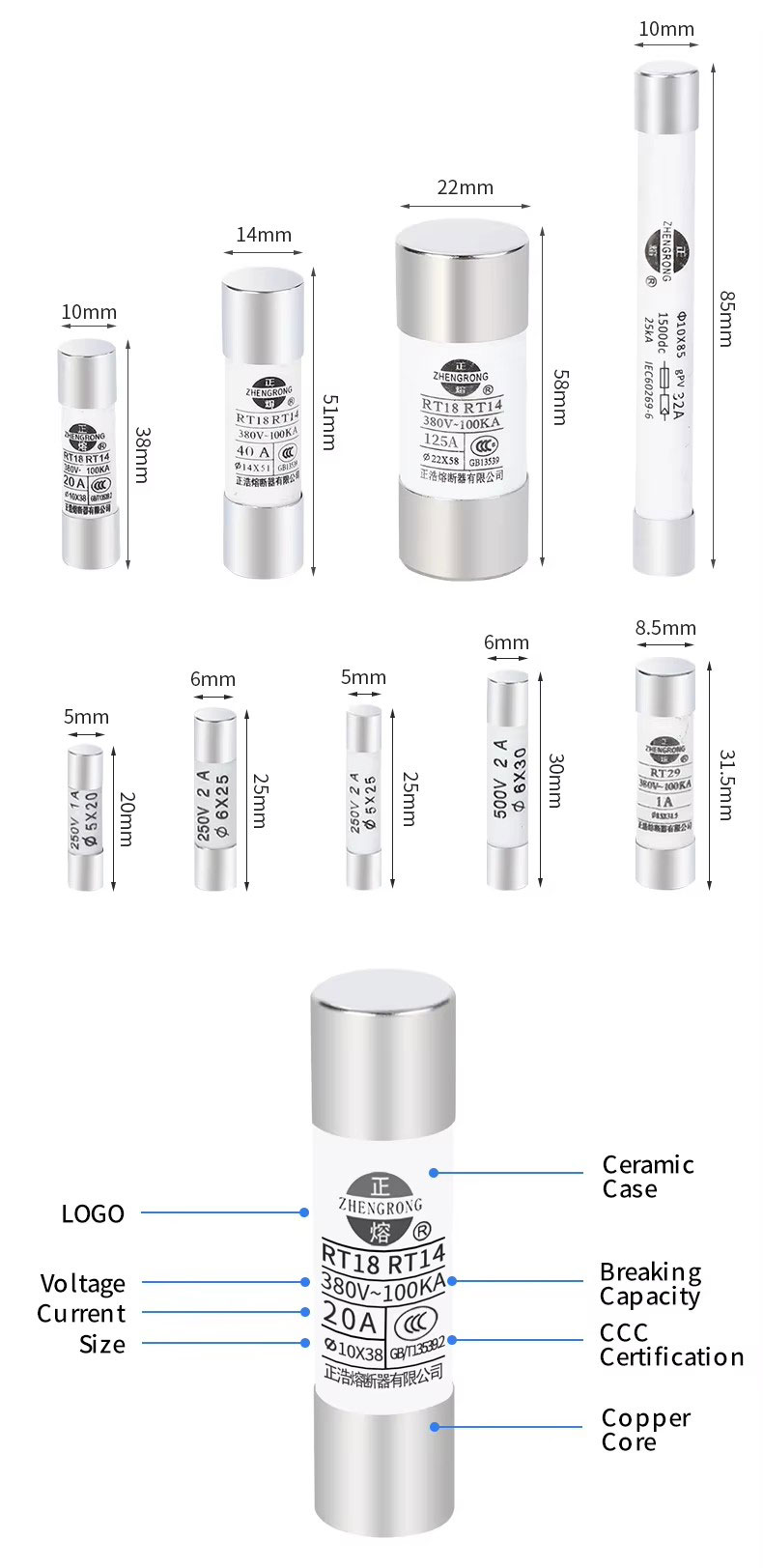

Products Display

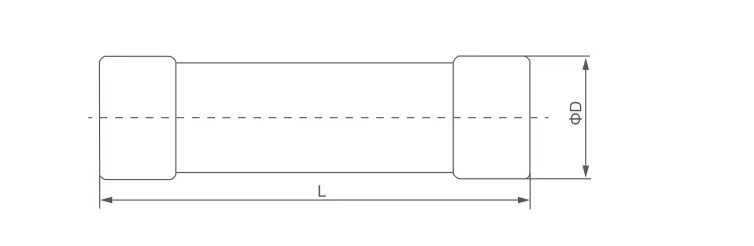

Specification
| Model | Dimension(mm) | ||
| Ordinary | Fast | ΦD | L |
| R054 | RS54 | Φ5 | 20 |
| R055 | RS55 | Φ5 | 25 |
| R057 | RS57 | Φ6 | 25 |
| R058 | RS58 | Φ6 | 30 |
| R014 | RS14 | Φ8.5 | 31.5 |
| R015 | RS15 | Φ10.3 | 38 |
| R016 | RS16 | Φ14 | 51 |
| R017 | RS17 | Φ22 | 58 |
| R018 | RS18 | Φ30 | 58 |
| R019 | RS19 | Φ20.5 | 76 |
Certification
