In the rapidly growing solar energy market, ensuring the safety and efficiency of photovoltaic (PV) systems is paramount. One key component that often gets overlooked is the photovoltaic fuse. In this article, we will explore the purpose, types, applications, and best practices for photovoltaic fuses, with insights from Zhejiang Zhenghao Fuse Co., Ltd., a leading manufacturer in the industry.
Table of Contents
1. Overview of Photovoltaic Fuses 2. Why Photovoltaic Fuses Are Crucial for Solar Systems 3. Types of Photovoltaic Fuses 4. How to Select the Right Photovoltaic Fuse 5. Installation Guidelines 6. Maintenance and Troubleshooting 7. Advantages of High-Quality PV Fuses 8. Frequently Asked Questions 9. Conclusion & Contact Information
1. Overview of Photovoltaic Fuses

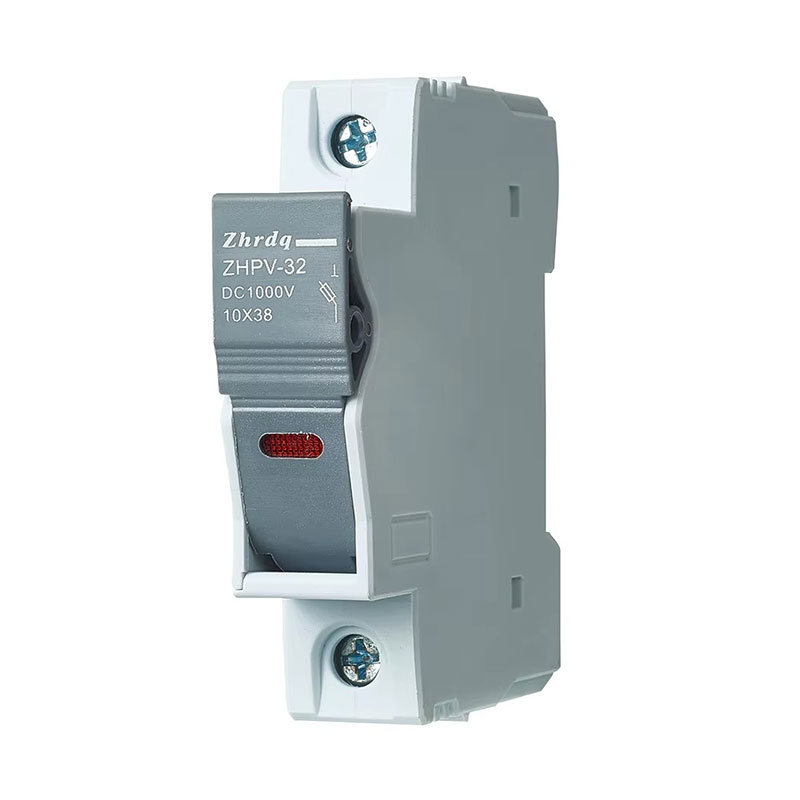

A photovoltaic fuse is a protective device specifically designed for solar power systems. Its primary function is to prevent overcurrent, short circuits, and electrical fires that can occur due to system faults. Unlike standard electrical fuses, PV fuses are engineered to handle the unique conditions of solar systems, such as DC current, high voltage, and environmental exposure.
Zhejiang Zhenghao Fuse Co., Ltd. produces a wide range of PV fuses that meet international safety standards and offer reliable performance in harsh environments.
| Feature | Description |
|---|---|
| Rated Voltage | Designed to withstand up to 1500V DC in PV systems |
| Rated Current | Available from 2A to 30A to suit different string configurations |
| Breaking Capacity | High interruption capability to prevent damage from short circuits |
| Operating Temperature | -40°C to +85°C for outdoor reliability |
2. Why Photovoltaic Fuses Are Crucial for Solar Systems
Photovoltaic fuses play a critical role in ensuring the safety, efficiency, and longevity of solar power installations. Some of the main reasons include:
- Protection from Overcurrent: PV strings can experience sudden surges of current, and fuses prevent damage to modules and inverters.
- Preventing Fire Hazards: Overcurrent or short circuits can generate heat, causing fires if not mitigated.
- System Reliability: A properly rated fuse ensures uninterrupted energy production by isolating faulty circuits.
- Compliance with Standards: Many local and international regulations require PV fuses for system certification.
Zhejiang Zhenghao Fuse Co., Ltd. emphasizes that integrating the right fuses reduces system downtime and maintenance costs significantly.
3. Types of Photovoltaic Fuses
PV fuses come in different types depending on application and system voltage:
- Class CC Fuses: Compact and ideal for smaller residential systems.
- NH Fuses: Used in industrial PV installations with higher current ratings.
- PV-Rated Blade Fuses: Designed for string-level protection in rooftop systems.
- Fast-Acting vs Time-Delay Fuses: Fast-acting fuses protect sensitive electronics, while time-delay fuses handle temporary surges without tripping.
| Type | Application | Key Advantage |
|---|---|---|
| Class CC | Residential PV strings | Compact size, easy replacement |
| NH | Industrial PV systems | High breaking capacity |
| Blade | Rooftop systems | Quick installation and removal |
| Time-Delay | Surge-prone circuits | Handles temporary overcurrent without nuisance trips |
4. How to Select the Right Photovoltaic Fuse
Choosing the correct PV fuse is crucial to system performance. Here are key factors:
- System Voltage: Ensure the fuse rating matches or exceeds your PV system voltage.
- Current Rating: Calculate the maximum string current and select a fuse slightly higher than this value.
- Breaking Capacity: Confirm the fuse can interrupt potential short-circuit currents.
- Environmental Conditions: Outdoor systems require fuses resistant to UV, temperature extremes, and humidity.
Zhejiang Zhenghao Fuse Co., Ltd. provides consultation services to help customers select the most suitable fuses for their solar projects.
5. Installation Guidelines
Proper installation ensures optimal fuse performance:
- Turn off all PV system power before fuse installation.
- Install the fuse in a dedicated fuse holder that matches the fuse type.
- Ensure proper polarity alignment if required for DC fuses.
- Check for tight connections to prevent overheating or arcing.
- Label fuse holders clearly to simplify future maintenance.
Following these guidelines reduces downtime and improves safety. Zhejiang Zhenghao Fuse Co., Ltd. offers high-quality fuse holders compatible with their PV fuses.
6. Maintenance and Troubleshooting
Routine maintenance of PV fuses ensures long-term reliability:
- Regularly inspect fuses for discoloration or melted elements.
- Test continuity with a multimeter to confirm fuse integrity.
- Replace blown fuses promptly to prevent string imbalance.
- Document replacements to track system performance and identify recurring issues.
Proper maintenance prevents unexpected power outages and extends the lifespan of PV systems.
7. Advantages of High-Quality PV Fuses
Investing in reliable fuses from reputable manufacturers offers several benefits:
- Enhanced Safety: Reduces risk of fire and equipment damage.
- Longevity: High-quality fuses withstand environmental stress and repeated current surges.
- Cost Efficiency: Minimizes maintenance and replacement frequency.
- Compliance: Meets industry standards and regulations for PV systems.
Zhejiang Zhenghao Fuse Co., Ltd. specializes in producing robust PV fuses that deliver these advantages consistently.
8. Frequently Asked Questions
Q1: Can I use a standard electrical fuse for my solar system?
No, standard fuses are not rated for DC voltage or the specific conditions in PV systems. Using them can result in system failure or safety hazards.
Q2: How do I know if a fuse has blown in my PV system?
Blown fuses may show visible signs like blackening or melted elements. Testing with a multimeter can confirm if the fuse is open.
Q3: How often should PV fuses be inspected?
It is recommended to inspect fuses at least twice a year, and after any unusual events like lightning strikes or overcurrent incidents.
Q4: Are there fuses for high-voltage PV systems?
Yes, fuses are available for systems up to 1500V DC, suitable for large commercial or industrial solar installations.
Q5: Where can I buy reliable photovoltaic fuses?
Reputable suppliers like Zhejiang Zhenghao Fuse Co., Ltd. provide a wide range of PV fuses certified for safety and durability.
9. Conclusion & Contact Information
Photovoltaic fuses are indispensable for protecting solar power systems from overcurrent, fire hazards, and operational failures. By selecting high-quality fuses, installing them properly, and maintaining them regularly, you ensure the efficiency and safety of your PV system.
Zhejiang Zhenghao Fuse Co., Ltd. has decades of experience in producing durable, reliable photovoltaic fuses for residential, commercial, and industrial solar projects. Their products are engineered to meet rigorous standards, providing peace of mind and enhanced system performance. Ready to secure your solar system with top-quality photovoltaic fuses? Contact us today for consultation and orders!
