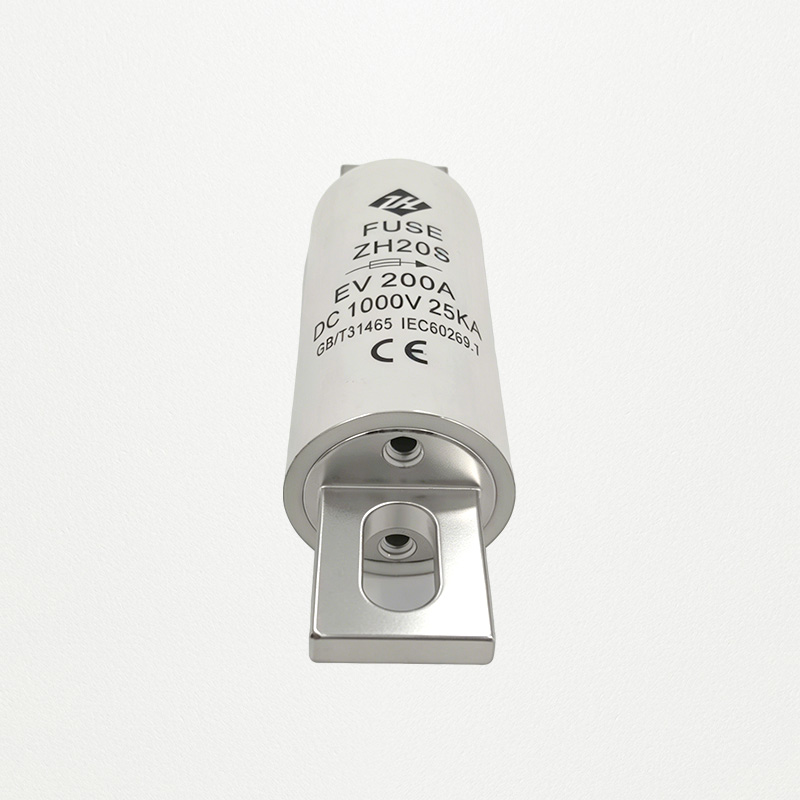

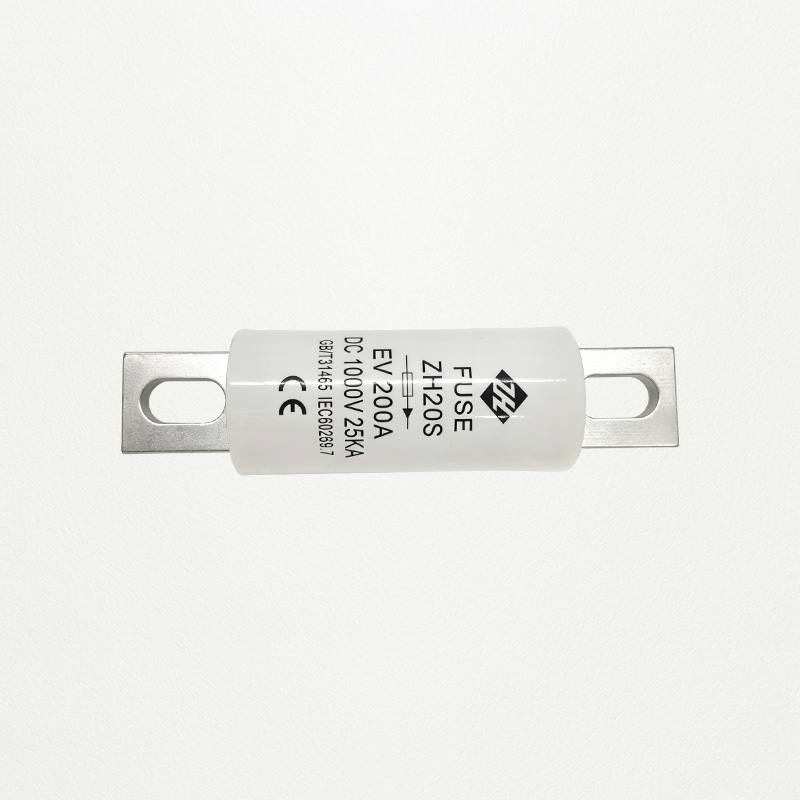

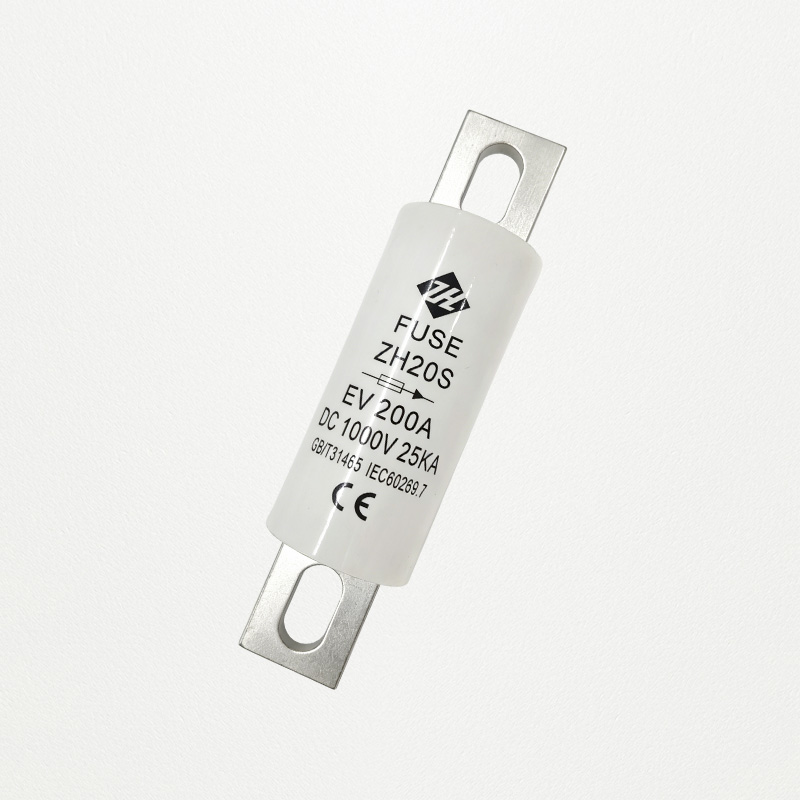

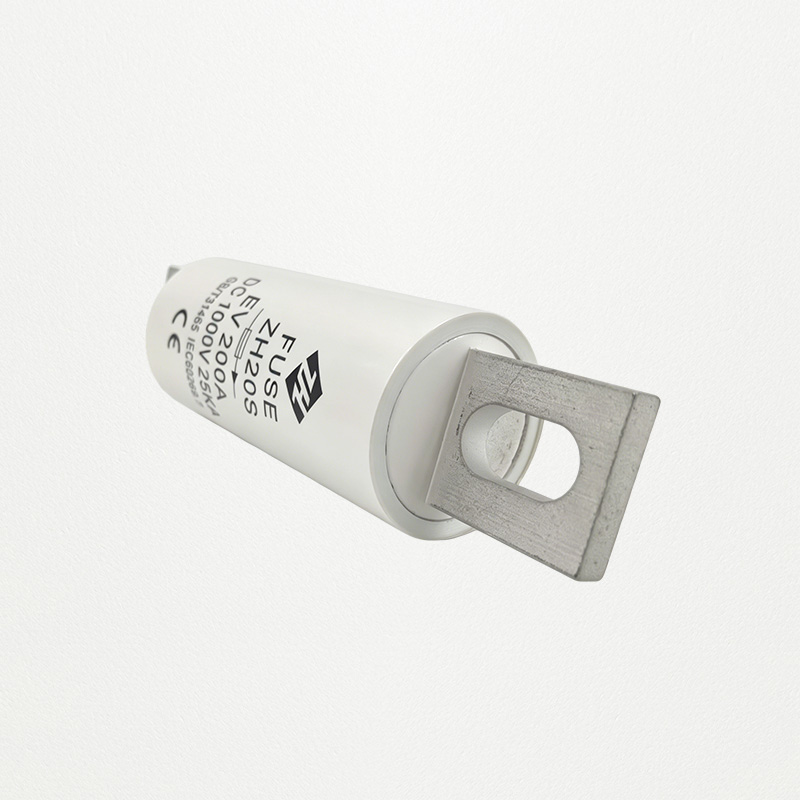

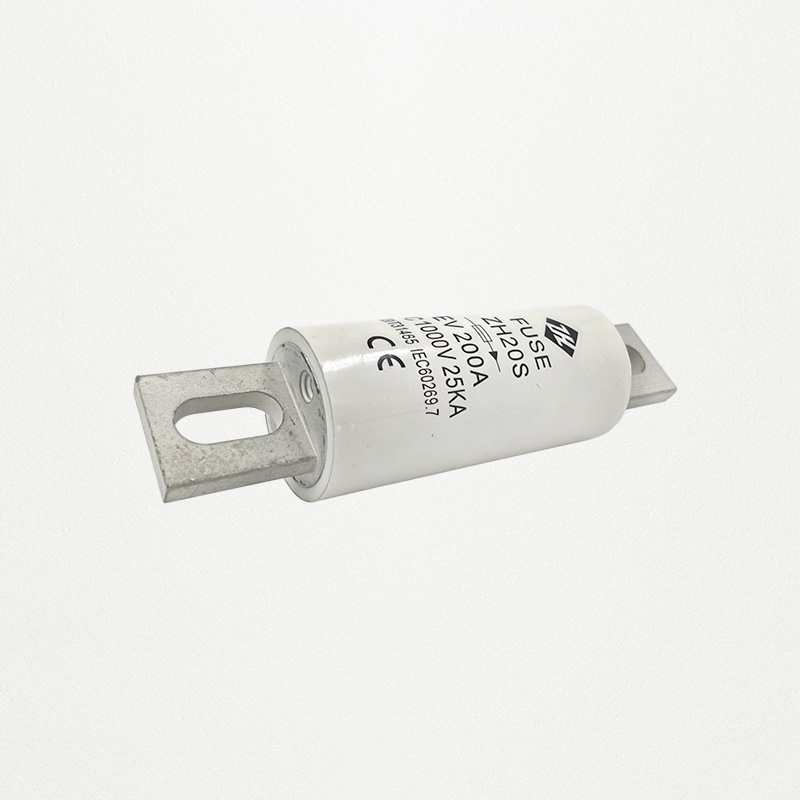

EV DC Fuse 200A 1000V (ZH20S) | 25kA Breaking Capacity | IEC60269 Certified

High-Quality Construction: This auto bolt fuse for car boasts a ceramic body, ensuring durability and reliability in withstanding extreme electrical conditions.

IEC Standard Compliance: The product adheres to the International Electrotechnical Commission (IEC) standards, guaranteeing safety and performance in various applications.

Multi-Rated Current Options: Available in 200A, 300A, 500A, and 800A ratings, this fuse accommodates diverse user needs, including those specified by the customer.

High Breaking Capacity: With a breaking capacity of 50ka, this fuse effectively protects electrical systems from excessive current surges, providing a high level of safety and security.

Reliable Operation: Designed with an operating class of AR, this auto bolt fuse ensures stable and consistent performance in low-voltage applications, meeting the expectations of discerning users.

Selling point

High specification electrical protection: DC 1000V/100A/25kA ultra strong breaking capacity, millisecond level short-circuit current cut-off, precise suppression of arc propagation, comprehensive coverage of new energy vehicle high-voltage platforms, can still protect circuit safety under extreme working conditions, and build the first line of defense for power batteries and high-voltage systems.

Vehicle grade reliable structure: The blade shaped cylindrical standardized design is easy to install and has strong adaptability. The ceramic shell is matched with high-performance arc extinguishing materials, which are resistant to high temperature, vibration, and high and low temperature, perfectly responding to complex environments such as vehicle bumps and temperature fluctuations, and operating stably throughout the entire life cycle.

Efficient energy saving and long lifespan: Low power design reduces circuit losses, improves energy utilization efficiency, and helps extend battery life; Anti aging and fatigue resistant materials, ensure the service life of the whole vehicle, reduce after-sales maintenance costs, and achieve a double balance between safety and economy.

Features

High DC rating: 400A, 1000V DC, suitable for high-voltage new energy systems

25kA high breaking capacity, quickly cuts off short-circuit faults to ensure system safety

Complies with IEC60269 and GB/T31465 standards, with CE certification

Bolt-mounted cylindrical structure for stable connection and strong anti-vibration performance

Fast response to fault current, high reliability and long service life

Widely compatible with electric vehicles, energy storage and photovoltaic DC systems

New Energy Vehicles: battery packs, motor controllers, high-voltage distribution units

Energy Storage Systems (ESS): lithium battery energy storage cabinets, DC microgrids

Photovoltaic Systems: DC side protection for solar panels and inverters

EV Charging Stations: high-power DC charging equipment

Industrial DC power supply, power distribution and electrical protection equipment
