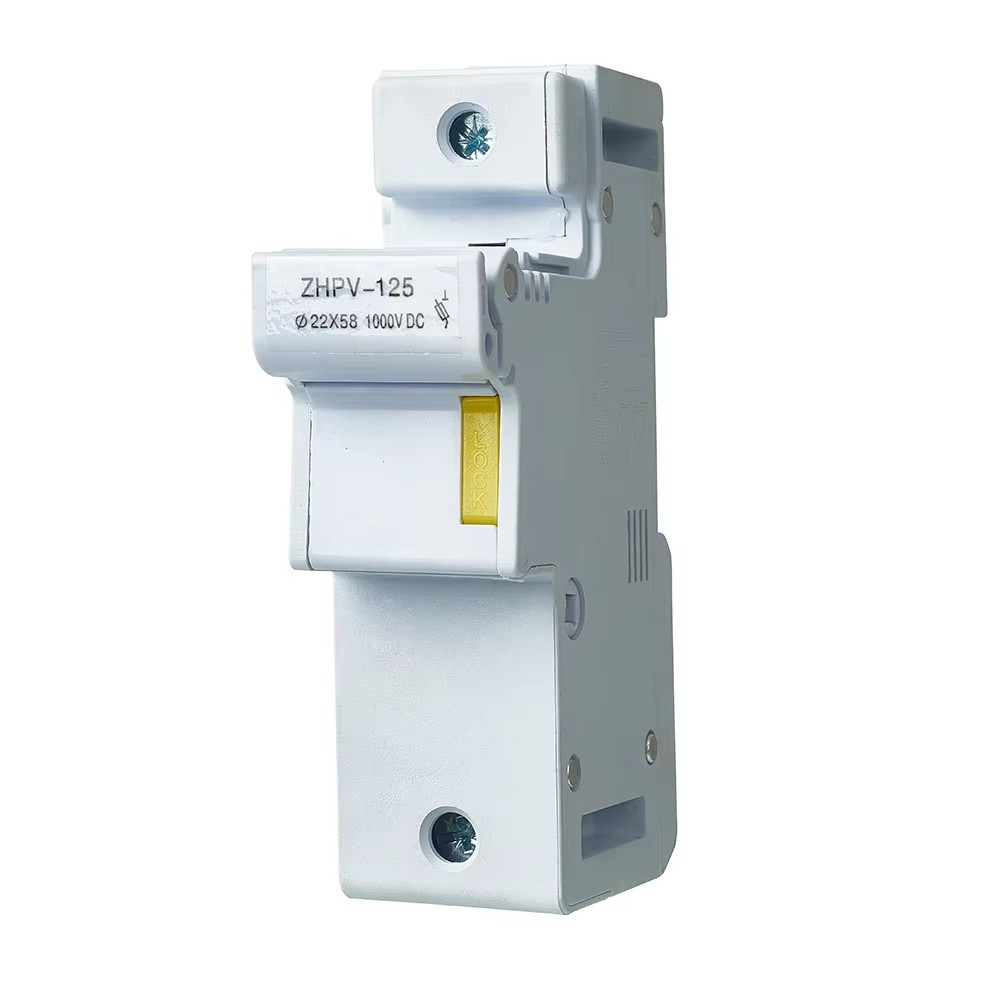

ZHPV-125 1000V DC Fuse Base
Model:ZHPV-125 1000V DC Fuse Base
The 22 × 58 photovoltaic fuse base of ZHPV-125 1000V DC Fuse Base is used for installing photovoltaic fuses in equipment, usually used in solar systems, with dimensions of 22mm × 58mm. ZHPV-125 1000V DC Fuse Base is suitable for standard photovoltaic fuses, which are usually made of high-temperature resistant materials and can withstand working conditions in high-temperature environments. It has good weather resistance and corrosion resistance, ensuring long-term stable operation in outdoor environments.
Product Introduction
Description
The structural characteristics of the 1P ZHPV-125 1000VDC Fuse Base and Fuse links 22 × 58mm cylindrical ceramic fuse bottom in the photovoltaic system are as follows. This series of fuses consists of a fuse link and a fuse holder. The variable cross-section fuse body made of pure copper sheet (or copper wire, silver wire, silver sheet) is sealed in a fuse tube made of high-strength ceramic or epoxy glass cloth tube, filled with chemically treated high-purity quartz sand as an arc extinguishing medium. The two sides of the fuse core are reliably connected to the end plate through spot welding, forming a cylindrical cap shaped structure. The ZHPV-125 1000VDC Fuse Base is made of resin or plastic shell pressed with electric shock, including a fuse element, which is connected by riveting as a support for the appropriate size fuse body component. This series of fuses has the advantages of small volume, easy installation, safe use, and beautiful appearance.
Features&Benefits
IEC60269 standard/GB 13539
With locking clasp for safety and security
Application
ZHPV-125 1000VDC Fuse Base is commonly used for circuit protection in industrial and commercial applications.
|
Breaking Capacity |
High |
Place Origin |
Zhejiang,China |
|
Brand Name |
ZHENGRONG |
Model Number |
ZHPV-125 |
|
Safety Standards |
IEC |
Brand |
ZHENGRONG |
|
Product name |
Photovoltaic System DC Fuse |
Rated Voltage |
DC 1000V |
|
Rated Current |
125A |
Certificate |
CE,CCC |
|
Color |
Customized Color |
Service |
ODM/OEM |
|
Fuse Size |
Customized Color |
Manufacturer History |
40+years |
|
Package |
Standard Package |
|
Selling Units |
Single item |
Single package size |
15×7×10cm |
|
Single gross weight |
1.000KG |
|
Quantity (pieces) |
1-100 |
101-1000 |
1001-10000 |
>10000 |
|
Lead time(days) |
31 |
35 |
40 |
To be negotiated |

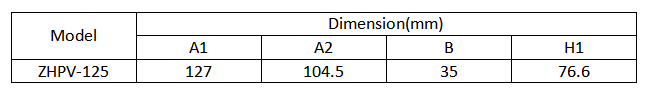

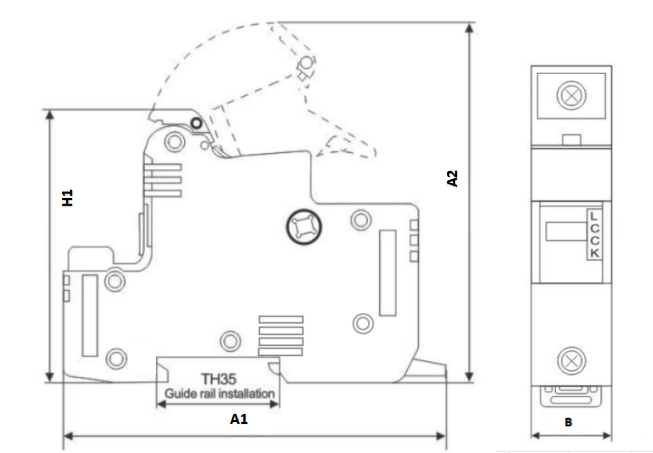

Specification
Certification
