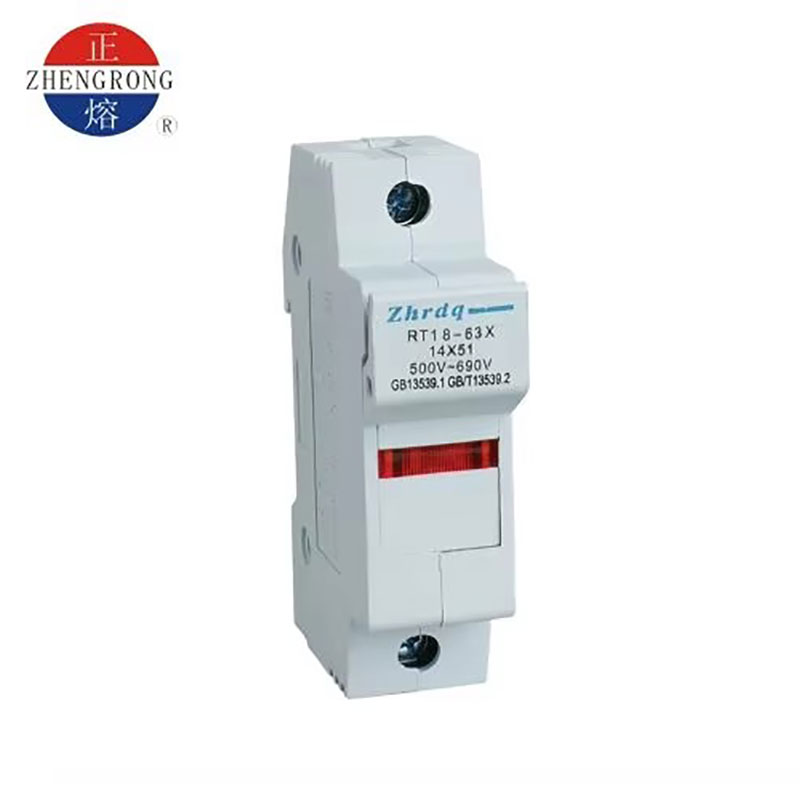

14×51 AC Fuse Holder
After visiting and consulting, we designed a 14×51 AC fuse holder that is suitable for domestic and international applications. The RT18-63X 14 × 51 AC fuse holder complies with IEC requirements 60269 and GB/T13539.1 and GB/T13539.2 standards. Most configurations of the 14 × 51 AC fuse holder are excellent. Optional LED, suitable for household and industrial modular fuse disconnect indicator light bracket. The 14 × 51 AC fuse holder is equipped with a micro switch operation fuse indicator light. We believe that high-quality products are your best choice.
Introduction

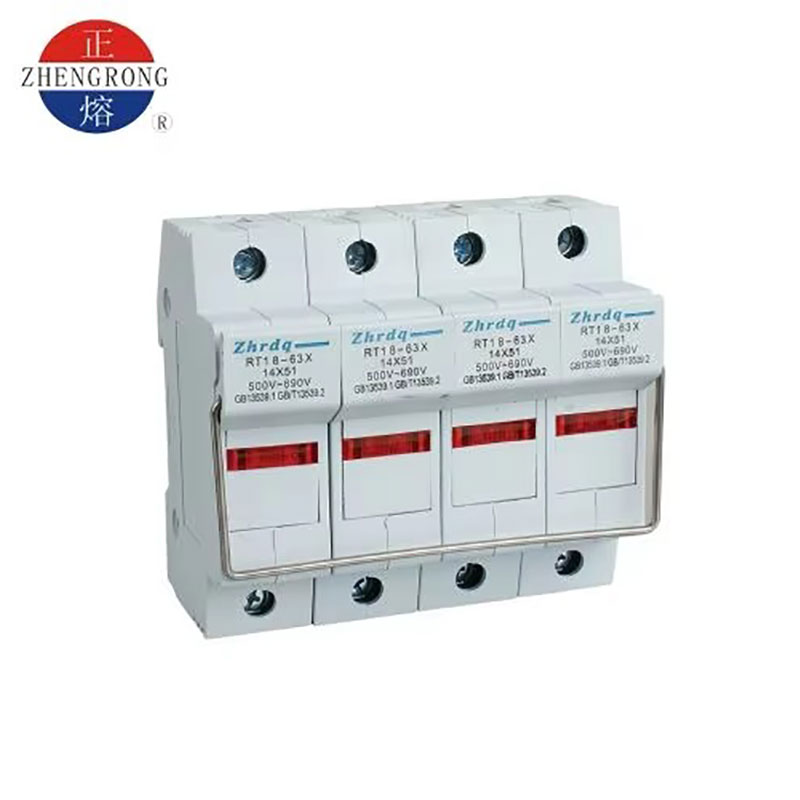

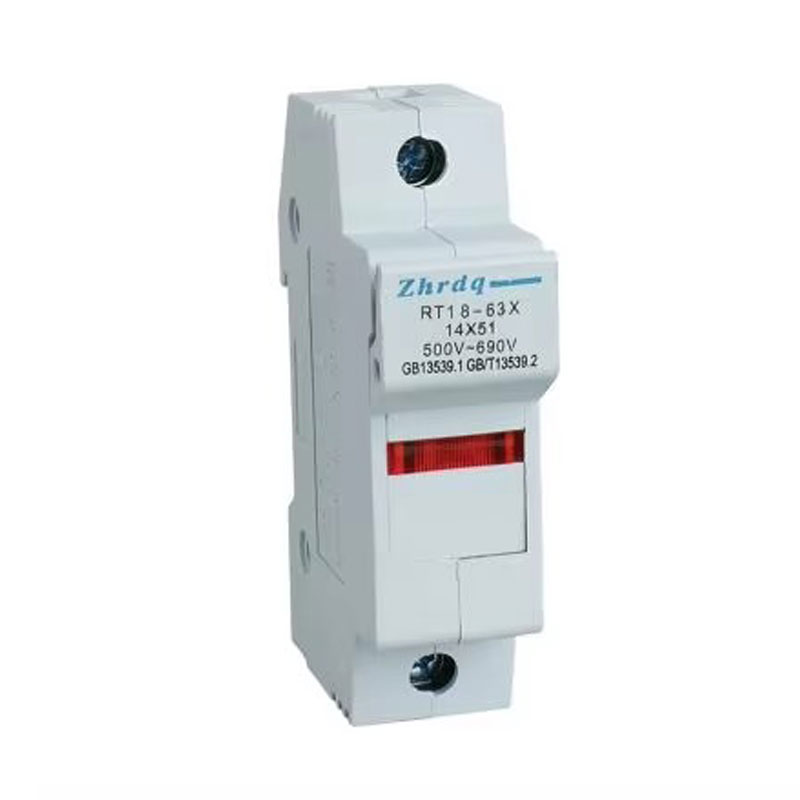

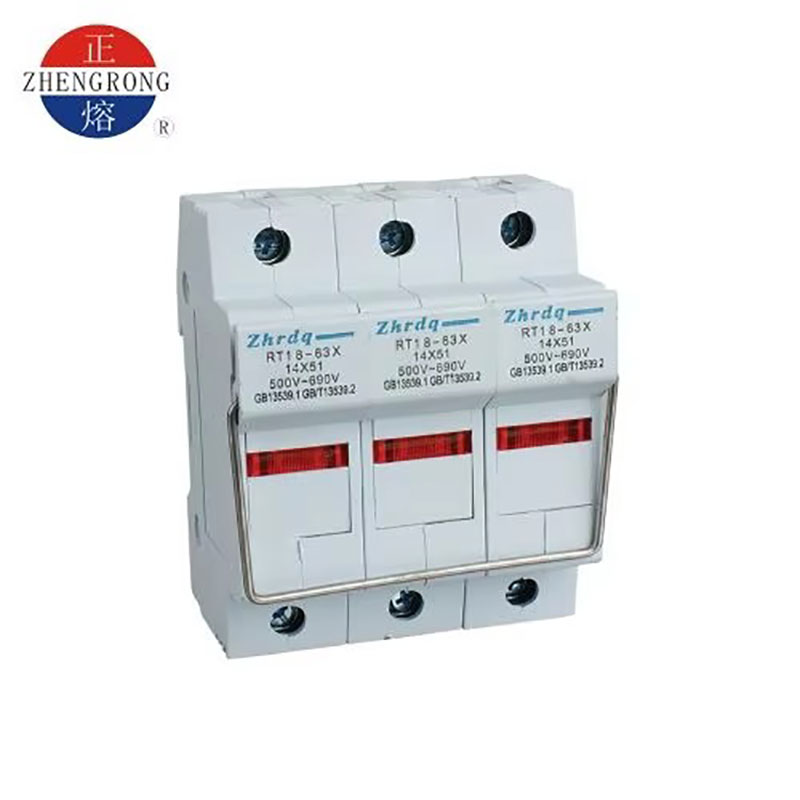

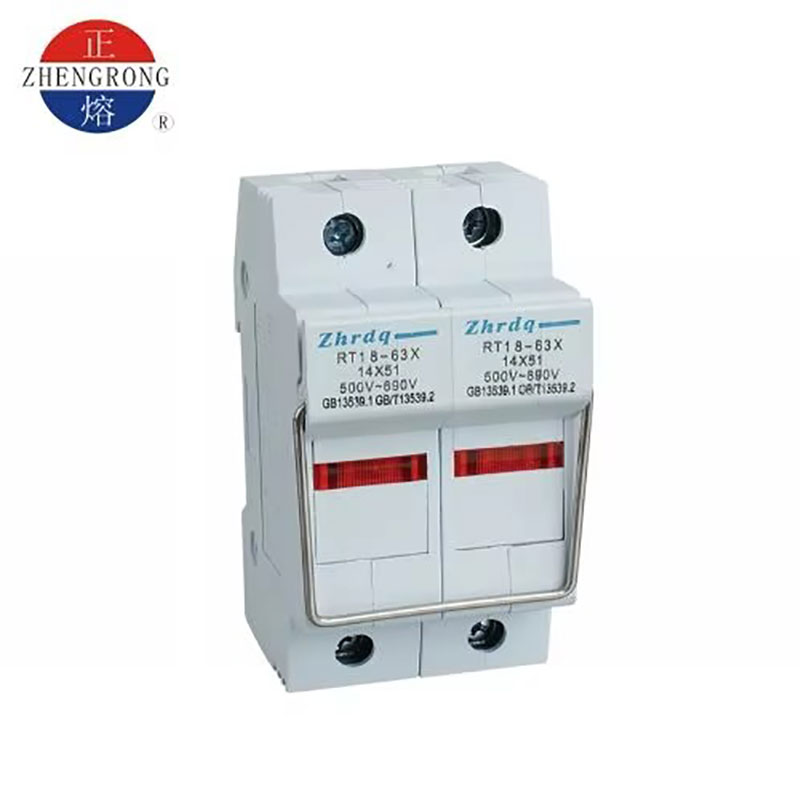

Thank you very much for clicking in to learn about our high breaking RT18-32 14 × 51 AC fuse holder. It is well made and has excellent performance, providing multiple configuration options. As a leading domestic enterprise, Zhenghao Fuse has a wide range of products, including the multifunctional 1P, 2P, 3P, and 4P of the 14 × 51 AC fuse holder, which can be customized according to your needs.
Features&Benefits
Easy to install
IEC60269 standard
Applications
General electrical circuit
Automotive Vehicle
Overload protection
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | RT18-63X1P/2P/3P/4P |
| Use | LOW VOLTAGE |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Rated Voltage | AC 500V-690V |
| Rated Current | 1A~63A |
| Certificate | CE, CCC |
| Color | White/Blue white/Grey white |
| Service | ODM/OEM |
| Manufacturer History | 30+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 1.000kg |
Lead time
| Quantity(pieces) | 1-20 | 21-100 | 101-1000 | >1000 |
| Lead time(days) | 7 | 10 | 15 | To be negotiated |

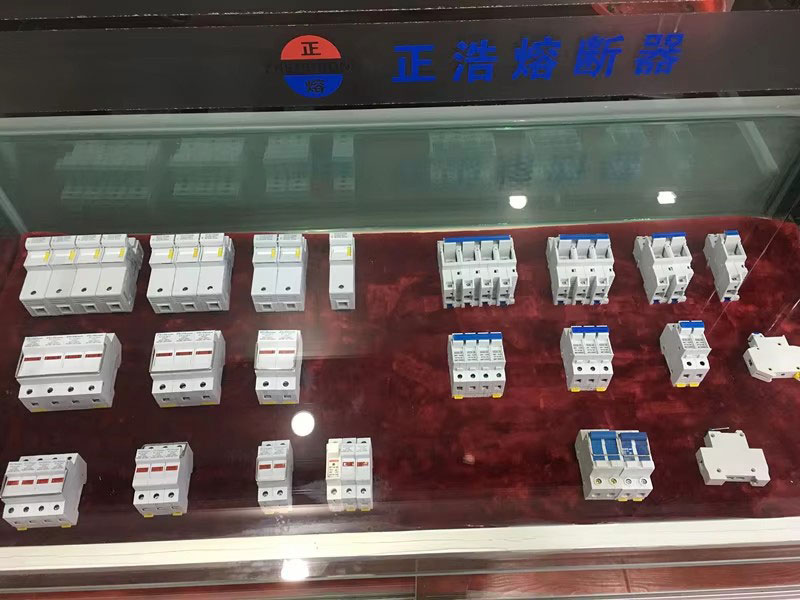

Products Display

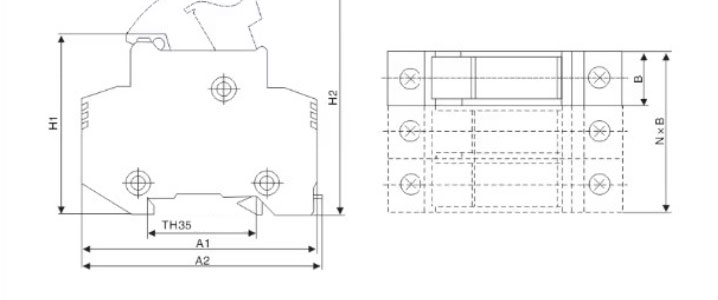

Specification
| Model | Equipped with fuse Size | Rated in sulation voltage | Conventional thermal current | Dimension(mm) | ||||
| A1 | A2 | B | H1 | H2 | ||||
| RT18-32 | 10x38 | 500/690 | 32 | 79 | 81 | 17 | 61 | 80 |

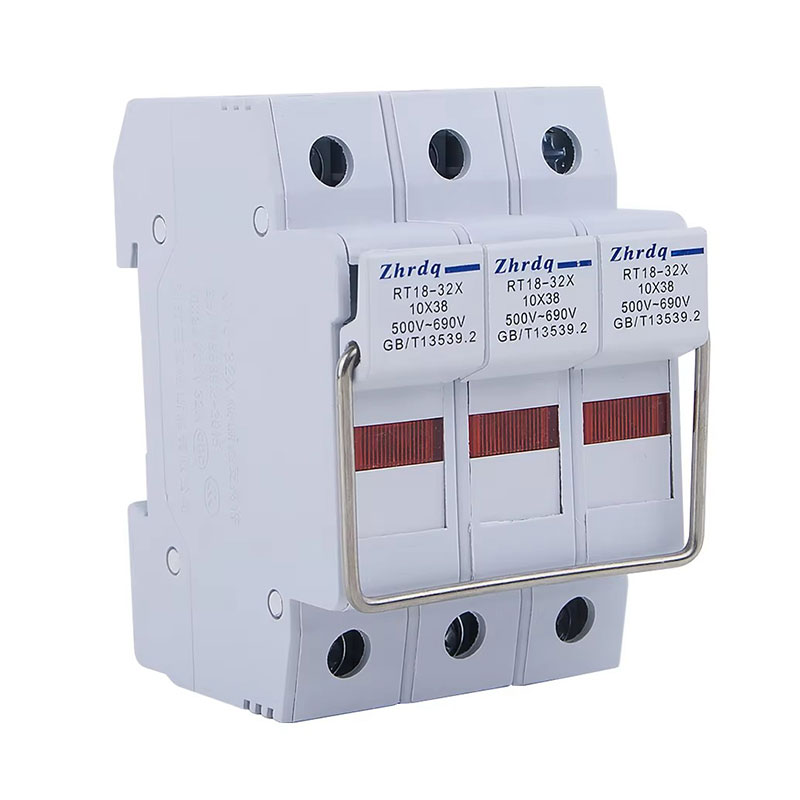

| RT18-32-X | 10x38 | 500/690 | 32 | 78 | 80 | 18 | 62 | 79 |
| RT18-63 | 14x51 | 500/690 | 63 | 102 | 105 | 26 | 75 | 105 |
| RT18-63X | 14x51 | 500/690 | 63 | 97 | 98 | 27 | 67 | 93 |
| RT18-125 | 22x58 | 500/690 | 125 | 127 | 129 | 35 | 76 | 104 |
| HG30-32 | 10x38 | 500/690 | 32 | 77 | 78 | 17.5 | 73 | 88 |
Certification
