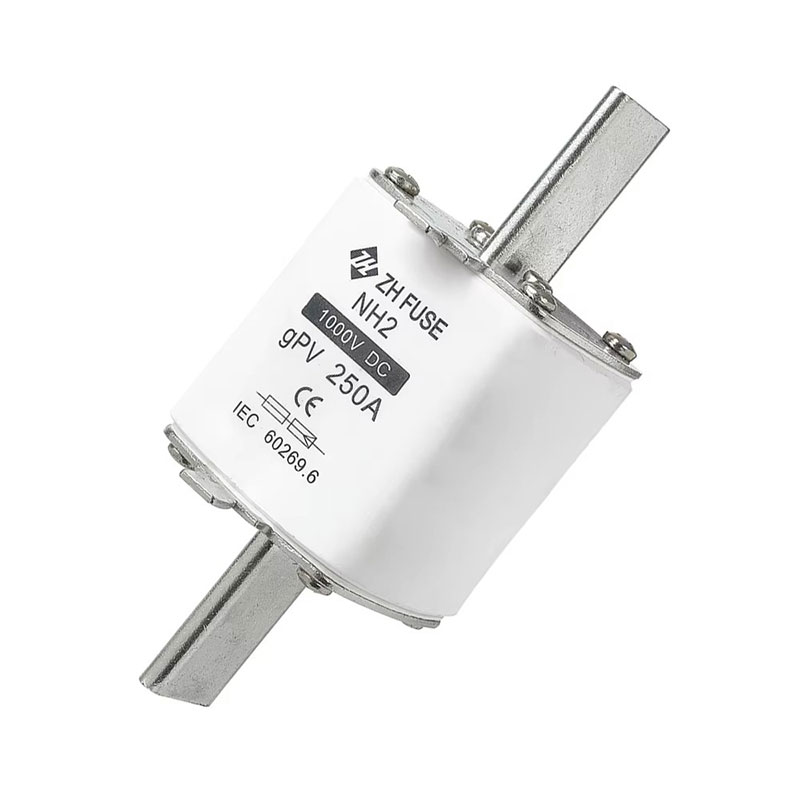

1000VDC gPV 250A Fuse core
The working principle of the 1000VDC gPV 250A Fuse core is that when the current in the system exceeds the set value, the metal wires in the fuse will melt and disconnect due to excessive current. The 1000VDC gPV 250A Fuse core will promptly cut off the circuit to prevent current from continuing to flow and damaging other components. The photovoltaic power generation system adopts DC output, and once short circuited, it may generate high current, which is extremely dangerous for the safety of other equipment. The fuse protection function of photovoltaic fuses can timely cut off abnormal currents and play a role in safe circuit breaking.
Introduction
We are proud to launch this 1000VDC gPV 250A Fuse core series, and believe that our products will bring you significant benefits. We also believe that the 1000VDC gPV 250A Fuse core can meet your needs, providing reliable and effective protection for electrical systems, ensuring their optimal operation. We only recommend suitable products, not expensive products. Zhenghao Fuse is your best choice.
Features&Benefits
● Safety
● Stable
● Globally compliant
● Meets IEC60269 standard for global acceptance
● Low power dissipation design for high for energy efficiency
Application
1000VDC gPV 250A Fuse core is mainly used in photovoltaic power generation systems. It can also be applied to household photovoltaic power generation systems.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Rated Current | 40, 12A, 16A, 32A, 100A, 200A, 250A |
| Brand Name | ZHENGRONG |
| Model Number | NH2 |
| Use | LOW VOLTAGE |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Photovoltaic System DC Fuse |
| Rated Voltage | DC 1000V |
| Rated Current | 250A |
| Certificate | CE, CCC |
| Color | White/BLack |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 1.000kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |

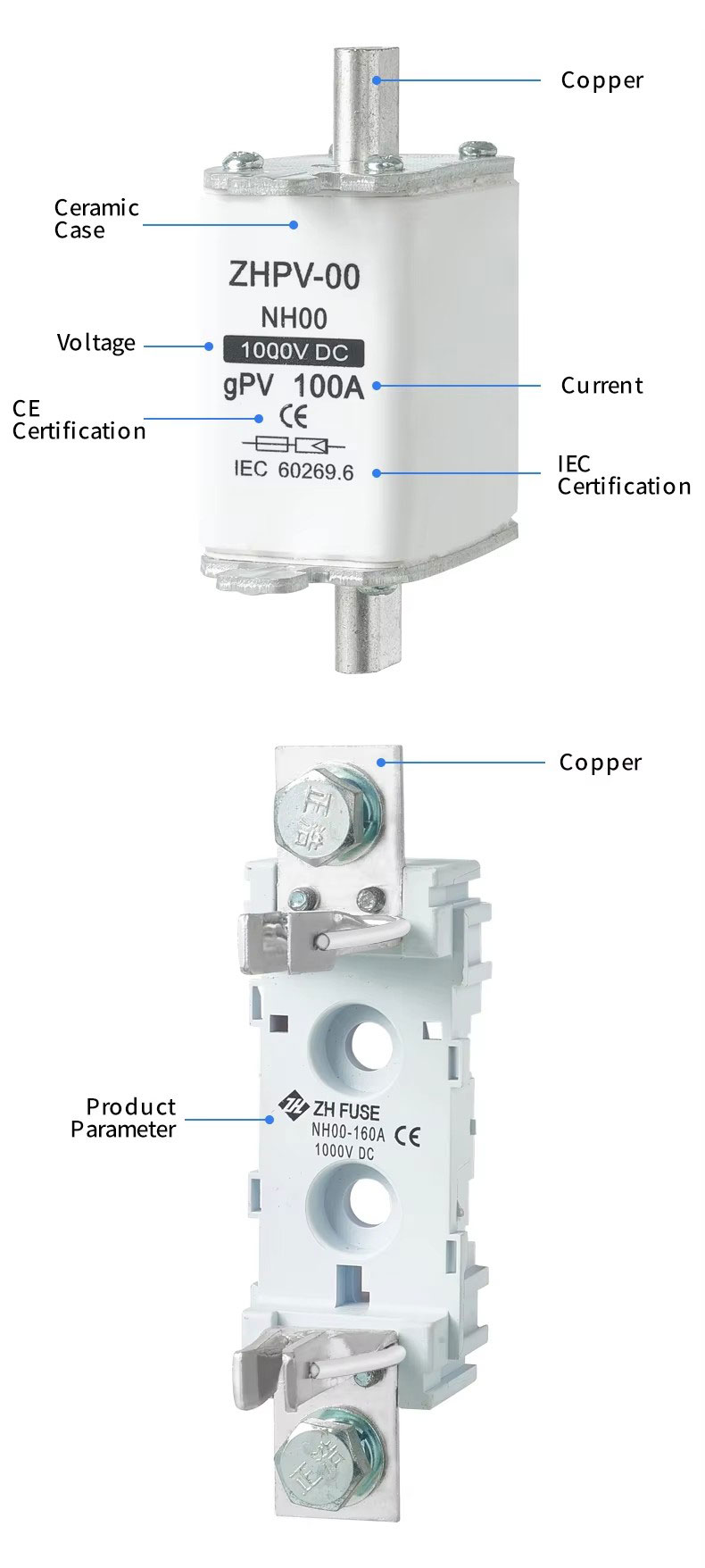

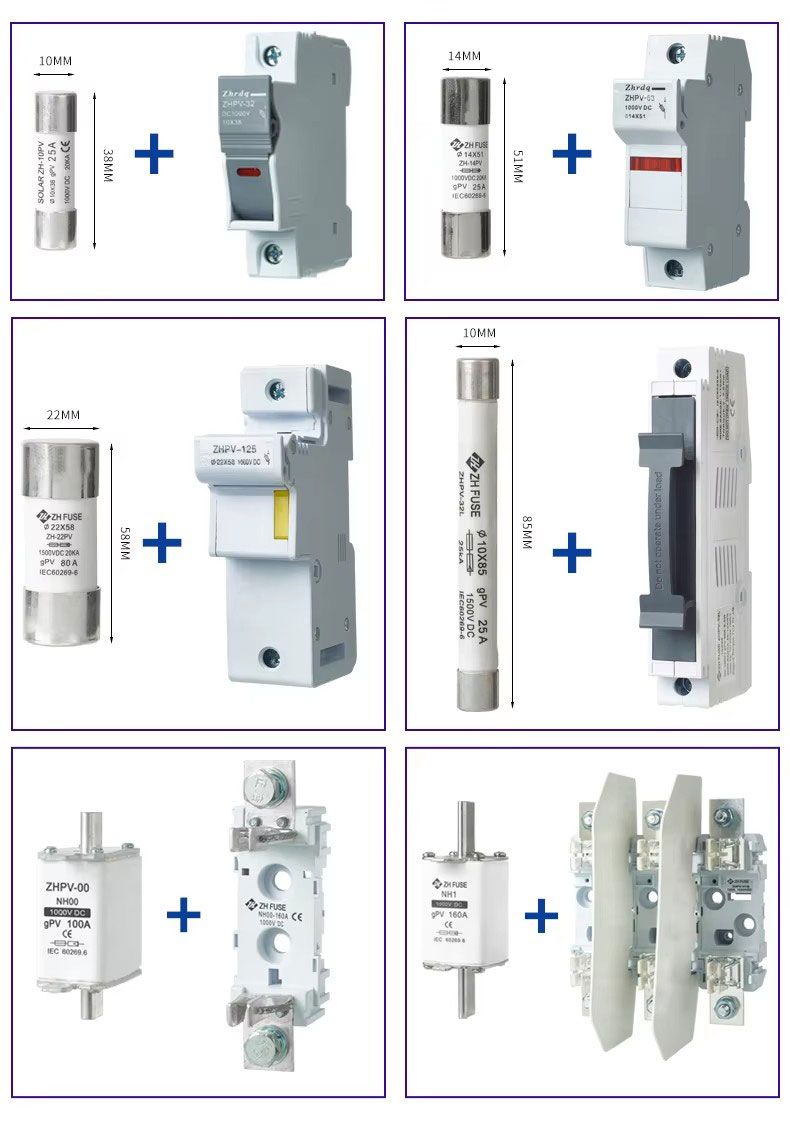

Products Display

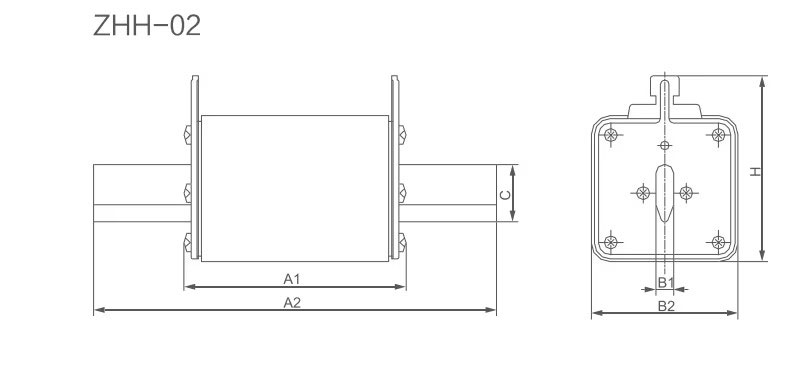

Specification
| Model | Dimension(mm) | |||||
| A1 | A2 | B1 | B2 | C | H | |
| NH2 | 74 | 150 | 6 | 60 | 25 | 75 |
Certification
