24-Port Gigabit Ethernet Surge Protector

Our 24-port Ethernet surge protector is engineered to defend high-density network systems against transient overvoltages caused by lightning induction, electrostatic discharge, and grid switching operations. It features an intelligent surge clamping design that quickly diverts harmful surge currents to the ground, limiting residual voltage to a safe level, while maintaining Gigabit-speed data transmission with minimal signal loss.

Housed in a rugged, heat-dissipating metal enclosure, this device is built for durability in harsh industrial and commercial environments. It supports 24 independent RJ45 ports, enabling centralized protection for a large number of network devices, significantly reducing installation complexity and cost. The standard grounding terminal ensures easy integration with existing lightning protection systems, making it a core component for reliable network operation in large-scale surveillance, data centers, and enterprise network scenarios.

Key Features

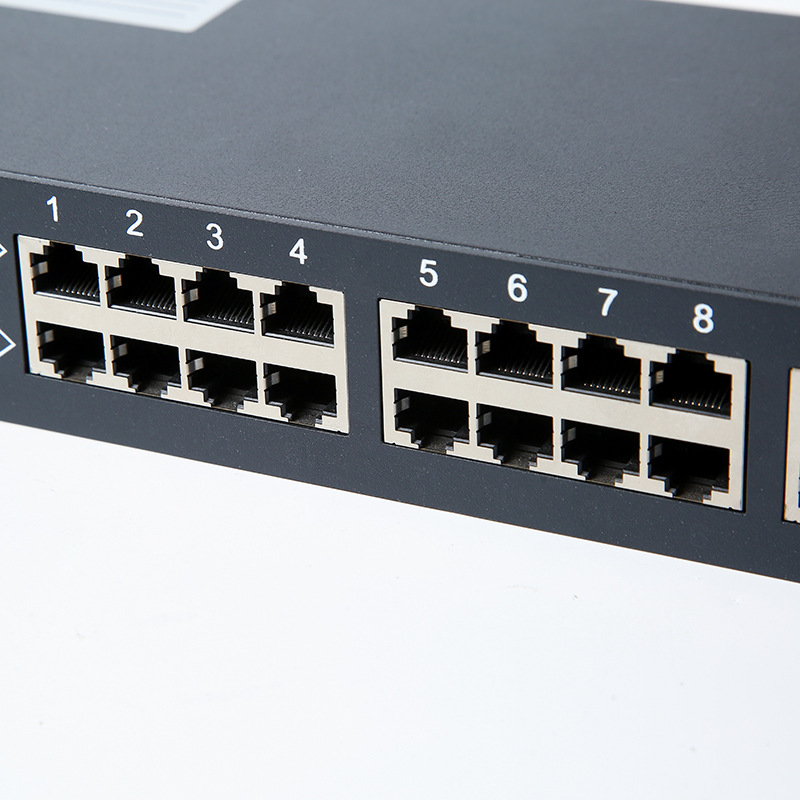

· 24-Port Centralized Protection: Integrates 24 independent RJ45 interfaces, enabling simultaneous surge protection for a large number of network devices, ideal for high-density deployment.

· Gigabit High-Speed Transmission: Supports 10/100/1000Mbps Ethernet, with ultra-low insertion loss to ensure no degradation of data transmission quality.

· Strong Surge Capacity: Reliable surge current handling (typical In=5kA, Imax=10kA per port), capable of withstanding repeated lightning surge events.

· PoE Compatibility: Fully compatible with PoE (Power over Ethernet) devices, protecting both data and power lines without affecting PoE power supply.

· Intelligent Protection Design: Fast response to transient surges, with precise voltage clamping to safeguard sensitive network components.

· Rugged Metal Housing: Heat-dissipating, anti-interference metal enclosure, suitable for industrial and outdoor harsh environments.

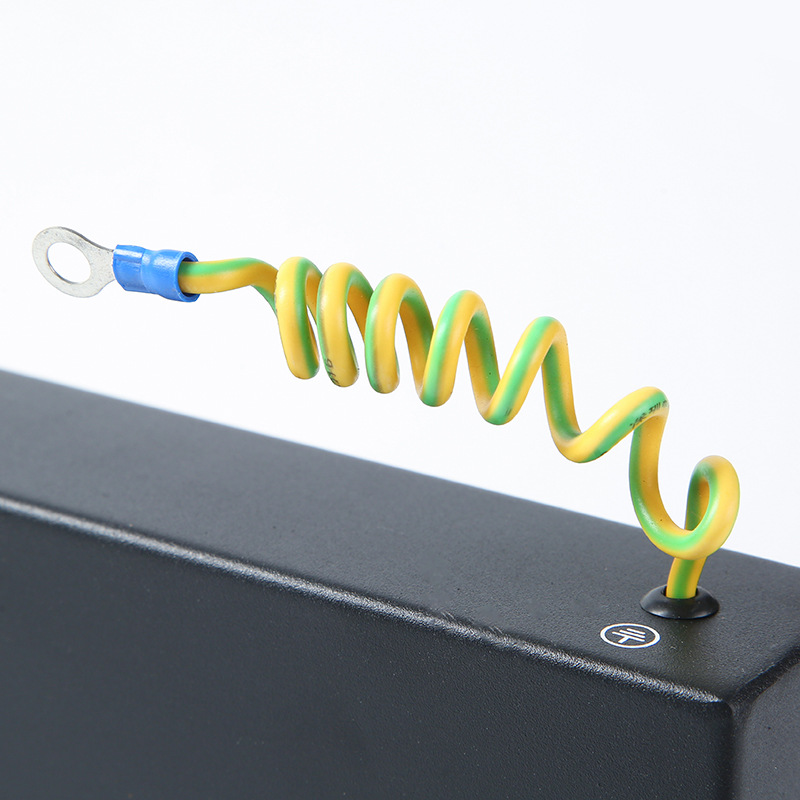

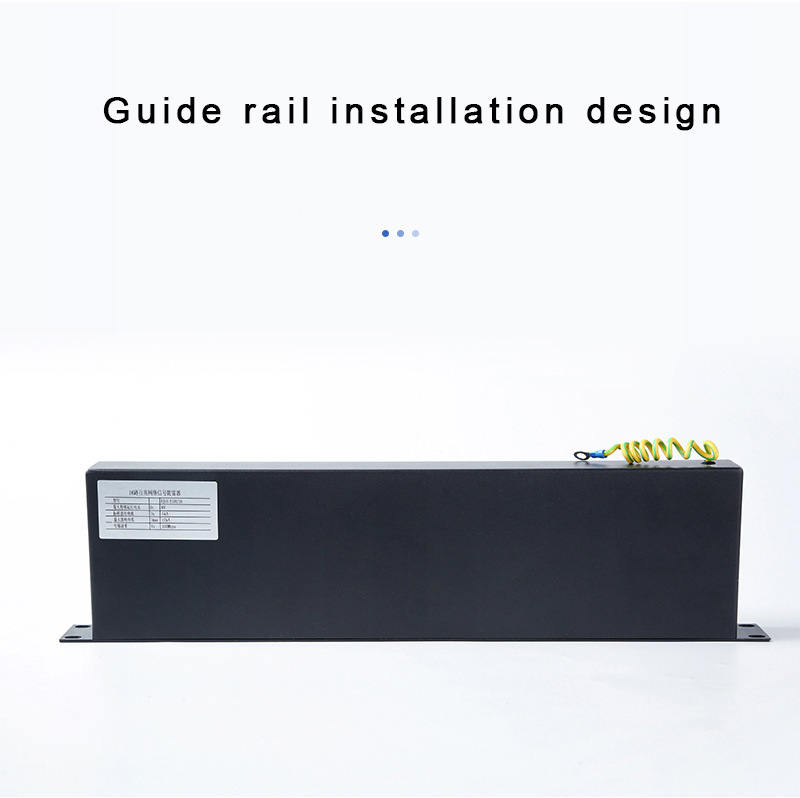

· Easy Installation: Wall-mountable design with standard grounding terminals, enabling quick and stable deployment in network cabinets or server rooms.

Applications

· Large-Scale Video Surveillance Systems: Centralized protection for 24-channel PoE IP cameras, ensuring stable operation of large monitoring networks.

· Data Centers & Enterprise Networks: Safeguards core network switches and distribution hubs in data centers and enterprise IT environments.

· Building Automation & Access Control: Protects large-scale network-connected access control systems, intercoms, and building management devices.

· Industrial Ethernet Networks: Shields industrial Ethernet switches and PLC communication modules from surge interference in factory automation systems.

· Wireless Coverage Projects: Protects multiple PoE-powered wireless access points (WAPs) in public areas, commercial buildings, and campus networks.

· Campus & School Networks: Provides centralized surge protection for classroom and office network equipment.
