24V Power & 2-Port Network Surge Protector Combo

Our combined surge protection solution is engineered to shield 24V DC-powered network systems from transient overvoltages caused by lightning induction, electrostatic discharge, and grid switching operations.

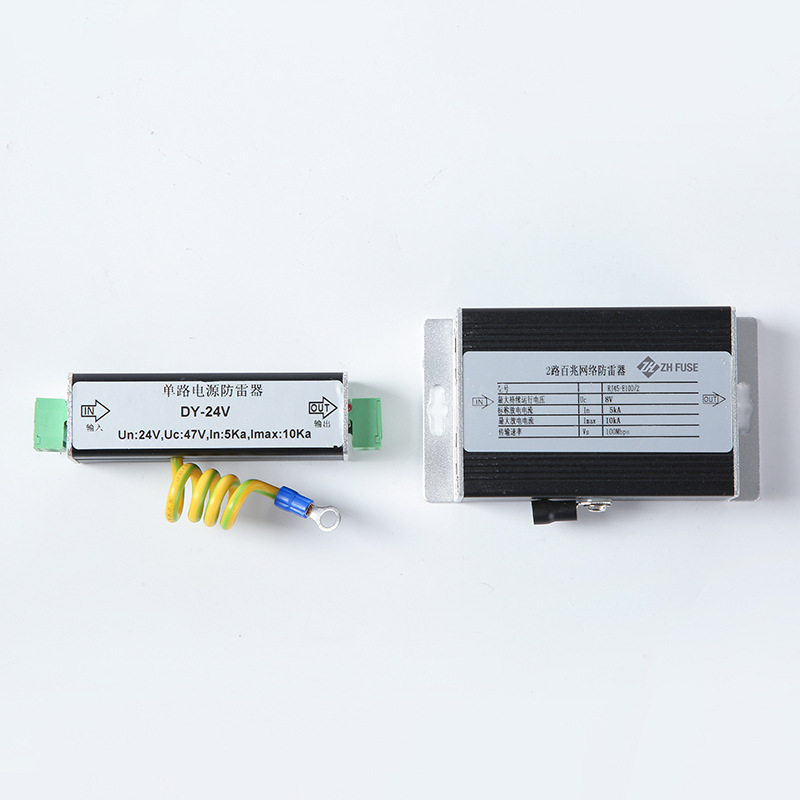

· DY-24V Power Surge Protector: Specialized for 24V DC circuits, it clamps overvoltages to safe levels, with a maximum continuous operating voltage (Uc) of 47V, protecting power lines from surge damage while maintaining stable power delivery.

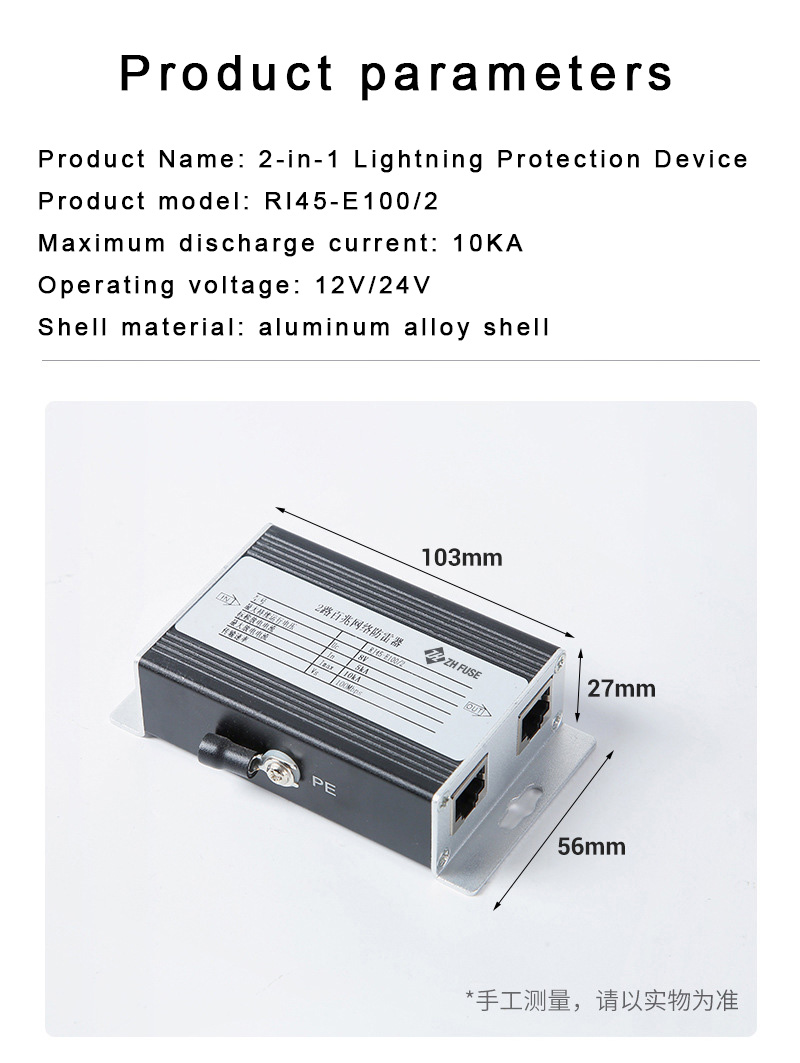

· 2-Port Network Surge Protector: Designed for 100Mbps Ethernet, it offers centralized protection for two network channels, with ultra-low insertion loss to preserve data integrity, fully compatible with PoE and non-PoE devices.

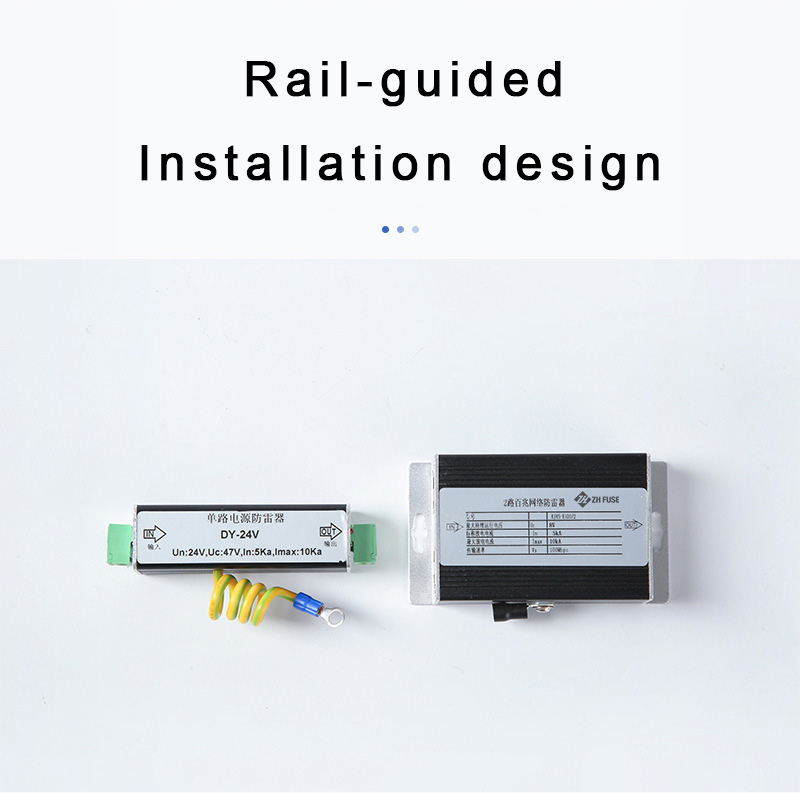

Housed in rugged metal enclosures, both devices feature easy installation (terminal blocks for power, RJ45 for network) and standard grounding terminals, making them ideal for integrated deployment in surveillance, building automation, and industrial scenarios.

Key Features

· 24V DC Specialized Protection: Optimized for 24V DC power circuits, with Uc=47V, In=5kA, Imax=10kA.

· Precise Voltage Clamping: Limits residual voltage to safeguard 24V DC devices (e.g., cameras, sensors).

· Compact Design: Small form factor with terminal block wiring for easy installation in control boxes.

· Intelligent Protection: Fast response to surges, no impact on normal power supply.

· Status Indicator: Built-in LED to monitor operational health.2-Port Network Surge Protector· 2-Port Centralized Protection: Simultaneously safeguards two Ethernet channels.

· 100Mbps High Transmission: Supports 10/100Mbps with ultra-low insertion loss, no signal degradation.

· PoE Compatibility: Works with PoE-powered devices, protecting both data and power lines.

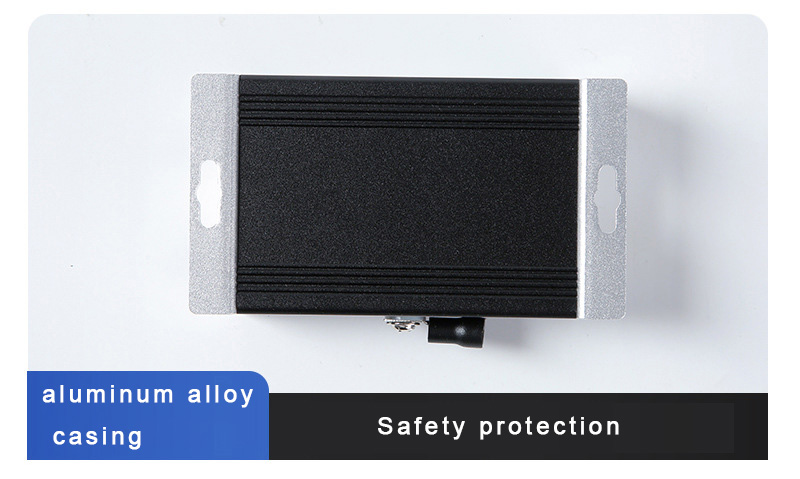

· Rugged Metal Housing: Anti-interference, heat-dissipating enclosure for harsh environments.

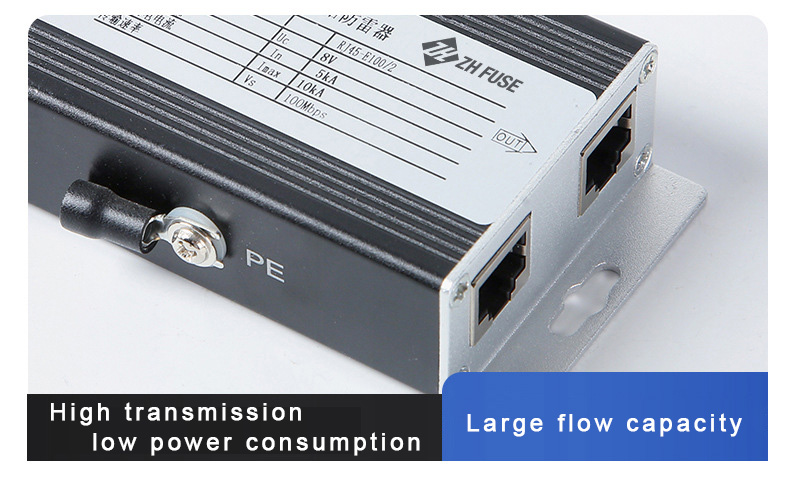

· Easy Grounding: Standard PE terminal for quick integration with lightning protection systems.

Applications

· Video Surveillance Systems: Protects 24V DC-powered IP cameras and their network connections.

· Access Control & Building Automation: Safeguards door controllers, intercoms, and sensor networks.

· Industrial Control Systems: Shields 24V DC sensors, PLC I/O modules, and industrial Ethernet devices.

· Small Business Networks: Secures office routers, switches, and 24V network equipment.

· Outdoor & Harsh Environments: Ideal for remote monitoring sites and industrial facilities.
