3 Pole Fuse Switch Disconnector 160A 690V

The ZHENGRONG HR17-160 fuse switch disconnector is a modular, space-saving unit for low-voltage three-phase distribution systems. It combines the functions of a load switch, isolating switch and emergency switch in one device, while integrated fuses deliver short-circuit protection for downstream circuits.

The 3-pole design protects all three phases simultaneously, making it suitable for three-phase AC supply systems in factories, commercial buildings and machinery power entry applications.

Design & Operation

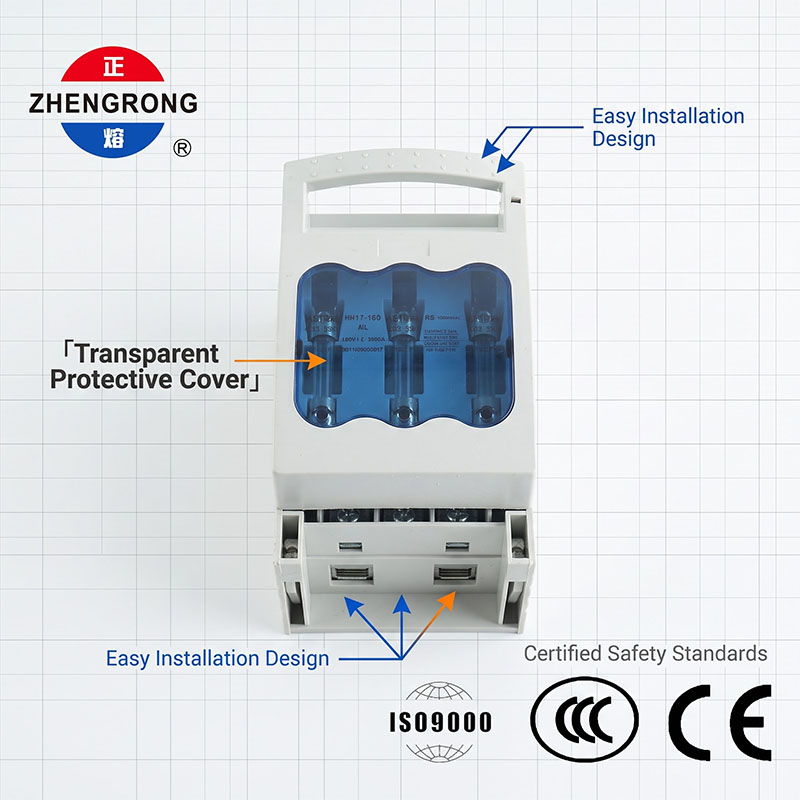

The unit features a translucent blue flip cover on the front, which opens for fuse inspection and replacement without disconnecting the wiring. A recessed handle recess at the top provides a comfortable grip for opening and closing the switch. A row of small raised ribs on the top surface improves grip and adds durability.

When the switch is opened, the disconnector forms a clear visible break, ensuring operator safety during maintenance and emergency disconnection. The internal conductive contacts are made of silver-plated copper or brass for stable conductivity and low temperature rise.

The housing is molded from high-strength, flame-retardant engineering plastic in a light-grey finish, offering excellent insulation, impact resistance and long service life. The blue polycarbonate window combines protection with easy status inspection.

The unit supports two mounting options: snap-on installation on standard 35mm DIN rails, or rear screw fixing on the cabinet mounting plate — providing flexibility for different panel designs.

3-in-1 function

● — load switch, isolating switch and fuse protection in one compact unit, saving panel space and cost.

3-pole three-phase protection

● — simultaneous protection of all phases for three-phase loads.

Visible break isolation

● — clear disconnection point when open, ensuring safe maintenance and emergency shutdown.

Flip cover fuse access

● — translucent blue window allows fuse status inspection and quick replacement without rewiring.

Dual mounting options

● — snap-on 35mm DIN rail mounting or rear screw fixing for flexible panel installation.

Flame-retardant housing

● — high-strength engineering plastic with excellent insulation, impact and heat resistance.

High-conductivity contacts

● — silver-plated copper or brass terminals for stable performance and low temperature rise.

Ergonomic operation

● — recessed top handle with grip ribs for comfortable, reliable manual switching.

Quality certified

● — IEC 60947-3 compliant; ISO9000, CCC and CE certified for domestic and export markets.

Application

● Low-voltage distribution boards and control cabinets

● Industrial power distribution in factory workshops

● Main distribution panels and sub-distribution boxes in commercial buildings

● Power entry switch and short-circuit protection for large machinery

● Motor control centers

● Emergency switching and maintenance isolation

● Panel builders, electrical contractors and plant maintenance teams
