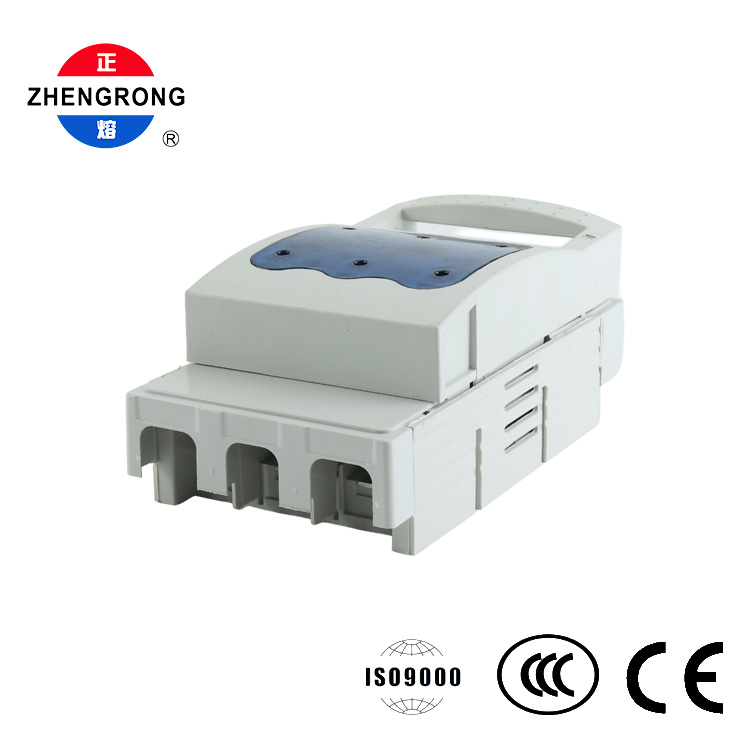

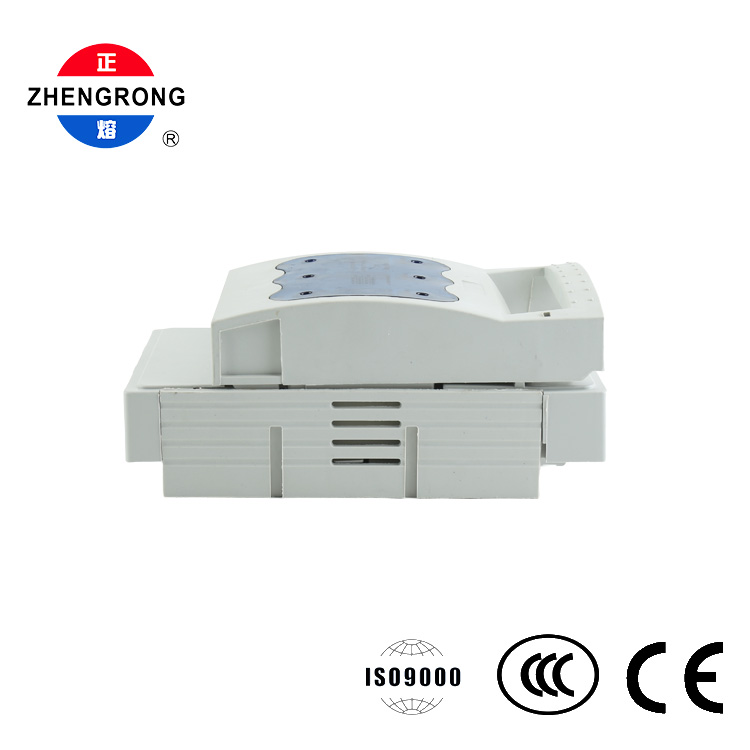

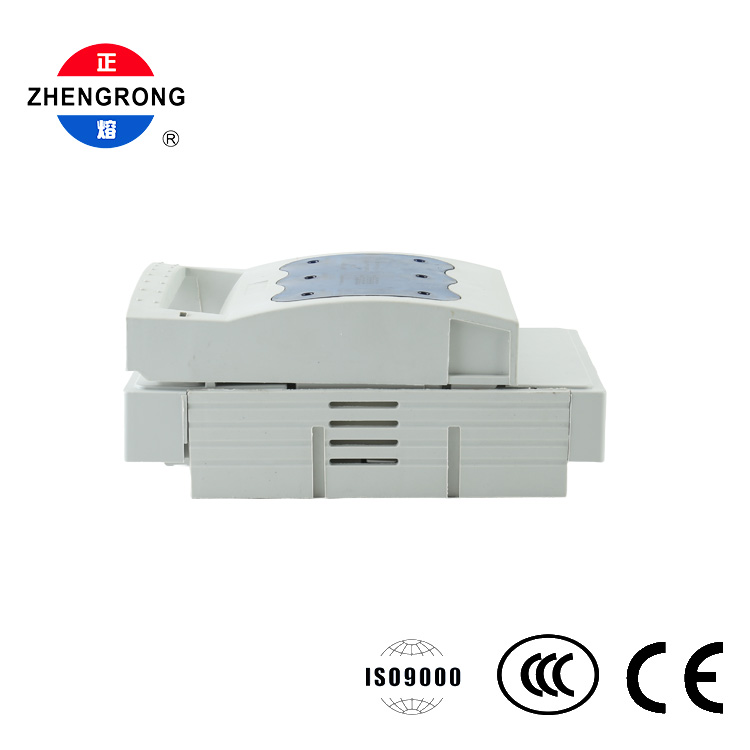

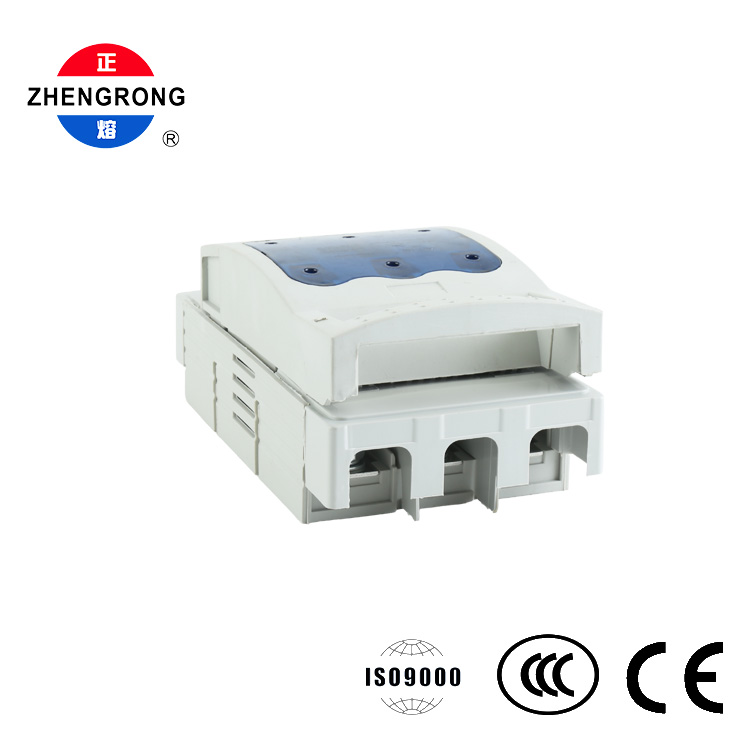

3 Pole Fuse Switch Disconnector 160A 690V DIN Rail

The ZHENGRONG HR17-160 fuse switch disconnector is a modular, compact unit for low-voltage three-phase distribution. It performs circuit make/break and isolation while integrated fuses provide short-circuit and overload protection for downstream equipment — all in a single device.

The 3-pole design protects all three phases simultaneously, with three internal fuse positions and contact points visible through the inspection window. Rated 160A at 690V~, 50/60Hz, it suits both 50Hz and 60Hz supply networks worldwide.

Design & Operation

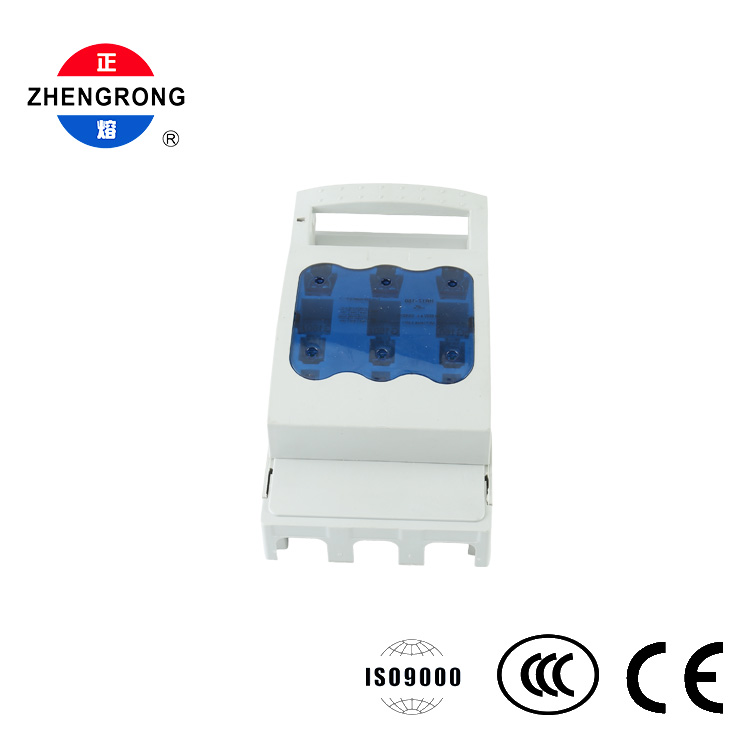

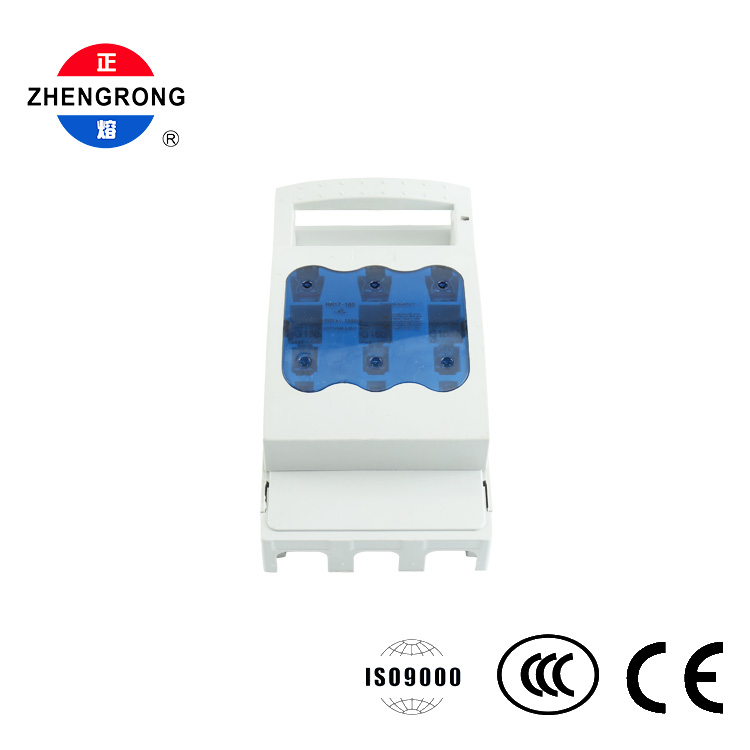

A wide handle on top allows easy manual pull/push operation for circuit make/break. The translucent blue protective cover in the middle enables operators to check fuse condition at a glance without opening the unit, speeding up inspection and troubleshooting.When the switch is opened, the disconnector creates a clear visible break, ensuring safe isolation during maintenance and emergency shutdown. Internal conductors use tinned copper contacts for reliable conductivity and low temperature rise.

Construction & Installation

The housing is molded from high-strength, flame-retardant engineering plastic (polycarbonate or reinforced nylon) in a light-grey finish, offering excellent insulation, impact and heat resistance. The modular design keeps the unit compact and easy to integrate.

Two installation options are available: standard 35mm DIN rail mounting via rear clips, or screw fixing onto the cabinet mounting plate — flexible for different panel layouts.

Switch + isolation + fuse protection in one unit

● — circuit make/break, isolation and short-circuit protection combined, saving space and cost.

3-pole three-phase protection

● — simultaneous protection of all three phases for motors and branch circuits.

Wide operating handle

● — comfortable manual pull/push switching with clear status indication.

Translucent blue window

● — fuse condition visible at a glance without opening the unit.

Visible break isolation

● — clear disconnection point when open, ensuring maintenance safety.

Flame-retardant housing

● — high-strength engineering plastic with excellent insulation, impact and heat resistance.

Tinned copper contacts

● — stable conductivity and low temperature rise for reliable long-term performance.

Dual mounting options

● — 35mm DIN rail or screw fixing for flexible panel installation.

50/60Hz compatibility

● — rated 690V~, 50/60Hz for global markets.

Quality certified

● — ISO9000, CCC and CE certified for domestic and export markets.

Application

● Low-voltage distribution systems in industrial plants and commercial buildings

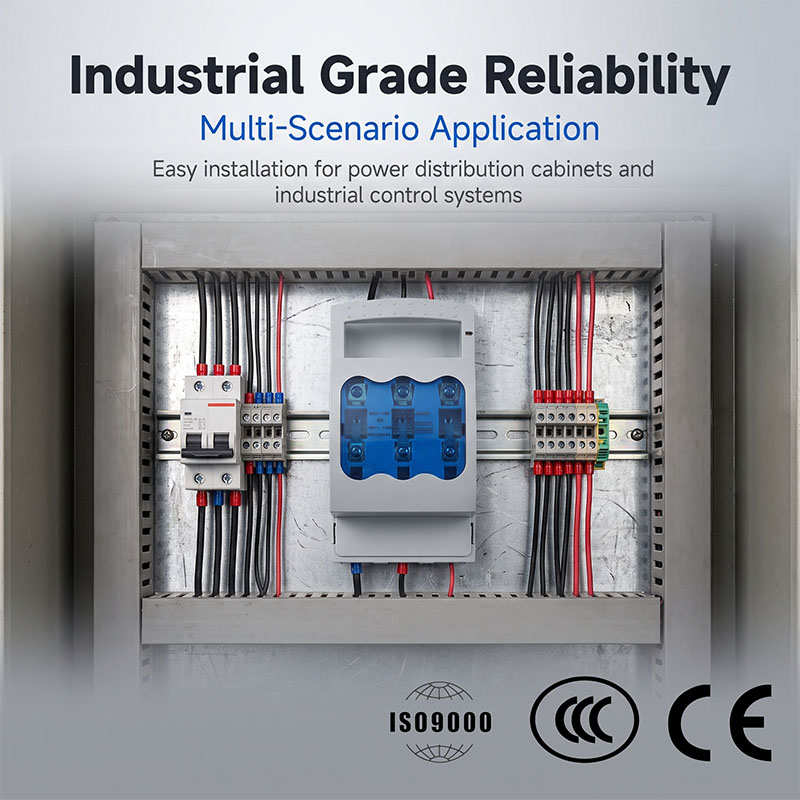

● Cable distribution boxes, low-voltage distribution cabinets and motor control boxes

● Motor protection and branch-circuit switching

● Branch-circuit make/break and short-circuit protection

● Power entry protection for machinery and equipment

● Maintenance isolation and emergency switching

● Panel builders, electrical contractors and plant maintenance teams
