3 Pole Fuse Switch Disconnector 630A 690V

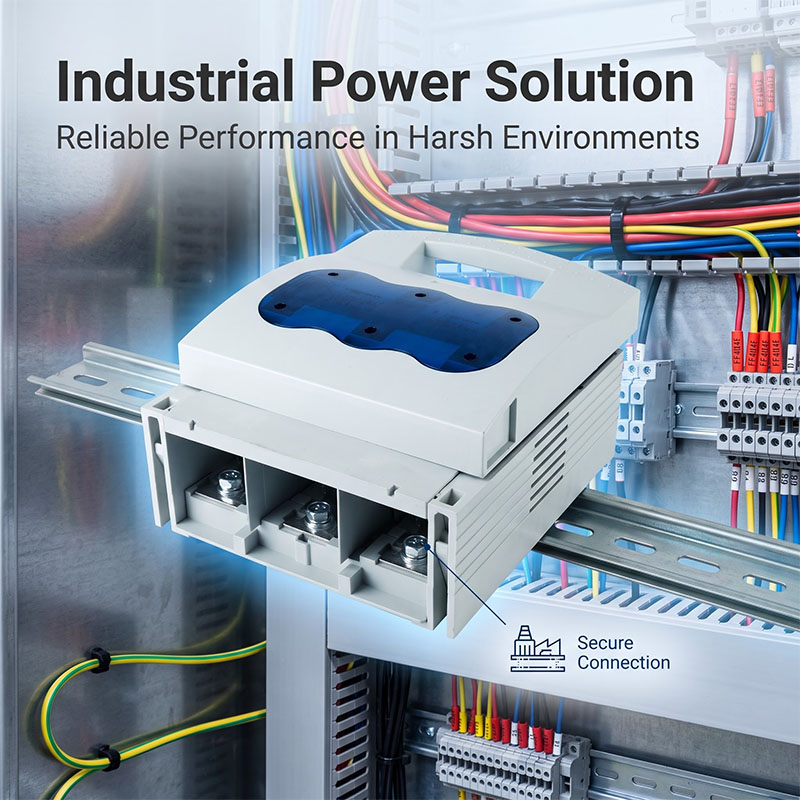

The ZHENGRONG HR17-630 fuse switch disconnector is a heavy-duty device for high-current low-voltage three-phase distribution. It can make, carry and break circuits under no-load conditions while integrated fuses provide short-circuit and overload protection for cables, conductors and equipment — combining load switching, isolation and protection in a single unit.

The 3-pole design protects all three phases simultaneously, with three independent fuse positions visible through the front window. Rated 630A, it is suitable for main circuits in factory power distribution, low-voltage switchgear and capacitor compensation cabinets.

Design & Operation

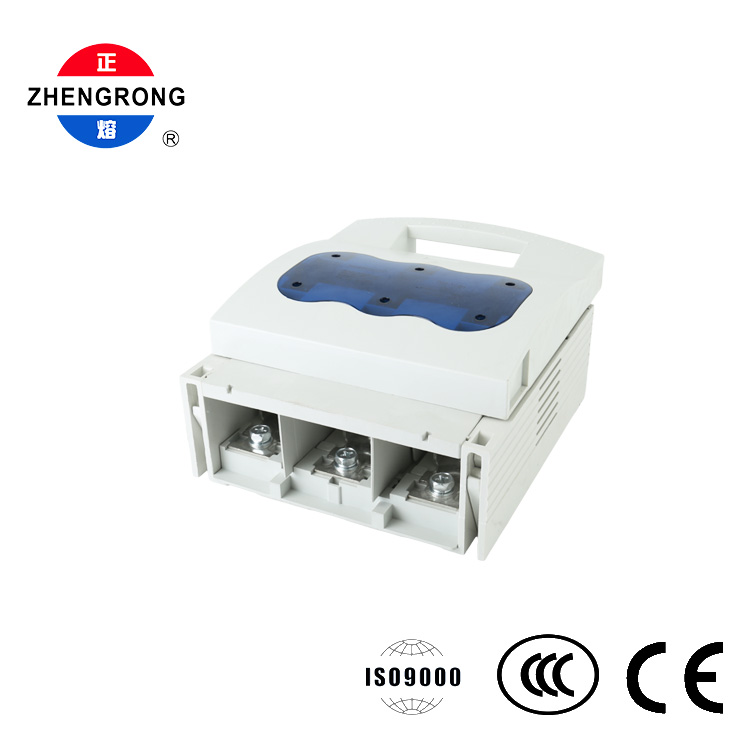

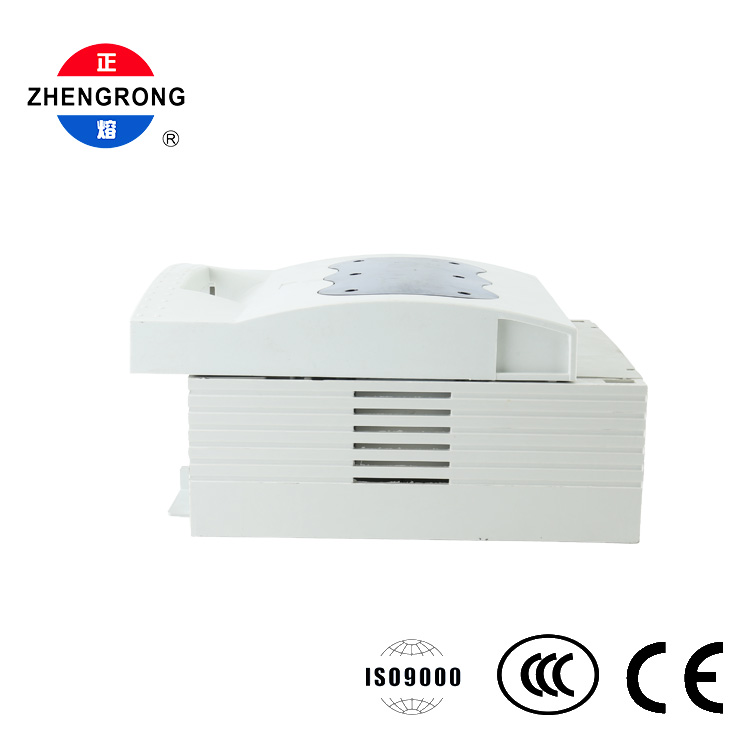

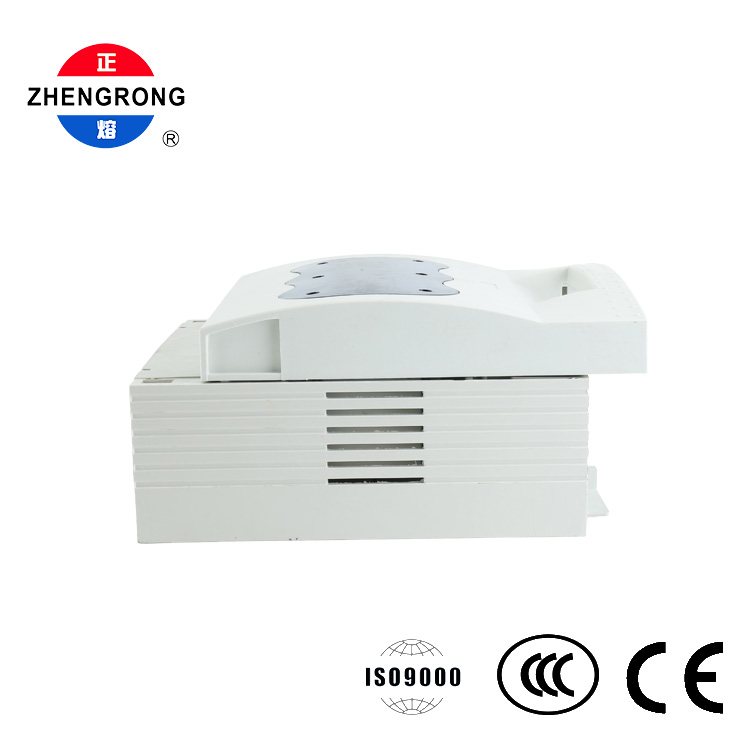

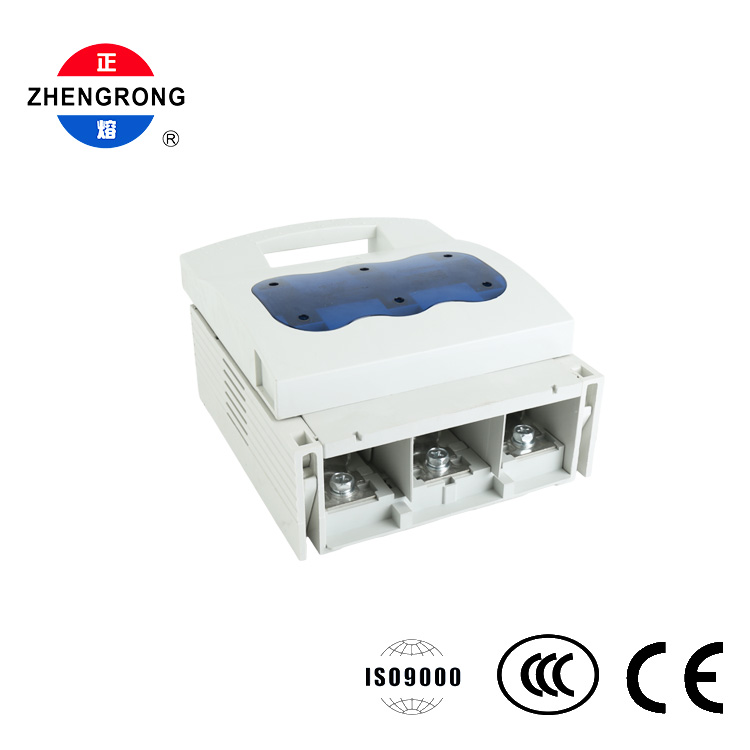

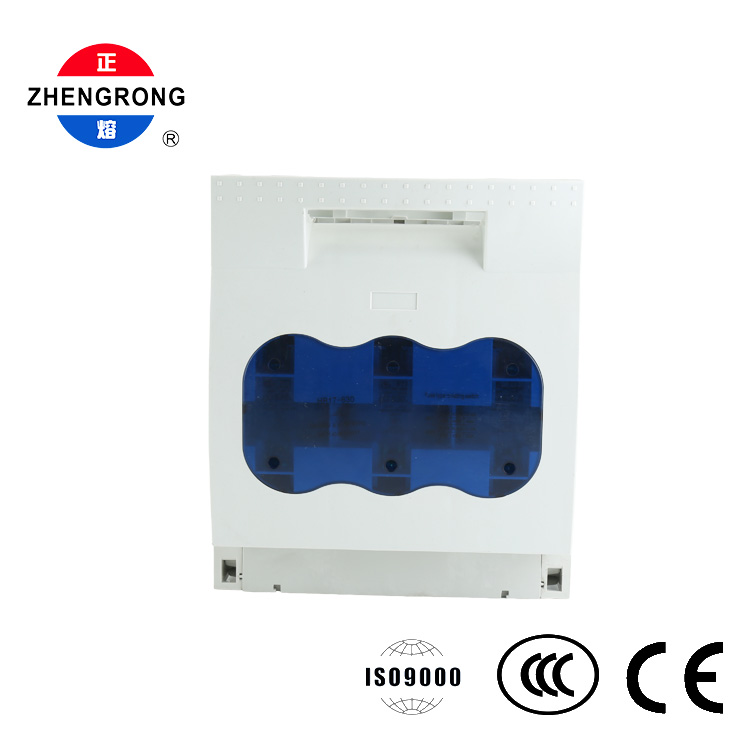

The front features a prominent triple-arc translucent blue window that allows operators to inspect fuse status of all three poles at a glance without opening the switch. A rectangular recessed grip at the top provides comfortable manual operation, while a row of small square vents/patterns on the top surface aids heat dissipation and grip.

When opened, the disconnector creates a clear visible break, ensuring safe isolation during maintenance. Internal conductive copper busbars and fuse contacts are built for stable high-current performance.

Construction & Installation

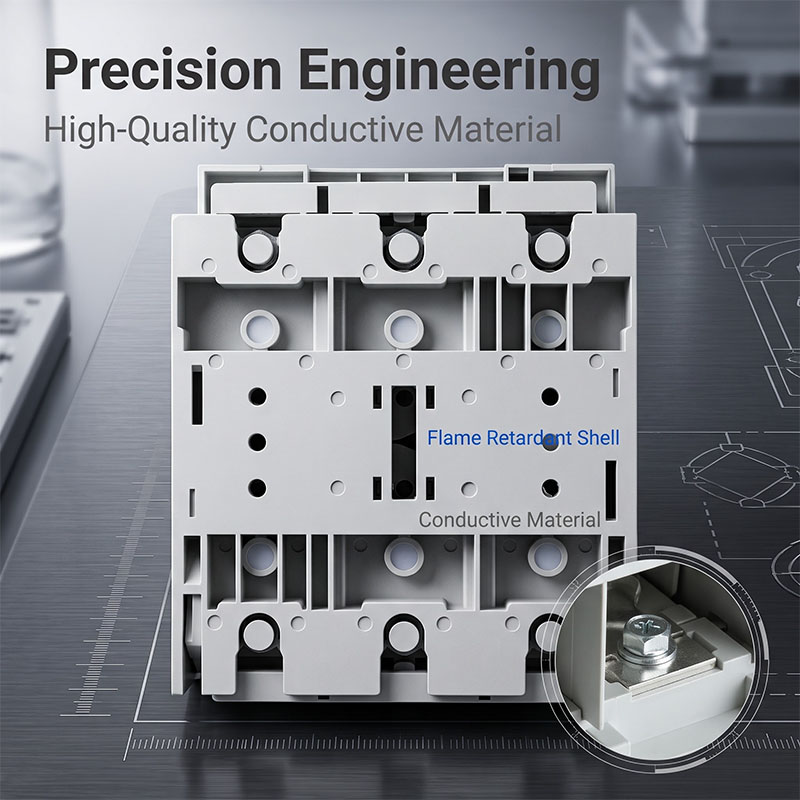

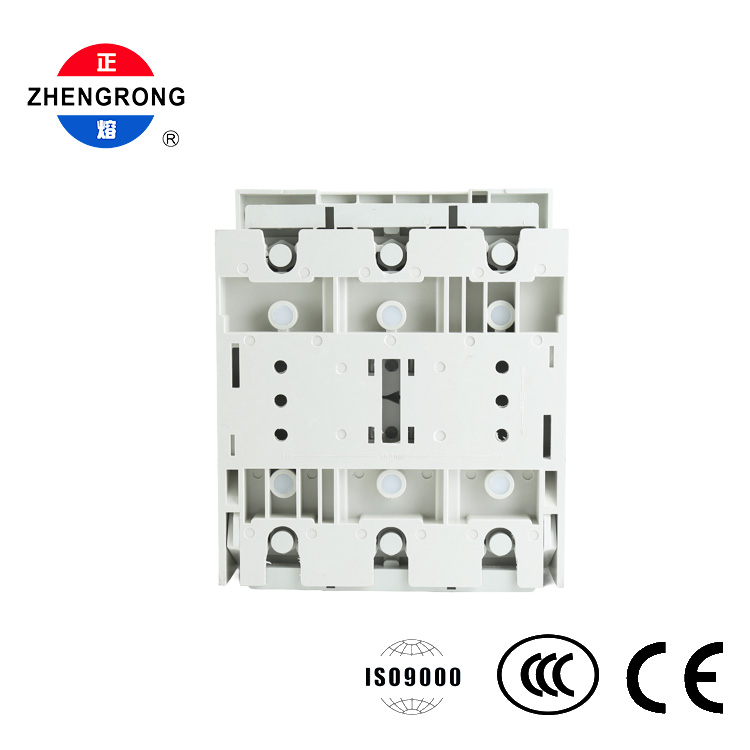

Installation is by screw fixing: base mounting slots and bolt covers allow secure installation onto the mounting plate inside distribution cabinets or onto busbar systems.

Features

High-current capacity

● — rated 630A for main circuits and heavy loads.

Switch + isolation + fuse protection in one unit

● — make/carry/break, isolation and short-circuit protection combined, saving space and cost.

3-pole three-phase protection

● — simultaneous protection of all three phases.

Triple-arc blue window

● — fuse status of all three poles visible at a glance without opening the switch.

Recessed grip handle

● — comfortable, reliable manual operation.

Visible break isolation

● — clear disconnection point when open, ensuring maintenance safety.

Flame-retardant PA66 housing

● — excellent insulation, heat resistance and mechanical strength.

Robust copper internals

● — copper busbar and fuse contacts for stable high-current performance.

Flexible mounting

● — screw fixing on mounting plates or busbar systems.

Quality certified

● — ISO9000, CCC and CE certified for domestic and export markets.

Application

● Factory power distribution cabinets and low-voltage switchgear

● Capacitor compensation cabinets

● Main switch or branch protection in commercial buildings, hospitals and data centers

● Power disconnection and short-circuit protection for large machinery

● High-current low-voltage distribution systems

● Maintenance isolation with visible break

● Panel builders, electrical contractors and plant maintenance teams
