Products

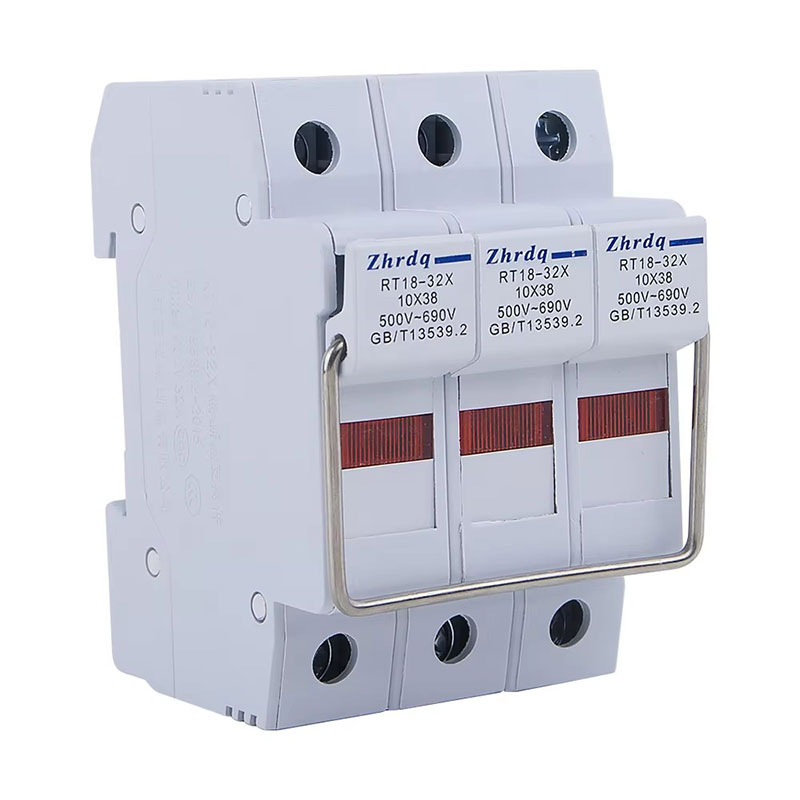

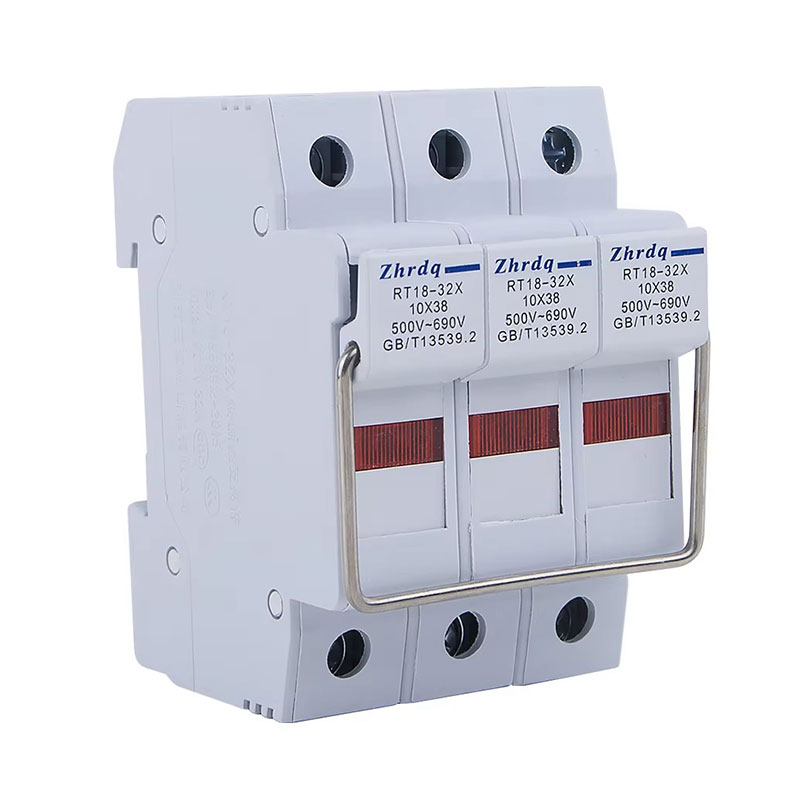

500-690V Cylindrical Fuse Holders
This type of fuse holder is a 500-690V cylindrical fuse holder, and our RT18 also has a safety lock that can lock the fuse holder when disconnected to avoid accidental operation. The 500-690V cylindrical fuse holders are widely used in household appliances, industrial equipment, and automobiles. Protect electricity from damage caused by overload current. Reduce losses.
Introduction
Relatively speaking, our Zhenghao 500-690V Cylindrical Fuse Holders have high temperature resistance and conductivity, ensuring the safety of the circuit. And our 500-690V Cylindrical Fuse Holders are designed to comply with relevant standards, effectively handling losses caused by current and quickly shutting down circuits when needed.
Our 500-690V Cylindrical Fuse Holders have gained excellent reputation both domestically and internationally, and are well received by both new and old customers. We believe that quality and service are the foundation of a company's survival, and Zhenghao fuses will not disappoint the trust of any customer.
Features&Benefits
Easy installation
Flexible use
High reliability
Strong high temperature resistance
Good waterproof performance
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Rated Current | 40A |
| Brand Name | ZHENGRONG |
| Model Number | RT18-32X |
| Use | LOW VOLTAGE |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Cylindrical Fuse |
| Rated Voltage | AC 500V~690V |
| Rated Current | 0.5A~40A |
| Certificate | CE, CCC |
| Color | White/BLack |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 0.200kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |
Products Display

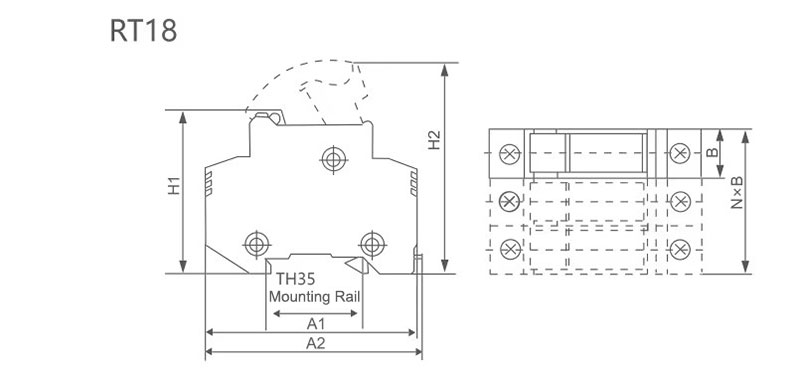

Specification
| Model | Dimension(mm) | ||||
| A1 | A2 | B | H | H2 | |
| RT18-32 | 77 | 78 | 17 | 61 | 80 |
| RT18-32X | 78 | 80 | 18 | 62 | 79 |
| RT18-63 | 96 | 97 | 26 | 67 | 94 |
| RT18-63X | 97 | 98 | 23.5 | 77 | 93 |
| RT18-125 | 127 | 129 | 35 | 76 | 104 |
| HG30-32 | 77 | 78 | 17.5 | 73 | 88 |
Certification
Hot Tags: 500-690V Cylindrical Fuse Holders OEM, Zhenghao FUSE wholesale
