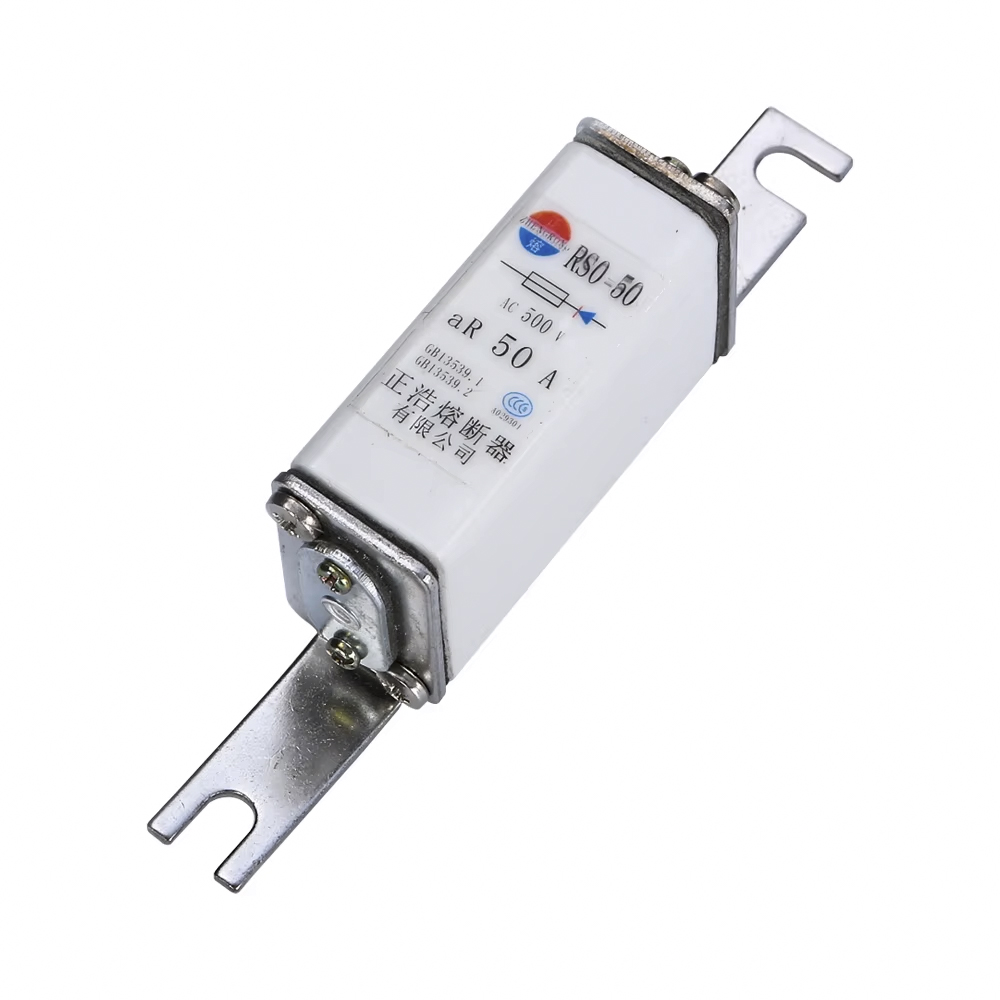

RS0/RS3-50 500V Fuse
Model:RS0/RS3-50

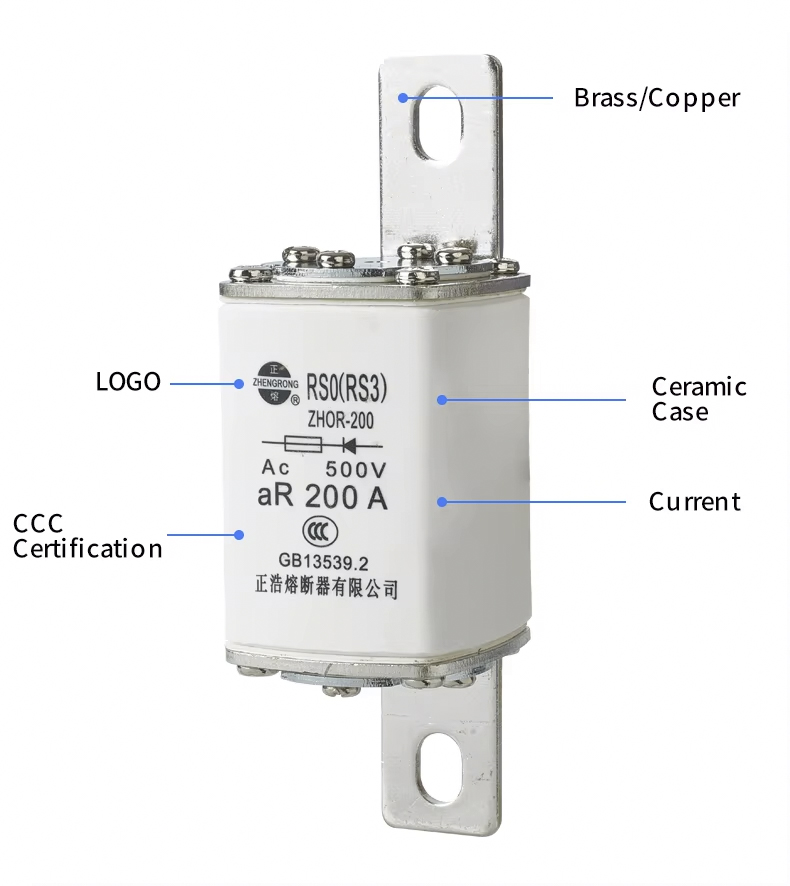

The RS0/RS3-50 500V Fuse is a square tube bolted fast fuse, with a rated voltage of 500V and a breaking capacity of 50ka, which has good safety guarantee.
Product Introduction
The RS0/RS3-50 500V Fuse is a square tube bolted fast fuse, with a rated voltage of 500V and a breaking capacity of 50ka, which has good safety guarantee. It can be used in any transformer and inverter.
Features&Benefits
Voltage:500V
Standard:CE、CCC
Country:China
Material:Ceramic silver
Breaking capacity:50kA
Easy to replace
Application
Industrial equipment
automotive circuits
office field
Key attributes
|
Breaking Capacity |
High |
Safety Standards |
IEC |
|
Place of Origin |
Zhejiang, China |
Rated Current |
15 A, 40 A, 12 A, 6 A, 16 A, 20 A, 50 A, 32 A, 100 A，250 A，200 A |
|
Model Number |
RS0/RS3-50 |
Brand Name |
ZHENGRONG |
|
Application |
Low Voltage |
Brand |
ZHENGRONG |
|
Product name |
Square Tube Bolt Fuse |
Rated Voltage |
500V |
|
Rated Current |
10-50A |
Certificate |
CE, CCC |
|
Color |
White |
Service |
ODM/OEM |
|
Fuse Size |
Customized Size |
Manufacturer History |
40+ years |
|
Package |
Standard Package |
|
|
|
Selling Units |
Single item |
Single package size |
15X7X10 cm |
|
Single gross weight |
0.200 kg |
|
|
|
Quantity (pieces) |
1 - 100 |
101-1000 |
1001-10000 |
>10000 |
|
Lead time（days） |
31 |
35 |
40 |
To be negotiated |
Product Display

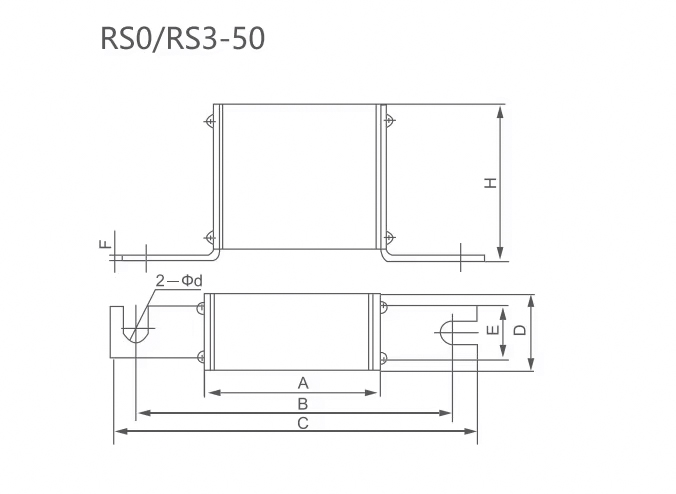

Specifications
|
Model |
Dimension（mm） |
|||||||
| A | B | C | D | E | F | H |
Φd |
|
|
RSO/RS3-50 |
70 | 120 | 137 | 25 | 15 | 2 | 43 | 7 |
Company Profile
Hot Tags: S0/RS3-50 500V Fuse
