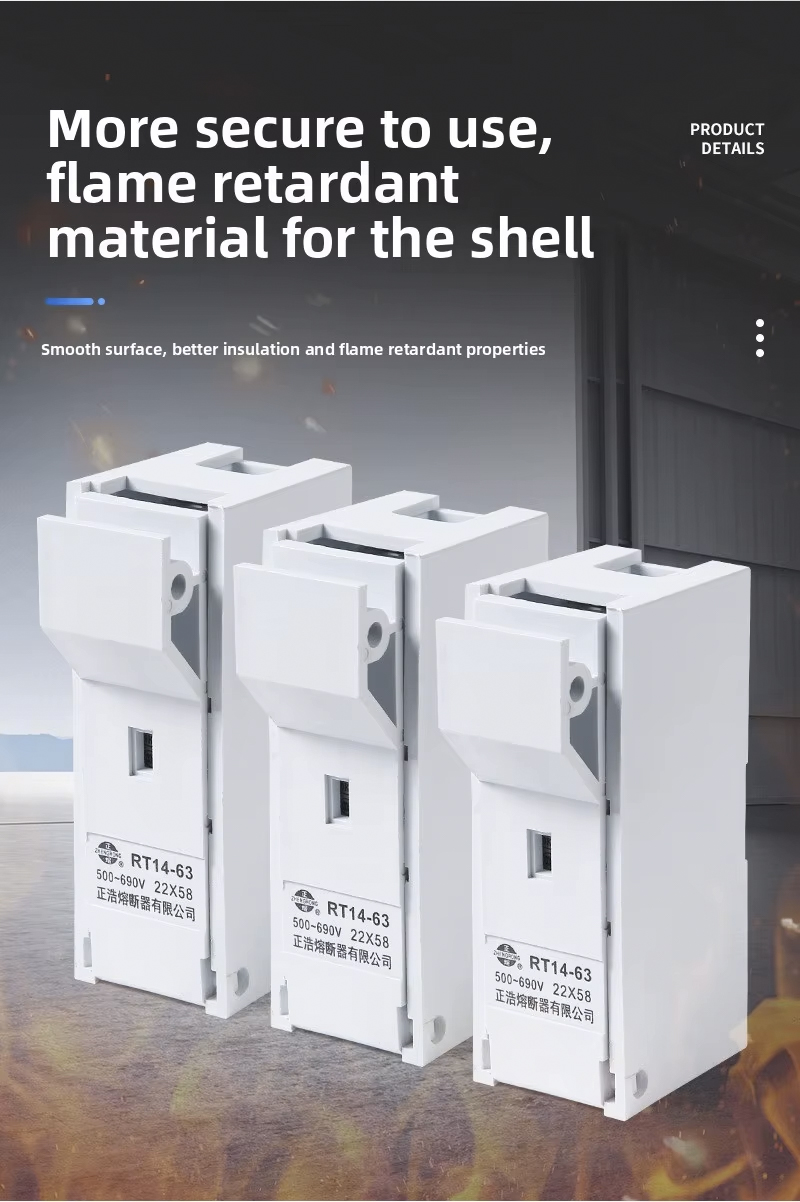

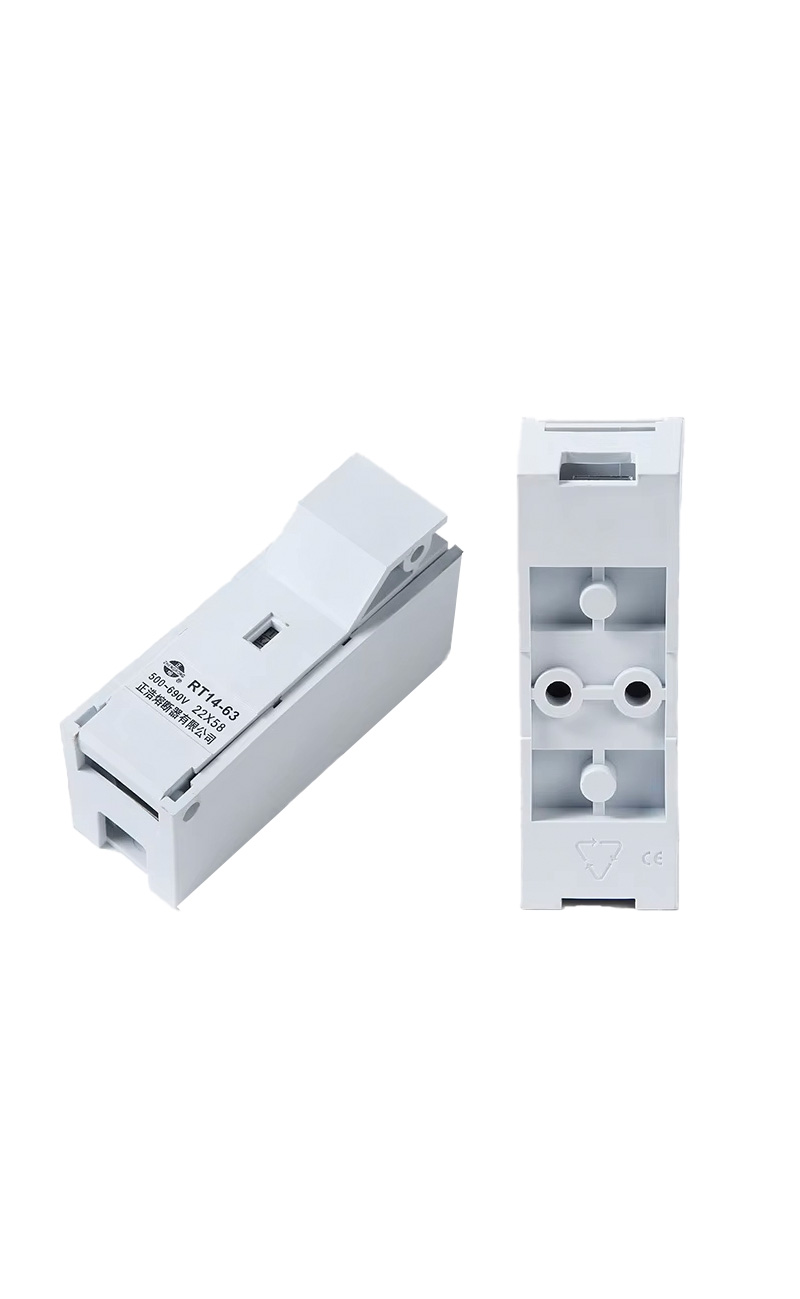

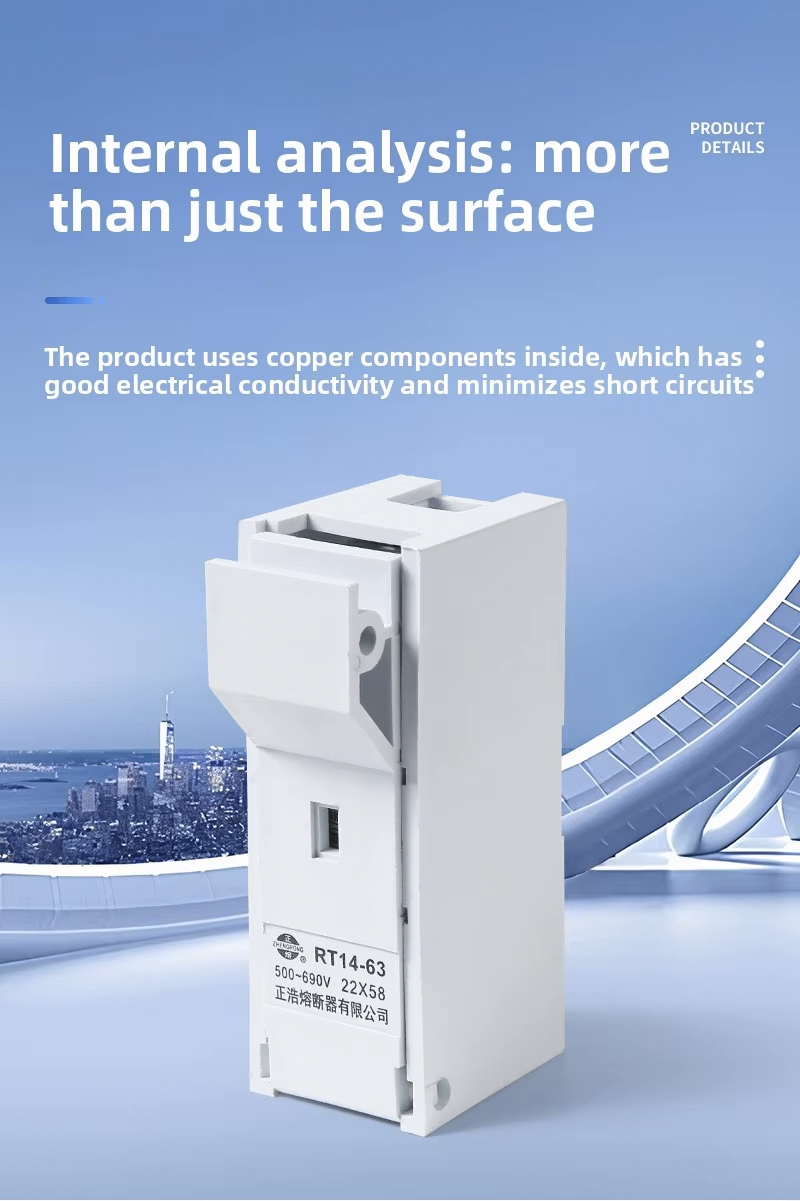

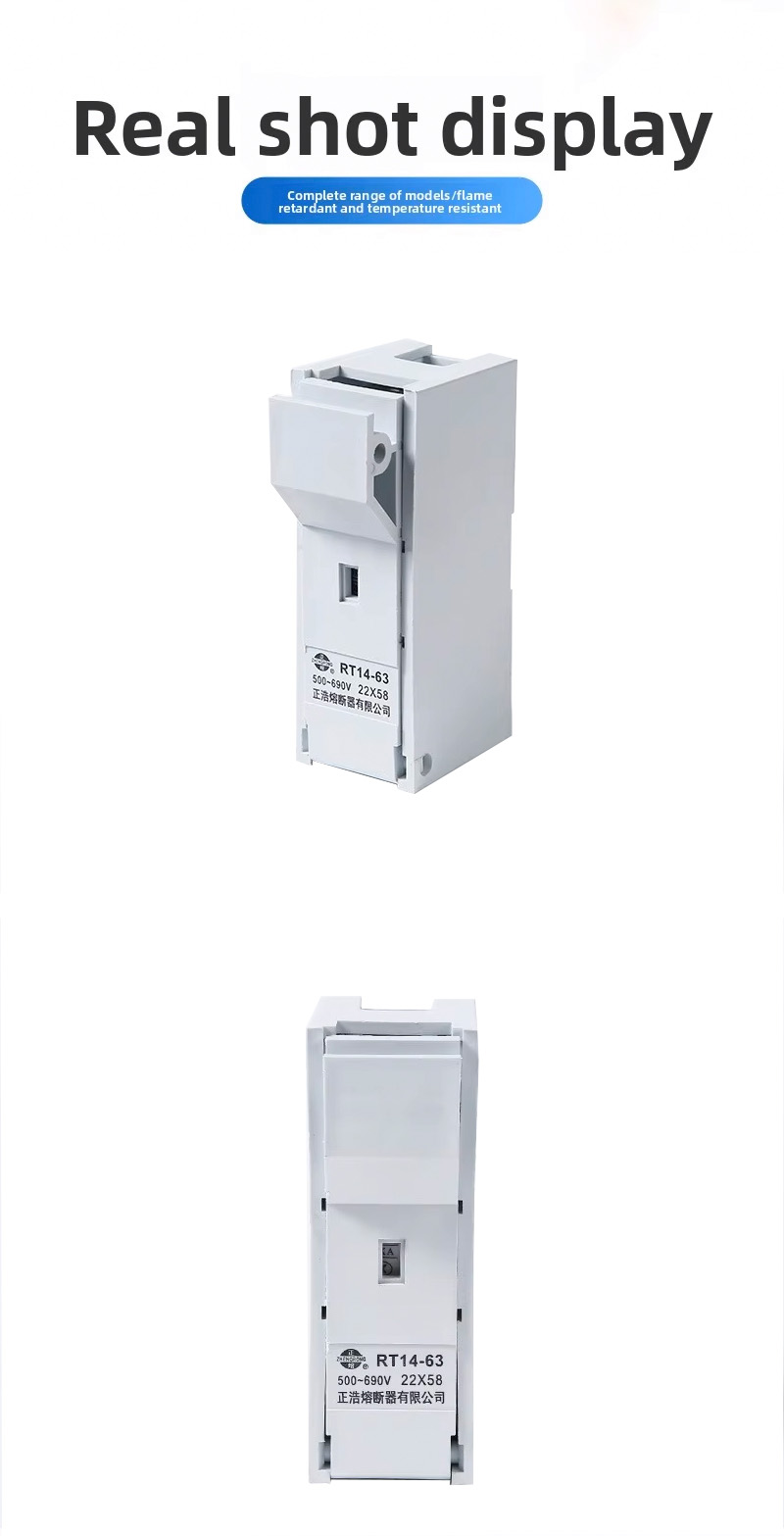

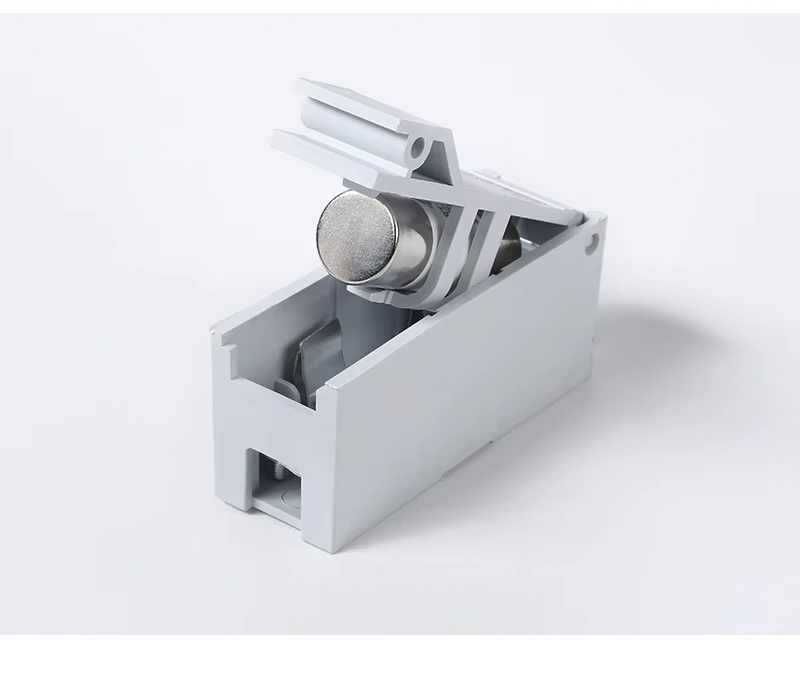

Wholesale 22x58 RT14-63 enclosed rail fuse base
Model:22x58 RT14-63 Base
The product is RT14-63 with a rated voltage of 500V~690V and a rated current of 100V. The passing current is 63A, and the rated breaking force of the fuse of this series is 25KA, which conforms to the national standard GB13539 and the international electrotechnical standard IEC60269.
Product Introduction
The product is RT14-63 with a rated voltage of 500V~690V and a rated current of 100V. The passing current is 63A, and the rated breaking force of the fuse of this series is 25KA, which conforms to the national standard GB13539 and the international electrotechnical standard IEC60269.
Feature
High breaking force
Widely used
safe and firm
Easy to replace
Application
Office
Industry
Key attributes
|
Breaking Capacity |
25KA |
Material |
Plastic |
|
Safety Standards |
IEC |
Type |
Fuse base |
|
Place of Origin |
Zhejiang,China |
Model Number |
RT14-63 |
|
Brand Name |
ZHENGRONG |
Fuse Indicator |
Non-Indicating |
|
Lead Type |
Silver core |
Number of Pole |
1 |
|
Operating Temperature |
-40℃~+85℃ |
Response Time |
Fast blow. |
|
Application |
Low voltage |
|
|
|
Selling Units |
Single item |
|
Quantity |
1-500 |
>500 |
|
Lead time (days) |
15 |
To be negotiated |
Specification
|
Item |
Value |
|
Usage |
Low voltage |
|
Operating Temperature |
-40℃~+85℃ |
|
Safety Standards |
IEC |
|
Lead Type |
Silver core |
|
Logo/graphic design |
Accept |
|
Place of Origin |
CN;ZHE |
|
Brand Name |
ZHENGRONG |
|
Model |
RT14-63 |
|
Response Time |
Fast blow. |
|
Type |
Fuse base |
|
Packaging |
Carton |

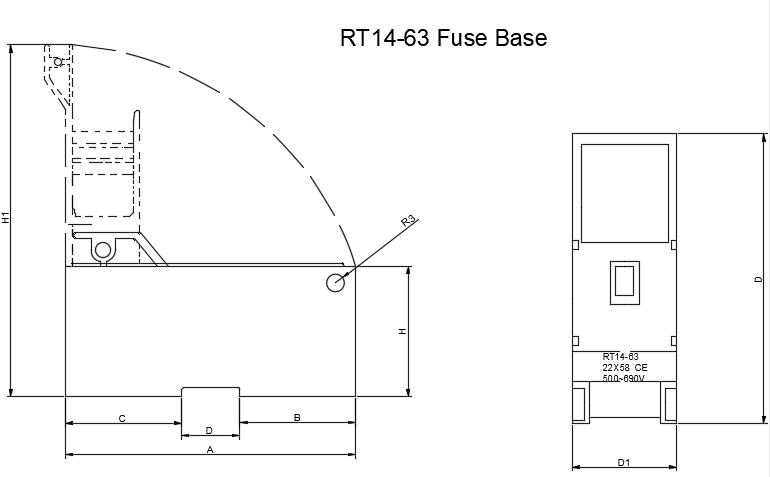

| A | B | C | D | D1 | D2 | H | H1 | R3 |
| 100 | 40 | 40 | 20 | 36 | 100 | 45 | 135 | 0.25 |
