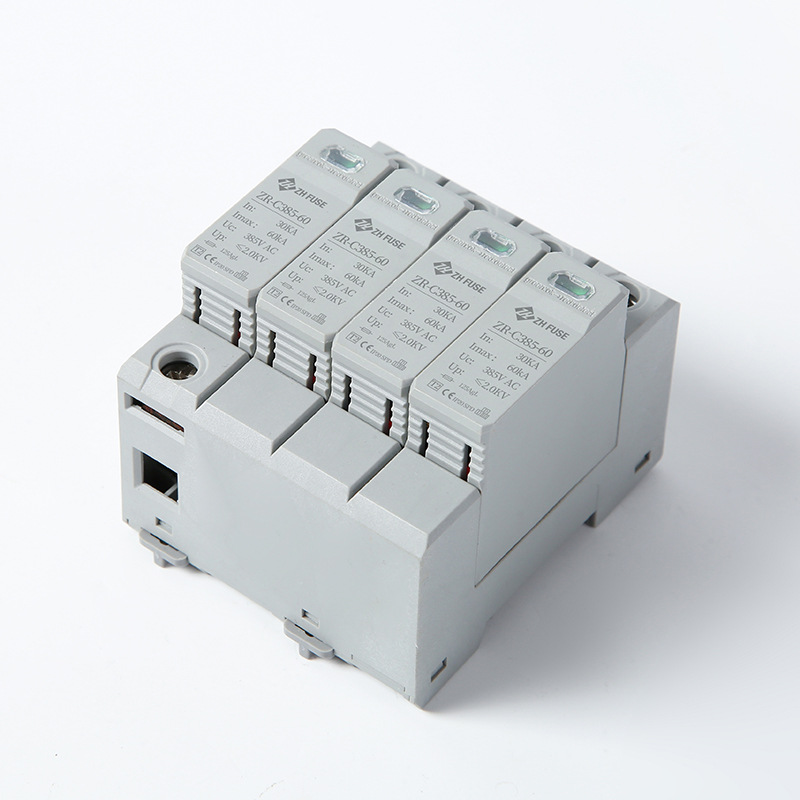

ZR-C385-60 4P AC Surge Protective Device (SPD)

Our ZR-C385-60 SPD is engineered to intercept and discharge transient overvoltages in 220V/385V AC systems, such as those caused by lightning strikes or grid switching operations. It utilizes advanced voltage-clamping technology to quickly limit residual voltage and divert surge currents to the ground, protecting downstream electrical equipment from damage.

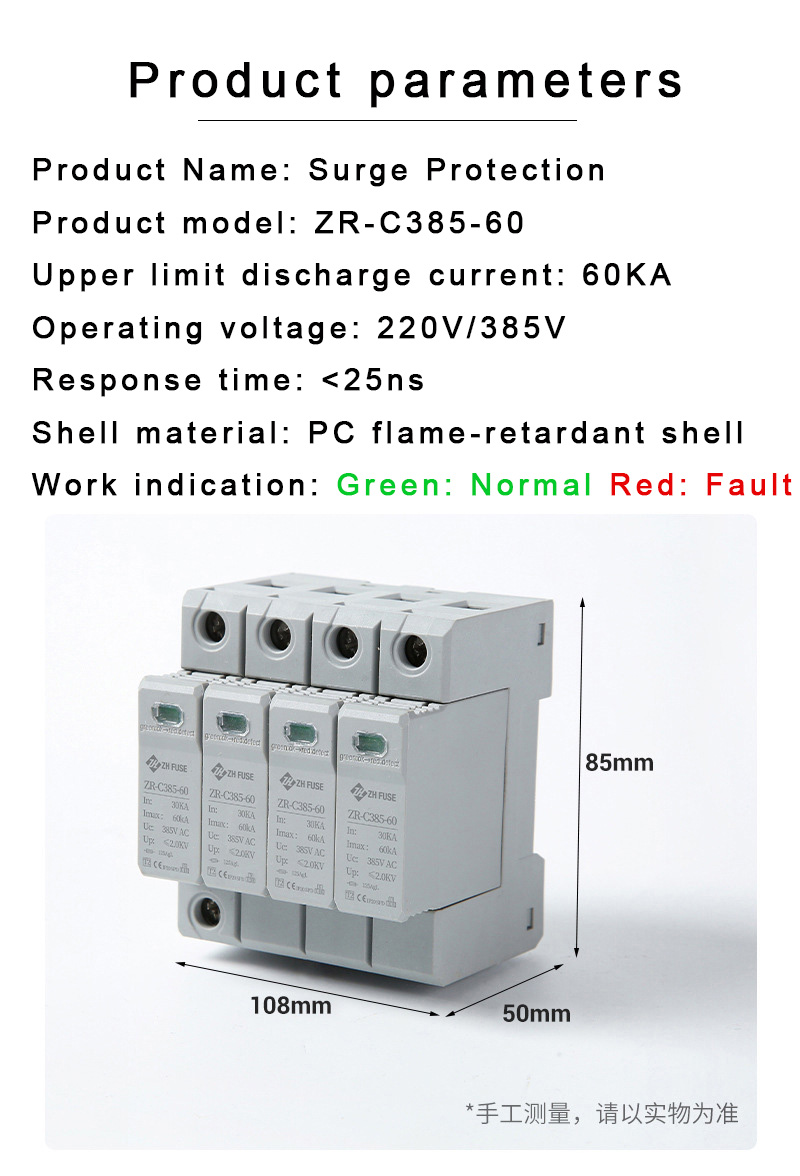

With a 4-pole configuration, this SPD is compatible with three-phase AC systems, offering comprehensive protection for L1, L2, L3, and N lines. Its compact DIN-rail mount design (108×50×85mm) allows for easy installation in distribution cabinets, while the PC flame-retardant shell enhances safety under extreme conditions. The built-in visual status indicator provides real-time monitoring, enabling quick identification of fault conditions and timely maintenance. As a key component of a multi-level lightning protection system, it acts as the secondary defense layer, effectively mitigating residual surge energy and ensuring stable system operation.

Key Features

· High Surge Capacity: Maximum discharge current (Imax) of 60kA, capable of withstanding strong lightning and surge events.

· Ultra-Fast Response: Response time <25ns, quickly clamping overvoltages to protect sensitive equipment.

· Wide Voltage Compatibility: Designed for 220V/385V AC systems, suitable for single-phase and three-phase applications.

· Flame-Retardant Housing: PC flame-retardant shell meets safety standards, preventing fire spread in case of component failure.

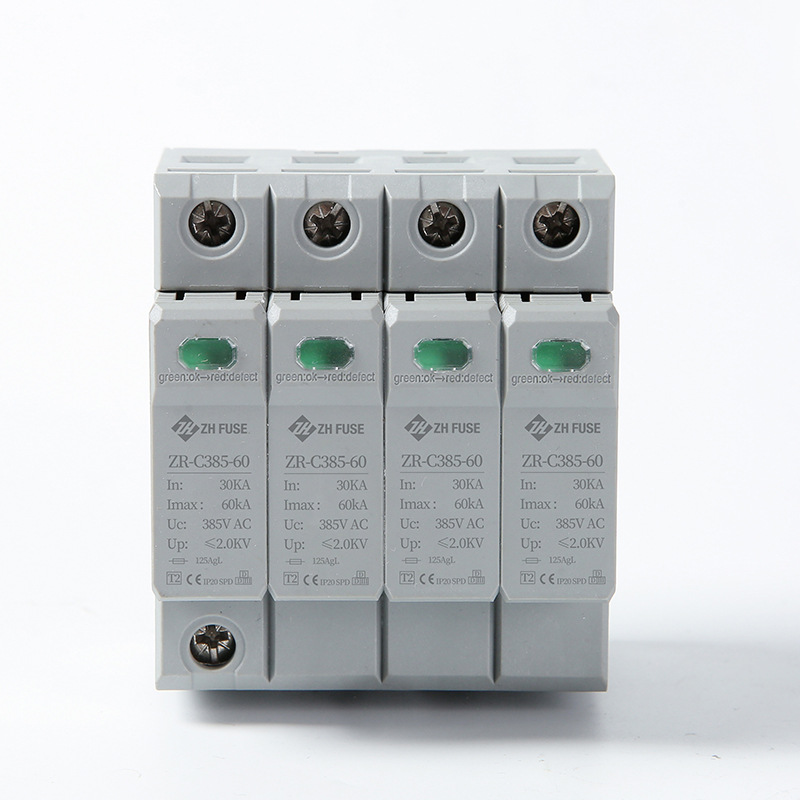

· Visual Status Indication: Green LED for normal operation, red LED for fault, enabling real-time monitoring.

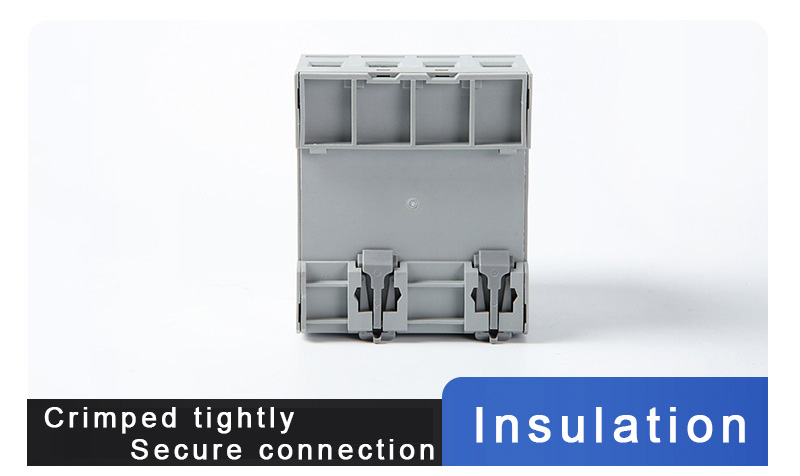

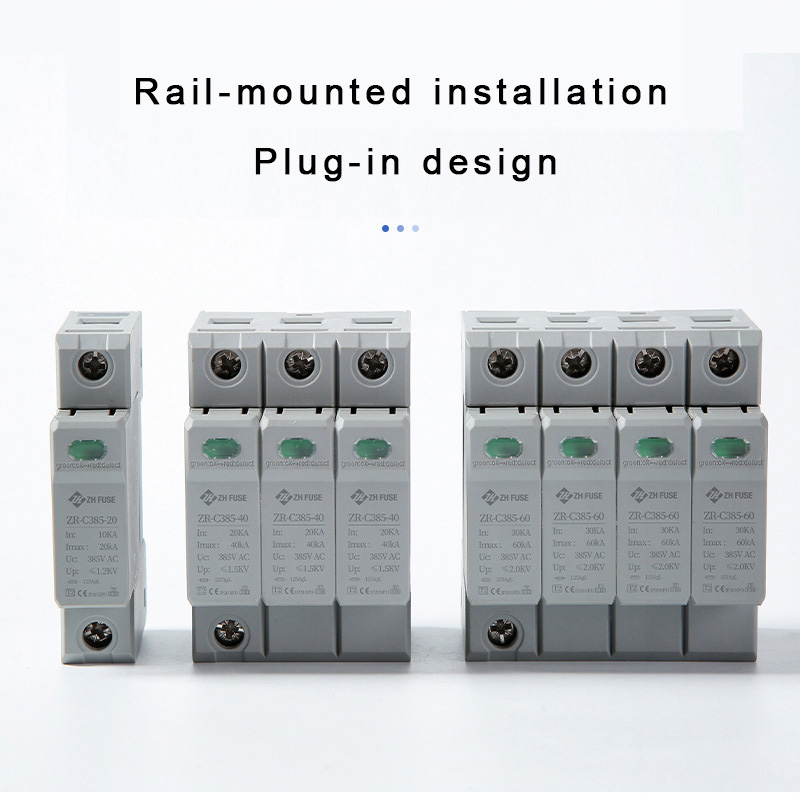

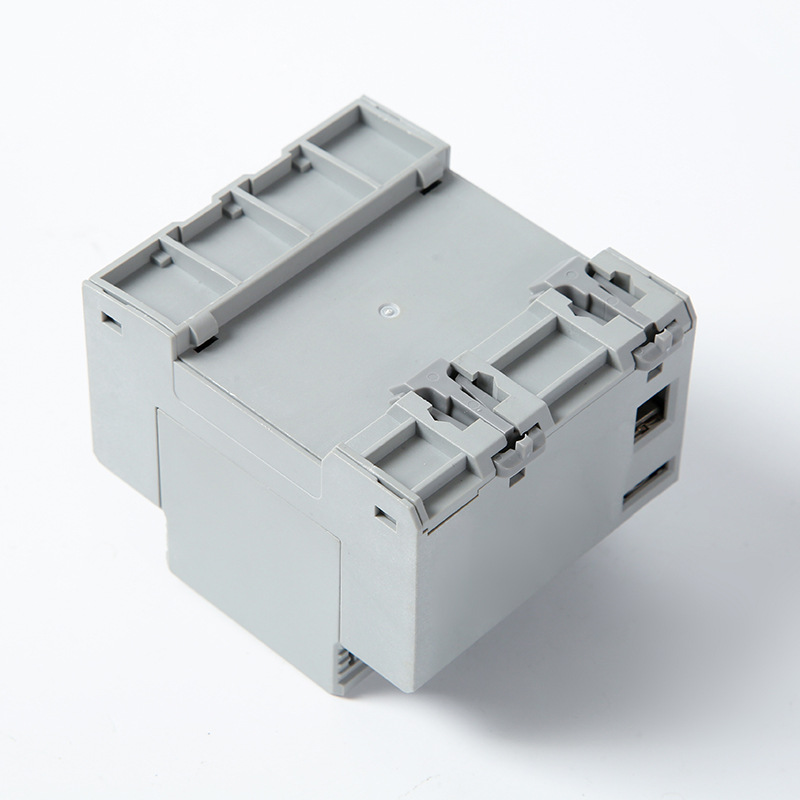

· Compact DIN-Rail Mount: Modular design (108×50×85mm) for easy installation in distribution boxes and cabinets.

· 4-Pole Configuration: Provides full protection for three-phase (L1-L2-L3-N) AC systems.

· Power Distribution Systems: Installed in main distribution cabinets, floor distribution boxes, and workshop power cabinets as secondary surge protection.

· Industrial Facilities: Protects industrial machinery, control systems, and power supply equipment from lightning and switching overvoltages.

· Commercial & Residential Buildings: Safeguards building incoming power lines, lighting systems, and household appliances from surge damage.

· Data Centers & Server Rooms: Complements higher-level SPDs to protect critical IT equipment and power distribution units (PDUs).

· Infrastructure Projects: Applied in substations, transformer stations, and outdoor power supply facilities to ensure stable operation of power grids.
