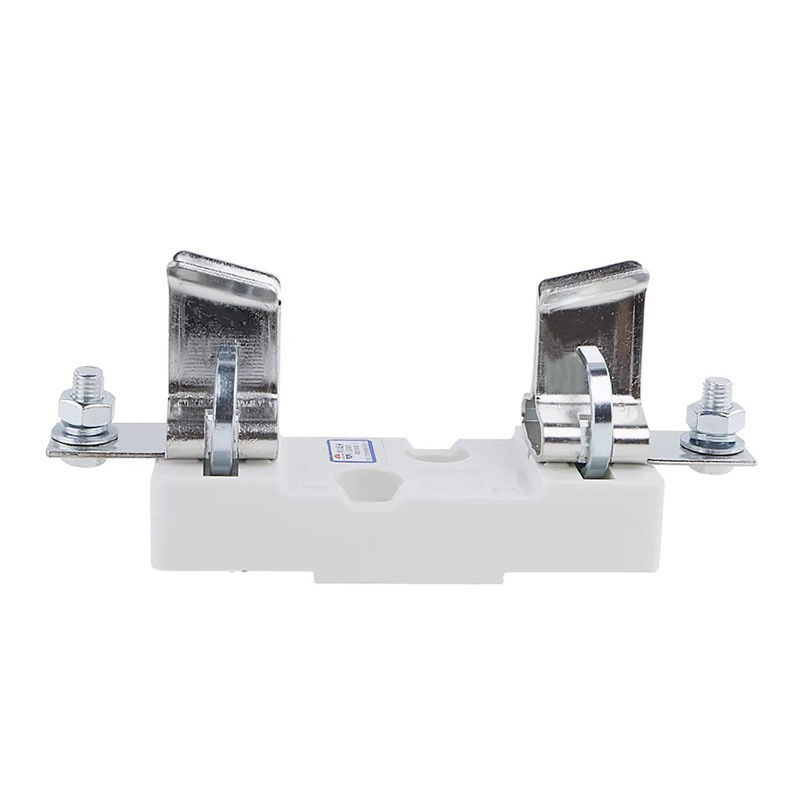

400A 500V Fuse Base
  • 400A 500V Fuse Base400A 500V Fuse Base

400A 500V Fuse Base

400A 500V Fuse Base series fuse BASE is suitable for AC 50Hz, rated voltage to 500V, rated current to 400A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for protecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs) as well as the electric motor from short circuit (aM). The 400A 500V Fuse Base rated breaking capacity is to 120KA. They conform to national standard GB13539 and international electrical committee standard IEC60269.

Introduction

400A 500V Fuse Base is a device used to mount and support a fuse. It is commonly used in electrical systems to protect circuits from overloads and short circuits. Resin material fuse bases have good insulation and corrosion resistance and are suitable for higher voltage and current environments. This type of base is usually used in electrical equipment in industrial and commercial fields. If you want to consult any more information about this product, you can contact us at any time. Zhenghao is a professional manufacturer.

Features&Benefits

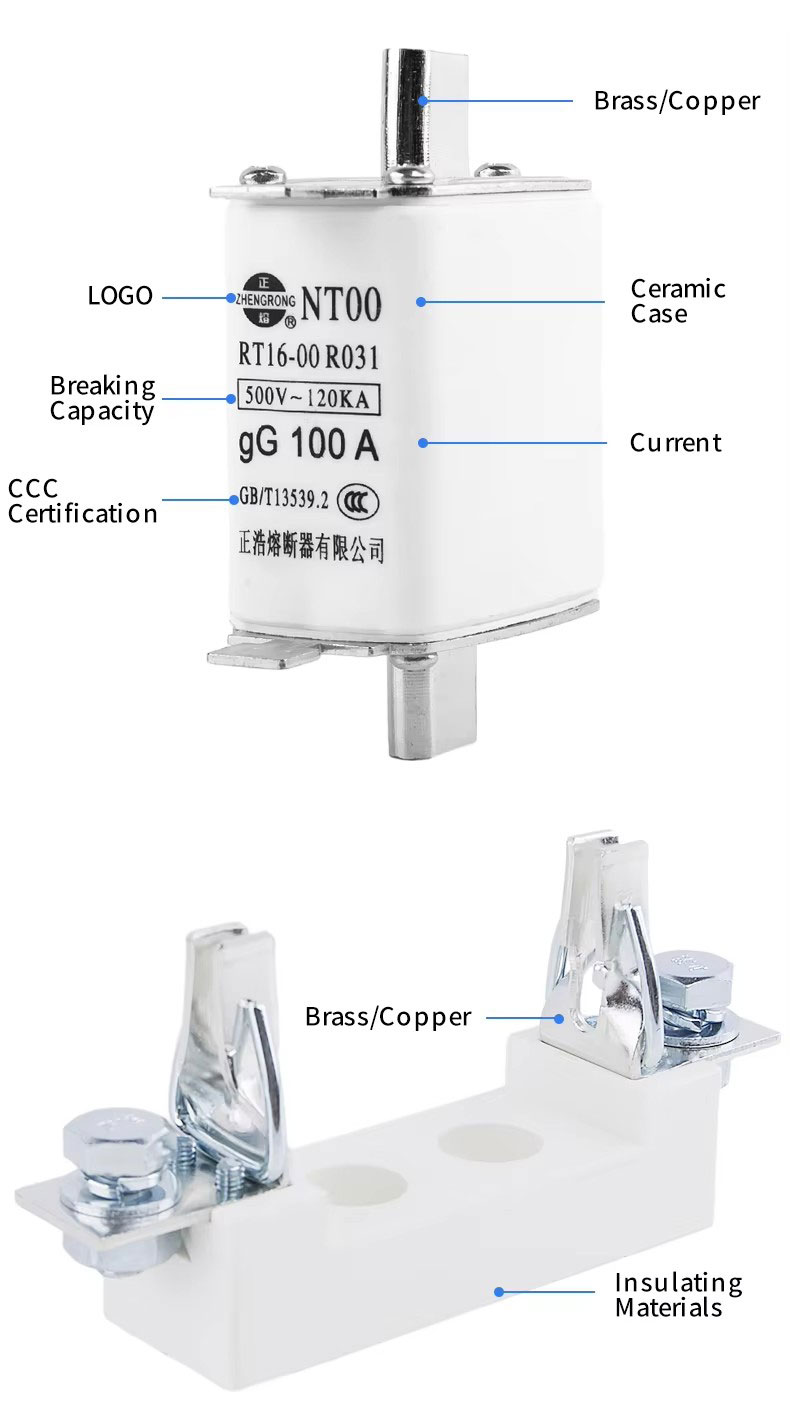

This 400A 500V Fuse Base consists of fuse link, fuse base and carrier fuse. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the square fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube.

The two sides of the 400A 500V Fuse Base use the spot welding to reliably connect with the end plate(or junction panel) and to form the square knife shape contact structure. The fuse may have fuse indicator or striker, when the fuse element fusing it can demonstrate fusing (indicator) or transforms each kind of signal as well as automatic transfer circuit (striker).

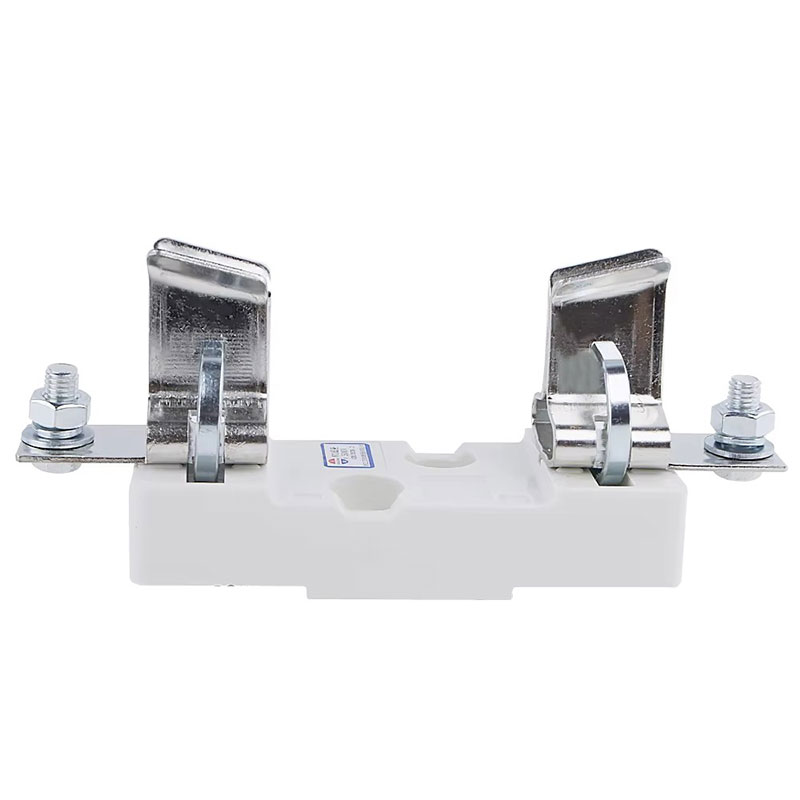

The 400A 500V Fuse Base consists of high temperature resistance resin plate(or high intensity porcelain plate) and wedge-shaped static contact to form open-type structure and it can be used as the supporting device of the appropriate size of the fuse link. This series of fuse has many merits such as good in heat dissipation, high mechanical strength, reliable in contact, convenient in performance and so on.

Application

NT2 400A 500V Fuse Base are widely used in industrial and commercial applications and are an important part of electrical systems.

Key attributes

Industry-specific attributes

Breaking Capacity High

Other attributes

Place of Origin Zhejiang, China
Rated Current 200A, 250A, 100A, 50A
Brand Name ZHENGRONG
Model Number NT2
Safety Standards IEC
Use LOW VOLTAGE
Brand ZHENGRONG
Product name NH Fuse Links and Base
Rated Voltage 500V
Rated Current 400A
Certificate CE, CCC
Color White/BLack
Service ODM/OEM
Fuse Size Customized Size
Manufacturer History 40+years
Package Standard Package

Packaging and delivery

Selling Units: Single item
Single package size: 15X7X10 cm
Single gross weight: 1.000kg

Lead time

Quantity(pieces) 1-100 101-1000 1001-10000 >10000
Lead time(days) 31 35 40 To be negotiated

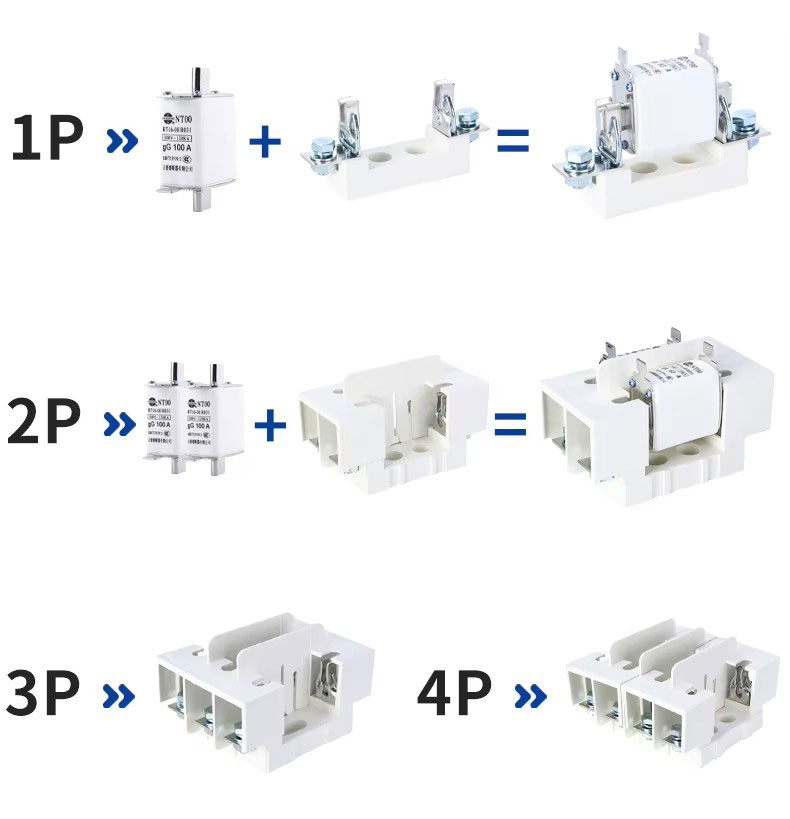

Products Display

400A 500V Fuse Base400A 500V Fuse Base400A 500V Fuse Base400A 500V Fuse Base400A 500V Fuse Base400A 500V Fuse Base

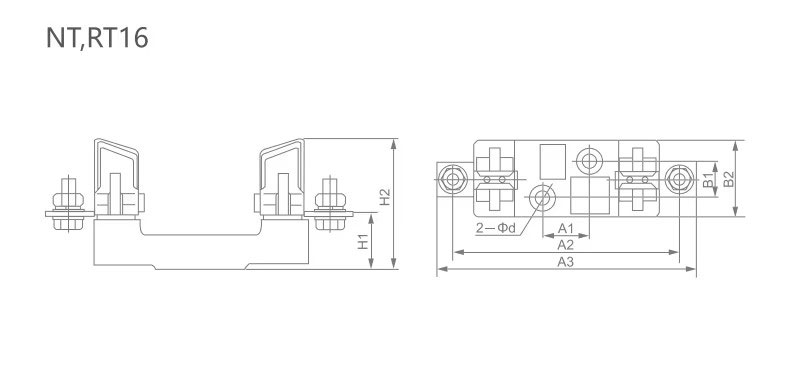

Specification

Model Dimension(mm)
A1 A2 A3 B1 B2 H1 H2 Φd
NT1, RT16-1 25 175 197 25 56 32 80 10.5
NT2, RT16-2 25 200 225 25 61 35 95 10.5
NT3, RT16-3 25 210 251 40 61 35 100 10.5
NT4, RT16-4 44 260 309 45 87 40 140 10.5

Certification

400A 500V Fuse Base

Hot Tags: 400A 500V Fuse Base, DIN fuse holder, Zhenghao manufacturer
