500-660V AC 160A BS88 Fuse Base
  • 500-660V AC 160A BS88 Fuse Base500-660V AC 160A BS88 Fuse Base

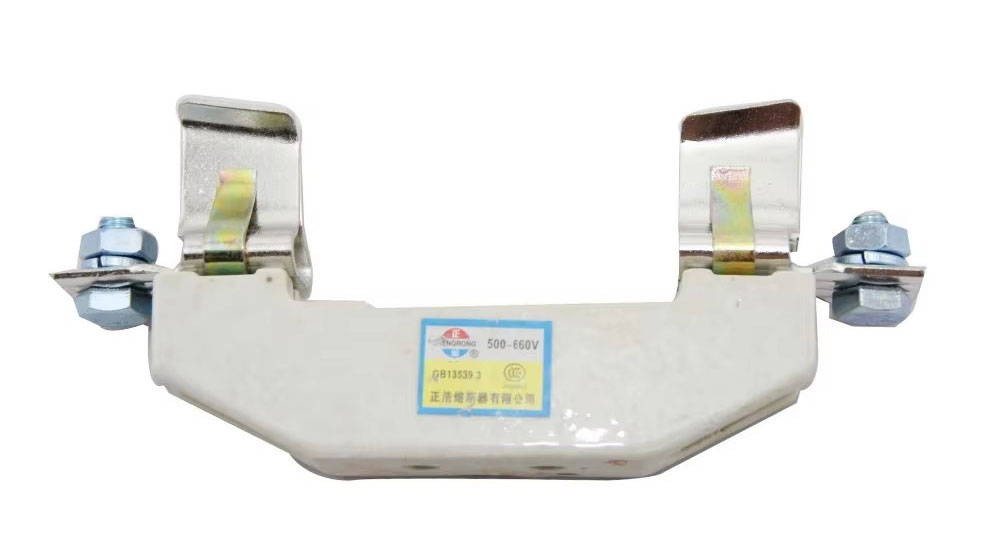

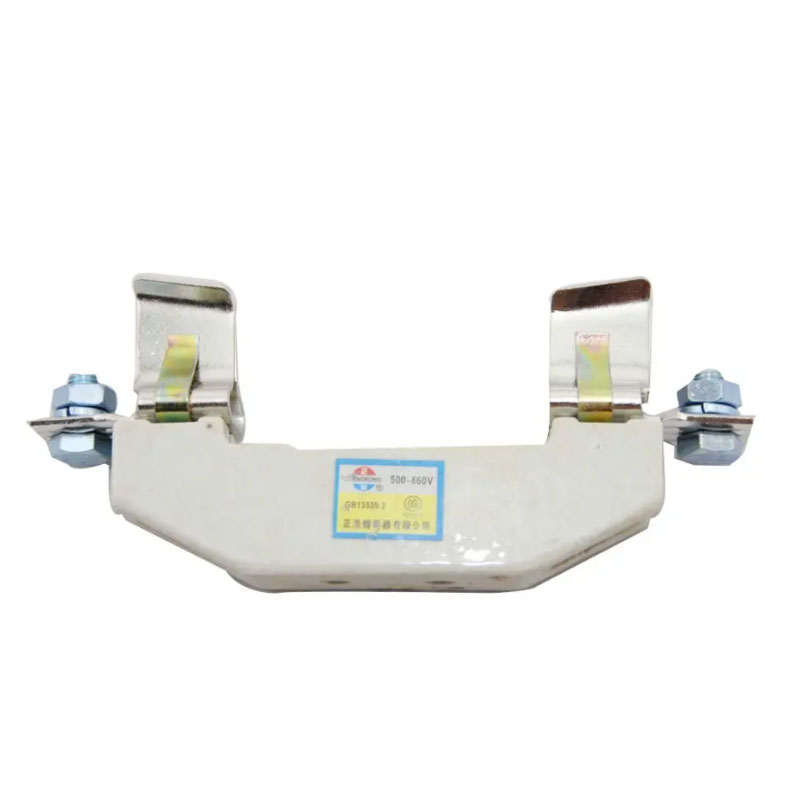

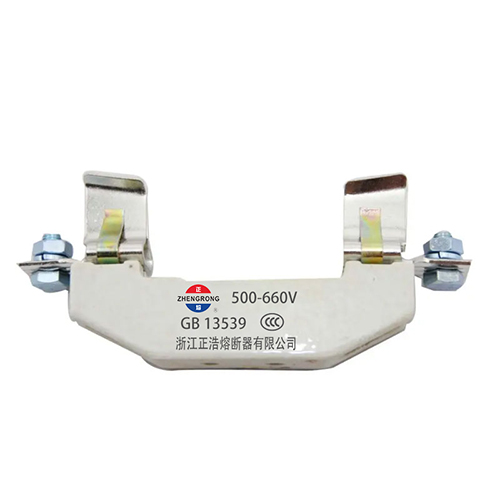

500-660V AC 160A BS88 Fuse Base

The Low Voltage 500-660V AC 160A BS88 Fuse Base is compatible with a variety of electrical systems and provides maximum protection against electrical overloads and short circuits. 500-660V AC 160A BS88 Fuse Base It is a versatile product and is an excellent option for merchants who are looking for a reliable and efficient low voltage protection system.

Introduction

HRC NH0/NT0/RT16-0 Knife Type Fuse Base
Material Ceramic, copper, PBT Series NT00(C), NT0, NT1, NT2, NT3, NT4
Rated Voltage/Current 500-600V/160A Weight 330g/pcs
Install Type Plug-in Protectio gG/aM/aR
Rated Breaking AC 100KA Package 2pcs(Inner), 72pcs(Ctn)
Pole Type 1P Carton 385*335*260mm
Certificate CE CCC Payment T/T, L/C

Features&Benefits

This series of 500-660V AC 160A BS88 Fuse Base consists of fuse link and fuse base. The fuse bases is made of high strength ceramic floor or high temperature resin floor, wedge-shaped combination of static contact. It is open structure and with good heat dissipation, high mechanical strength, access to reliable and easy to operate.

Matched with this series, NH fuse puller is used to pull the fuse from the base.The fuse body made by pure copper or silver piece(or silver wire) is sealed in the fusion tube which is made by the high strength porcelain.There is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube.The fuse may have fuse indicator or striker,when the fuse element fusing it can demonstrate fusing or transforms each kind of signal as well as automatic transfer circuit(striker).

Application

This series 500-660V AC 160A BS88 Fuse Base is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for protecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short-circuit (aM). 500-660V AC 160A BS88 Fuse Base They conform to national standard GB13539 and international electrical committee standard IEC60269.

Key attributes

Industry-specific attributes

Breaking Capacity High

Other attributes

Place of Origin Zhejiang, China
Brand Name ZHENGRONG
Model Number NT0, NH0, RT16-0 Fuse base
Safety Standards IEC
Use LOW VOLTAGE
Rated Voltage AC 500V~600V
Rated Current 160A
Certificate CE, CCC
Color White
Service ODM/OEM
Fuse Size Customized Size
Manufacturer History 40+years
Package Standard Package

Packaging and delivery

Packaging Details: Pack:2pcs(inner), 72pcs(Ctn).
Carton Size:385*335*260mm.
Weight:330g/pcs.
Tailor Made Package design accepted.
Port Ningbo Port, or any other port in China
Supply Ability 100000 Piece/Pieces per Month

Lead time

Quantity(pieces) 1-20 21-100 101-1000 >1000
Lead time(days) 7 10 15 To be negotiated

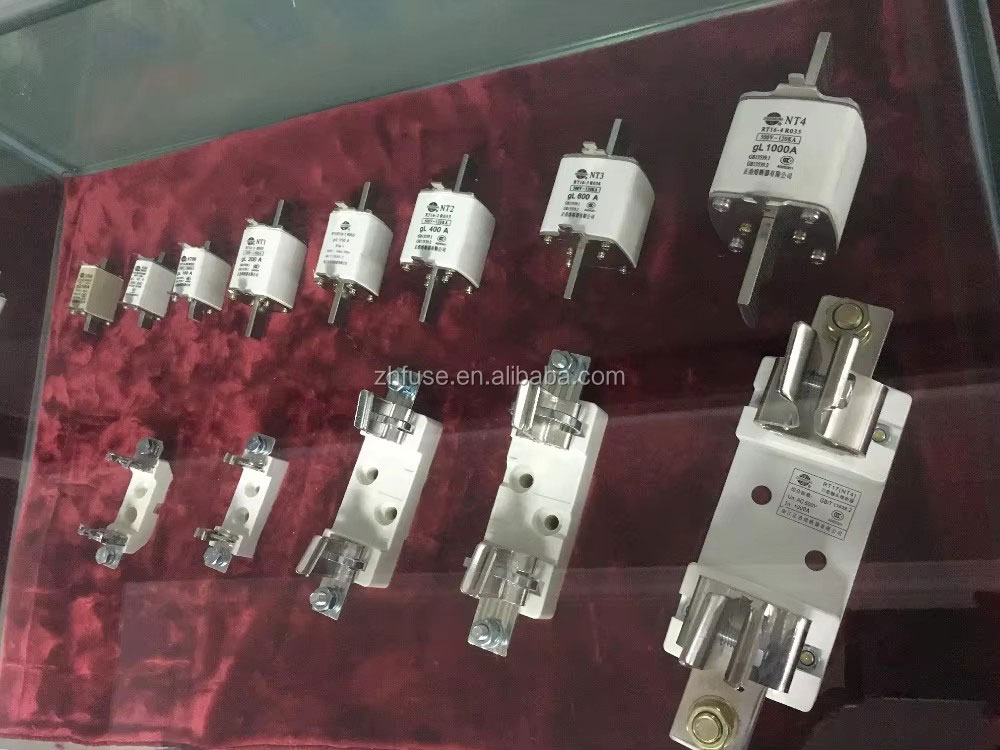

Products Display

500-660V AC 160A BS88 Fuse Base 500-660V AC 160A BS88 Fuse Base 500-660V AC 160A BS88 Fuse Base

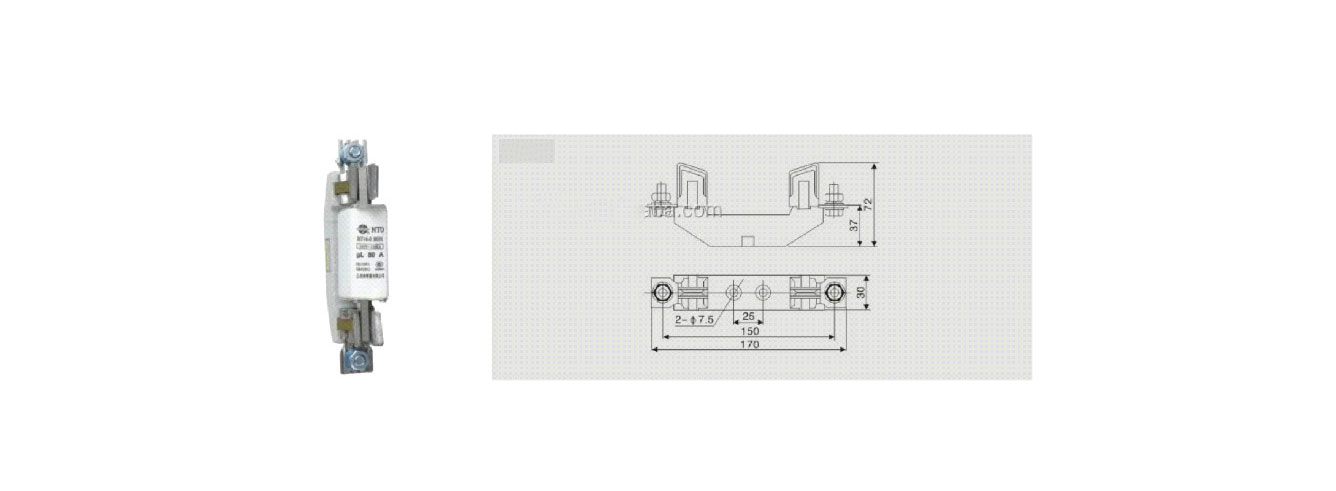

Specification

Model Dimension(mm)
A1 A2 A3 B Φd H1 H2
RT00, RT16-00 25 100 120 30 40 25 60

Certification

500-660V AC 160A BS88 Fuse Base

Hot Tags: 500-660V AC 160A BS88 Fuse Base, 160A AC fuse holder, Zhenghao factory
