500V 16A Fuse Holder
Zhejiang Zhenghao Fuse Co., Ltd. Is a professional manufacture in China. 500V 16A Fuse Holder serve to hold and support the fuse while providing electrical insulation to protect personnel and equipment, and are one of the most important accessories in an electrical system.
Introduction
500V 16A Fuse Holder is suitable for AC 50Hz, rated voltage to 500V, rated current to 16A. 500V 16A Fuse Holder It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL).
Because of different melting tablets, it also may derive for protecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs) as well as the electric motor from short circuit (aM). The rated breaking capacity is to 120KA. 500V 16A Fuse Holder They conform to national standard GB13539 and international electrical committee standard IEC60269.
Features&Benefits
500V 16A Fuse Holder consists of fuse link, fuse base and carrier fuse. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the square fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube.
The two sides of the fuse use the spot welding to reliably connect with the end plate(or junction panel) and to form the square knife shape contact structure. The fuse may have fuse indicator or striker, when the fuse element fusing it can demonstrate fusing (indicator) or transforms each kind of signal as well as automatic transfer circuit (striker).
The fuse base consists of high temperature resistance resin plate(or high intensity porcelain plate) and wedge-shaped static contact to form open-type structure and it can be used as the supporting device of the appropriate size of the fuse link. 500V 16A Fuse Holder This series of fuse has many merits such as good in heat dissipation, high mechanical strength, reliable in contact, convenient in performance and so on.
Application
Industrial fuse links for a wide variety of applications.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | NT00 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | NH Fuse Links and Base |
| Rated Voltage | AC 500V |
| Rated Current | 16A |
| Certificate | CE, CCC |
| Color | White/BLack |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 1.000kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |

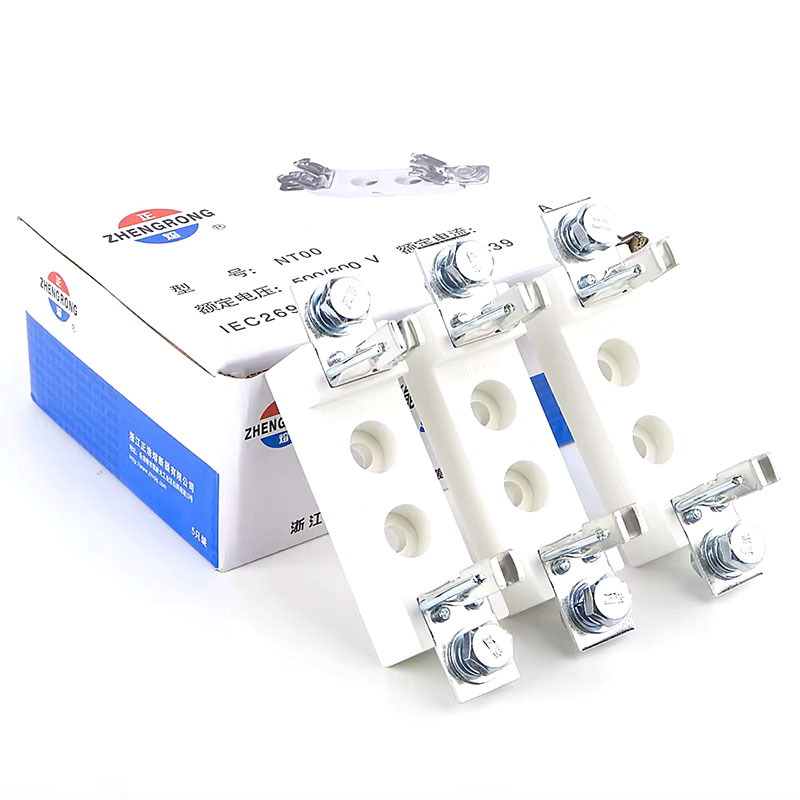

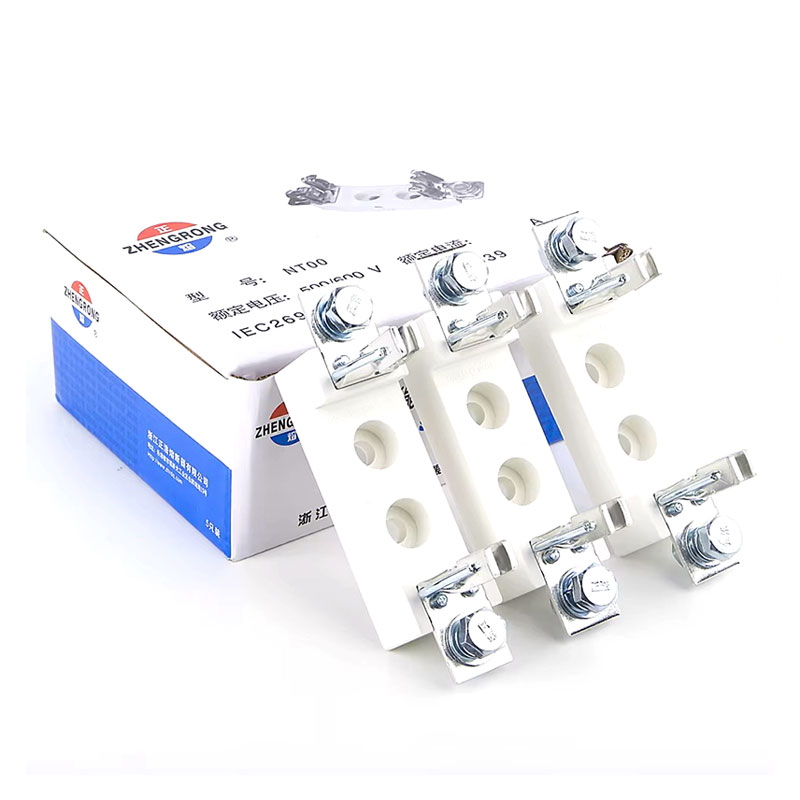

Products Display

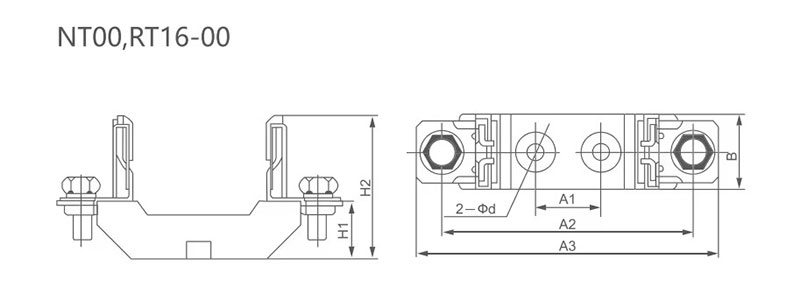

Specification
| Model | Dimension(mm) | ||||||
| A1 | A2 | A3 | B | Φd | H1 | H2 | |
| RT00, RT16-00 | 25 | 100 | 120 | 30 | 40 | 25 | 60 |
Certification
