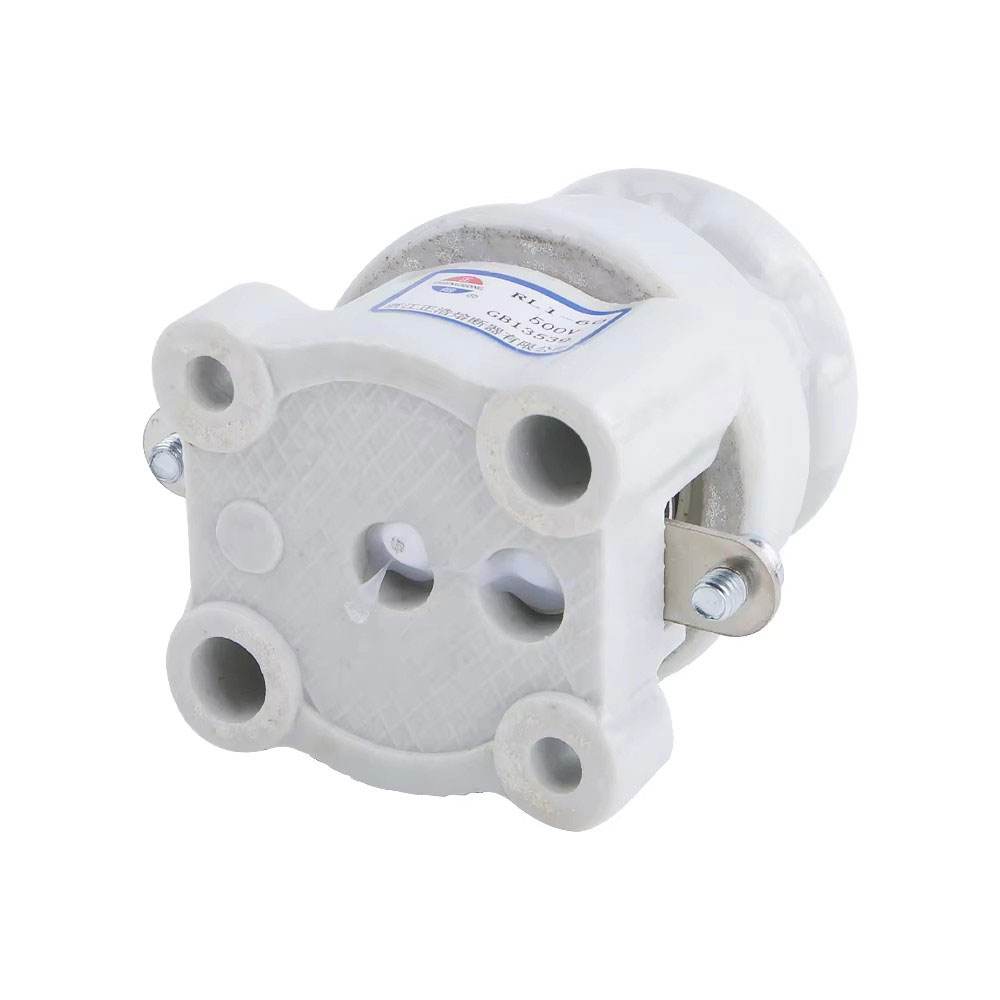

RL1 380V 60A Screw Fuse Link
RL1 380V 60A screw fuse link is an important part for installing and supporting screw fuse. The fuse base is usually made of high-temperature and corrosion-resistant materials to ensure that the fuse can be safely installed on the base.
The design and material selection of the screw in fuse base play a vital role in the performance and safety of the fuse. When selecting and installing RL1 380V 60A screw fuse link, its durability, stability and adaptability should be considered to ensure the normal operation of the fuse and provide protection when necessary.
The design and material selection of the screw in fuse base play a vital role in the performance and safety of the fuse. When selecting and installing RL1 380V 60A screw fuse link, its durability, stability and adaptability should be considered to ensure the normal operation of the fuse and provide protection when necessary.
Introduction
RL1 380V 60A Screw Fuse Link RL series of fuses bases are made up of fuse carrier and supporter. Insert the fuse into the carrier, which will be screwed into the supporter to form a complete screw fuse unit. There is a transparent glass window on the top of the fuse carrier, through which the status of the fuse can be easily observed.
It can be screw installed or rail installed.RL1 380V 60A Screw Fuse Link Supporters for D01-D03, D ~D fuses of all application II IIIkinds (gG, aM, aR) in electric lines (type gG) are capable of working under the heat caused by rated current and prospective short-circuit impacting current up to 50KA.Rated insulate voltage up to 1140V; Working frequency 50Hz AC; Rated current 200A. Compliant with GB13539.1, GB13539.3, GB13539.5 and IEC 269-1, IEC269-3 Use for RO21 RS21 RL6-25 RL93 5SB 5SD.
Features&Benefits
RL1 380V 60A screw fuse link is formed by riveting or welding after the contact and fuse carrier are installed, which can form a multiphase structure.
Open type. Single support has isolated power supply function.
Easy installation and high safety factor.
It is equipped with indicator light device to ensure that no misoperation occurs when the fuse link is disconnected.
Application
The altitude shall not exceed 2000 meters,
The ambient air temperature shall not be higher than+40 ℃, not lower than -5 ℃, and the average temperature within 24 hours shall not exceed+35 ℃
The air at the installation site shall be clean, and the relative humidity of the atmosphere shall not exceed 50% when the ambient * high temperature is 40 ℃, * the average * high relative humidity shall be 90% when the average temperature in the wet month is 25 ℃. Considering the temperature variation.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | RL1-60 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Screw Type Fuse |
| Rated Voltage | 380V |
| Rated Current | 60A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Packaging Details: |
Pack:2pcs(inner), 72pcs(Ctn). Carton Size:385*335*260mm. Weight:330g/pcs. Tailor Made Package design accepted. |
| Port | Ningbo Port, or any other port in China |
| Supply Ability | 100000 Piece/Pieces per Month |
Lead time
| Quantity(pieces) | 1-20 | 21-100 | 101-1000 | >1000 |
| Lead time(days) | 7 | 10 | 15 | To be negotiated |

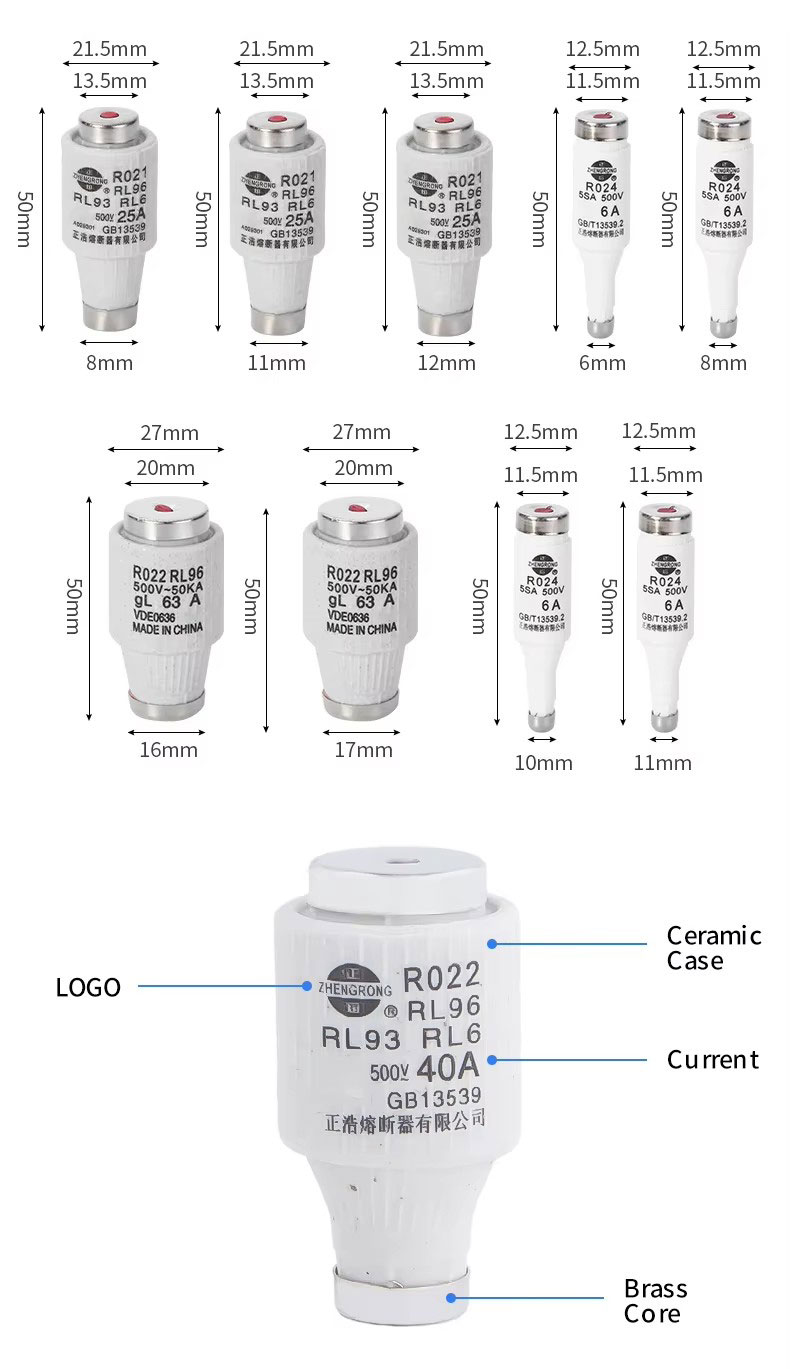

Products Display

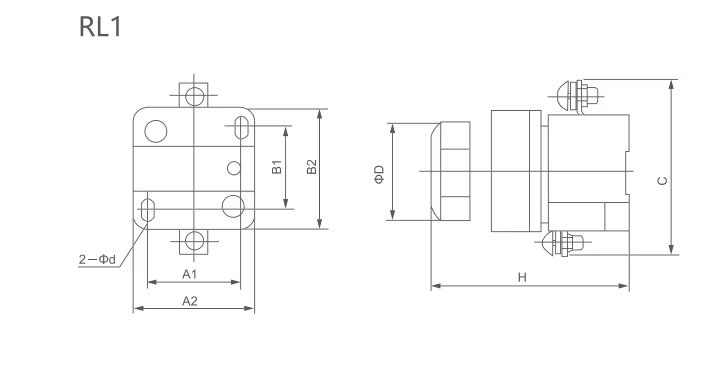

Specification
| Model | Dimension(mm) | |||||||
| A1 | A2 | B1 | B2 | C | H | ΦD | Φd | |
| RL1-15 | 24 | 34 | 27 | 41 | 65 | 60 | 33 | 5 |
| RL1-60 | 33.5 | 55 | 40 | 55 | 78 | 75 | 47 | 6 |
| RL1-100 | 45 | 66 | 53 | 72 | 118 | 105 | 67 | 8 |
| RL1-200 | 64 | 87 | 64 | 87 | 154 | 115 | 83 | 10 |
Certification
Hot Tags: RL1 380V 60A Screw Fuse Link
