Products
500V 50-63A Screw Type Fuse
The advantages of 500V 50-63A Screw Type Fuse include ease of installation, long service life, and high reliability. They play an important role in circuit protection against damage caused by circuit overloads, short circuits, and other faults.500V 50-63A Screw Type Fuse spiral fuses are suitable for circuit protection with a rated voltage of 500V and a rated current of 50-60A, and are a commonly used protective device for electrical equipment.
Introduction
500V 50-63A Screw Type Fuse with spiral contact cap is designed to protect power distribution devices with rated voltage of 500V AC and rated current up to 63A from overload and short circuit damage. When 500V 50-63A Screw Type Fuse is installed in the isolation fuse, a fuse connection with latch is provided to prevent single-phase operation of the motor.
Features&Benefits
High security
Simple operation
Affordable price
Complete certificates
Application
These 500V 50-63A Screw Type Fuse are commonly used in household circuits, industrial equipment, and other electrical devices to protect them from damage caused by current overloads.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | R022 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Screw Type Fuse |
| Rated Voltage | 500V |
| Rated Current | 50-63A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Packaging Details: |
Pack:2pcs(inner), 72pcs(Ctn). Carton Size:385*335*260mm. Weight:330g/pcs. Tailor Made Package design accepted. |
| Port | Ningbo Port, or any other port in China |
| Supply Ability | 100000 Piece/Pieces per Month |
Lead time
| Quantity(pieces) | 1-20 | 21-100 | 101-1000 | >1000 |
| Lead time(days) | 7 | 10 | 15 | To be negotiated |

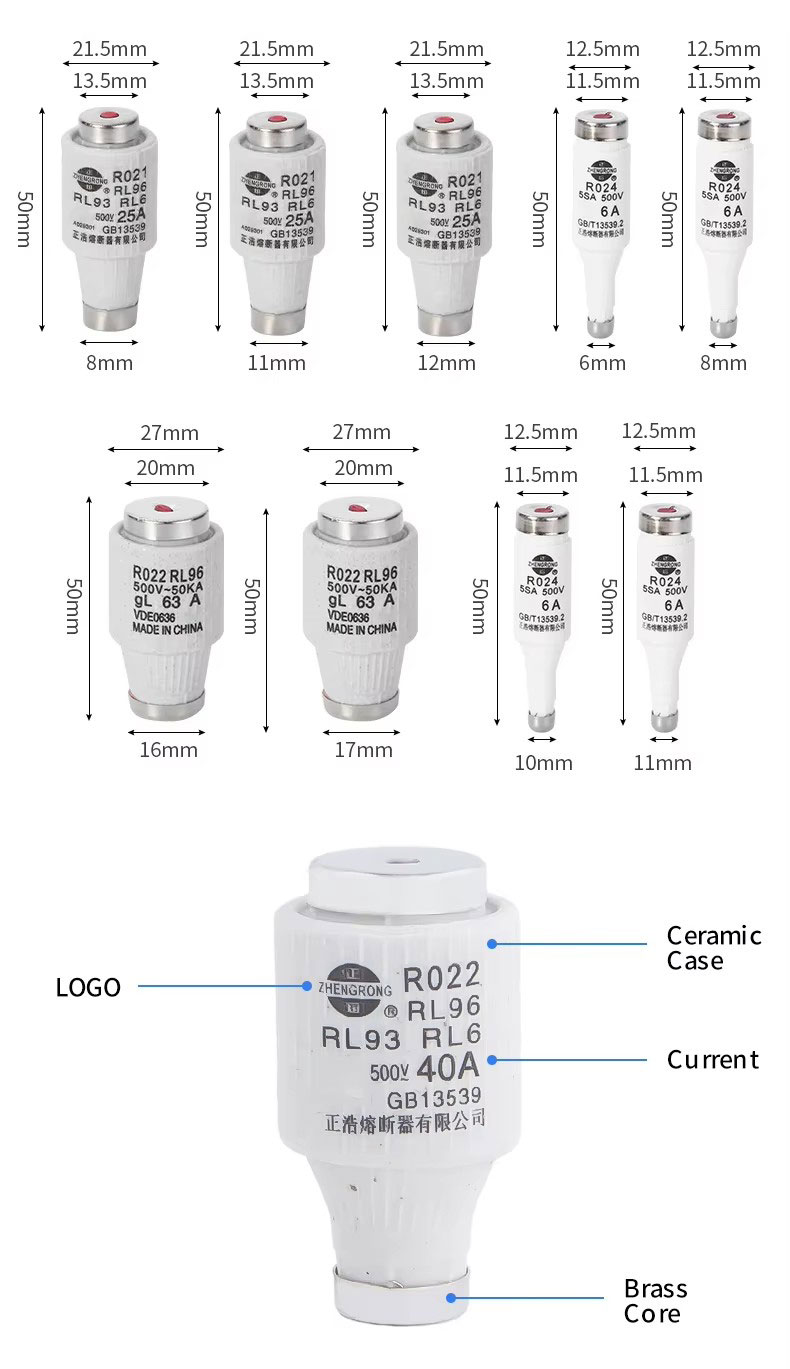

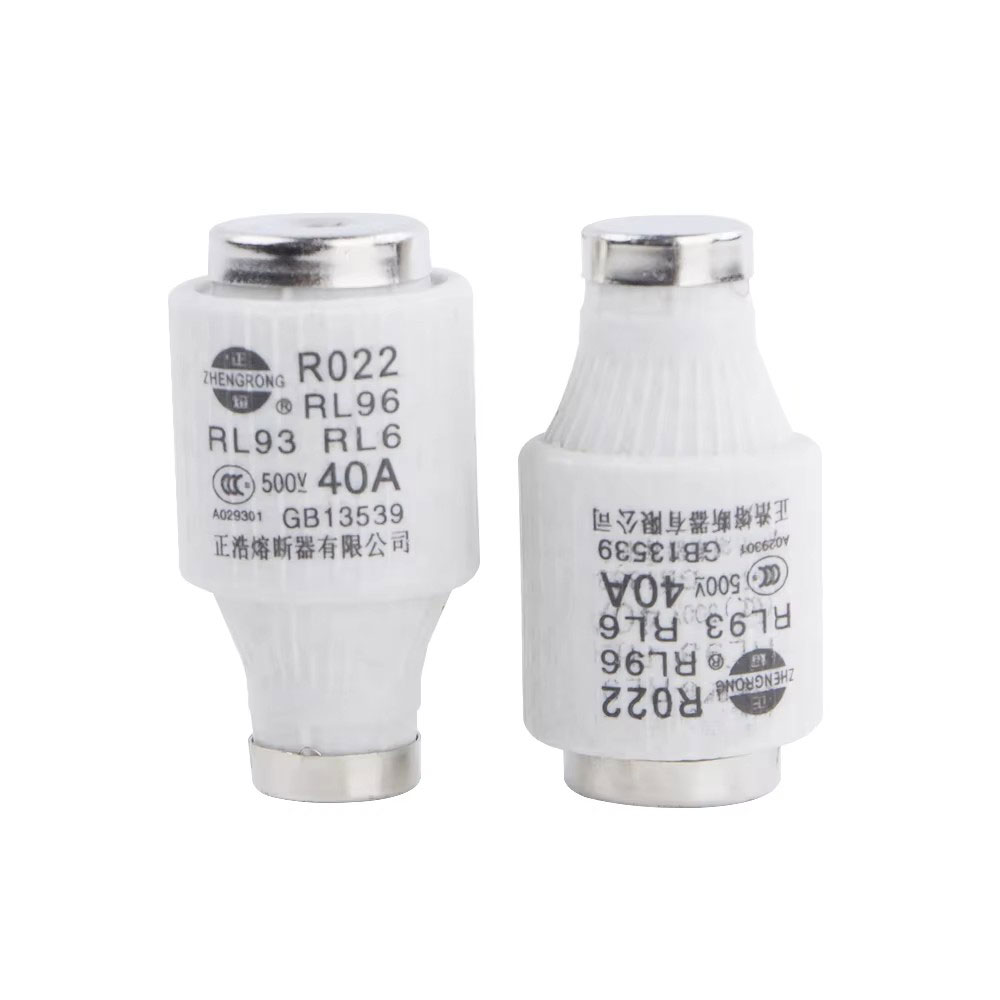

Products Display

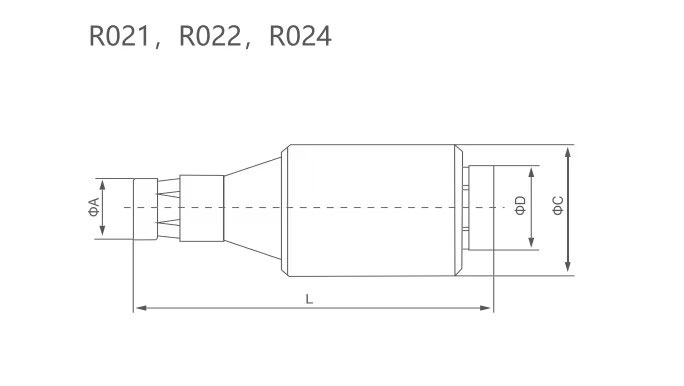

Specification
| Model | Dimension(mm) | ||||
| Ordinary | Fast | ΦA | ΦC | ΦD | L |
|
R021, RL6-25 |
RS21 | 8 | 21.5 | 13.5 | 50 |
| 8 | 21.5 | 13.5 | 50 | ||
| 11 | 21.5 | 13.5 | 50 | ||
| 12 | 21.5 | 13.5 | 50 | ||
| 12 | 21.5 | 13.5 | 50 | ||
|
R022, RL6-63 |
RS22 | 16 | 27 | 19 | 50 |
| 17 | 27 | 19 | 50 | ||
|
R024, 5SA |
/ | 6 | 12.5 | 11.5 | 50 |
| 8 | 12.5 | 11.5 | 50 | ||
| 10 | 12.5 | 11.5 | 50 | ||
| 11 | 12.5 | 11.5 | 50 | ||
Certification
