Products

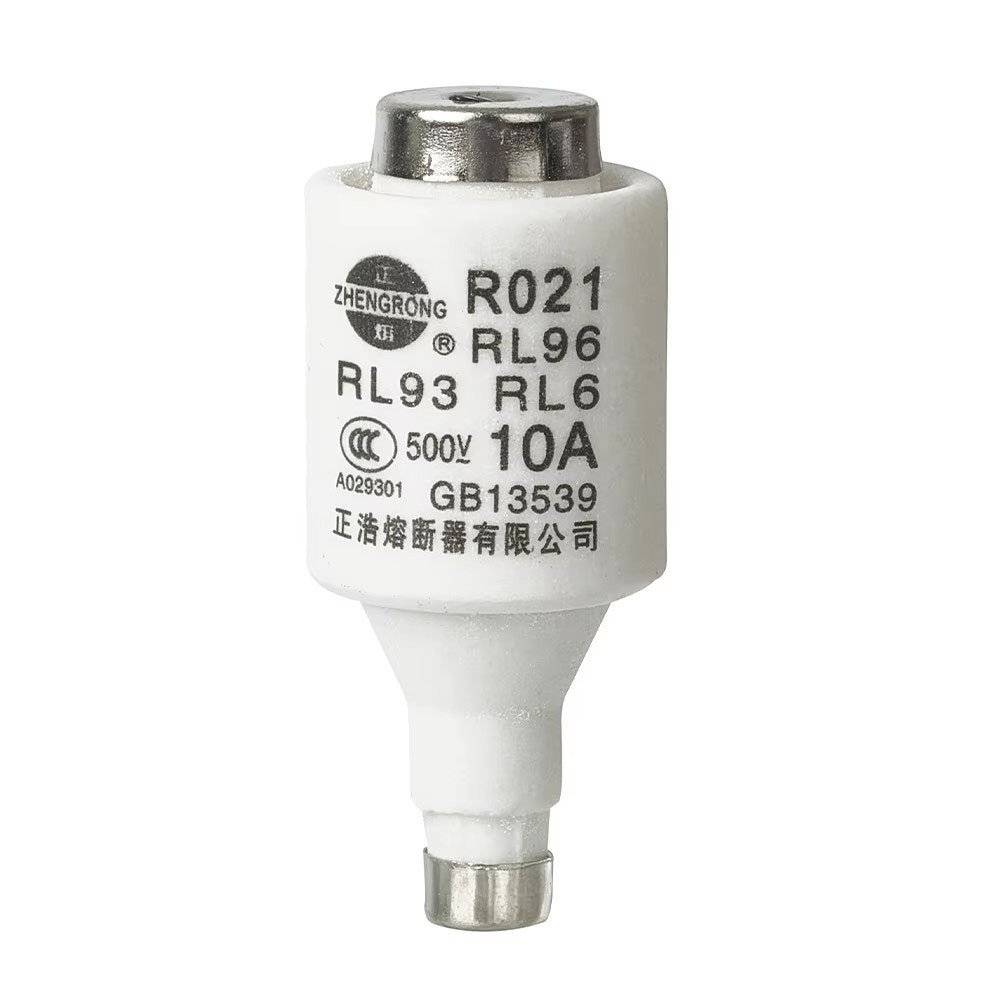

10A 500V Screw Type Fuse Links
10A 500V screw type fuse links has a filler closed tubular cap shape, with a rated working voltage of AC (50Hz) to 500V and a rated current of 125A. It mainly provides overload and short-circuit protection for electrical lines. It can also be derived from semiconductor devices and their complete set of short circuit protection (AR) and motor short circuit protection (AM). The rated breaking capacity of 10A 500V screen type fuse is 100kA. Welcome to buy.
Introduction
As a company with more than 40 years in the fuse industry, it has been working hard to solve various problems for customers at this track, Recommend the best products to customers who need them. We only sell the right products, not expensive ones. 10A 500V screw type fuse links are usually composed of wires and insulation. When the current exceeds the rated value, the insulation is heated and melted, thus cutting off the circuit. 10A 500V screw type fuse links are usually used for household circuits, industrial equipment and other electrical equipment to protect them from damage caused by current overload.
Features&Benefits
Small volume
Easy to operate
High safety factor
High quality materials
Application
Household circuit
industrial equipment
Electrical equipment, etc
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | R021 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Screw Type Fuse |
| Rated Voltage | 500V |
| Rated Current | 2-6, 10, 16, 20, 25A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Packaging Details: |
Pack:2pcs(inner), 72pcs(Ctn). Carton Size:385*335*260mm. Weight:330g/pcs. Tailor Made Package design accepted. |
| Port | Ningbo Port, or any other port in China |
| Supply Ability | 100000 Piece/Pieces per Month |
Lead time
| Quantity(pieces) | 1-20 | 21-100 | 101-1000 | >1000 |
| Lead time(days) | 7 | 10 | 15 | To be negotiated |

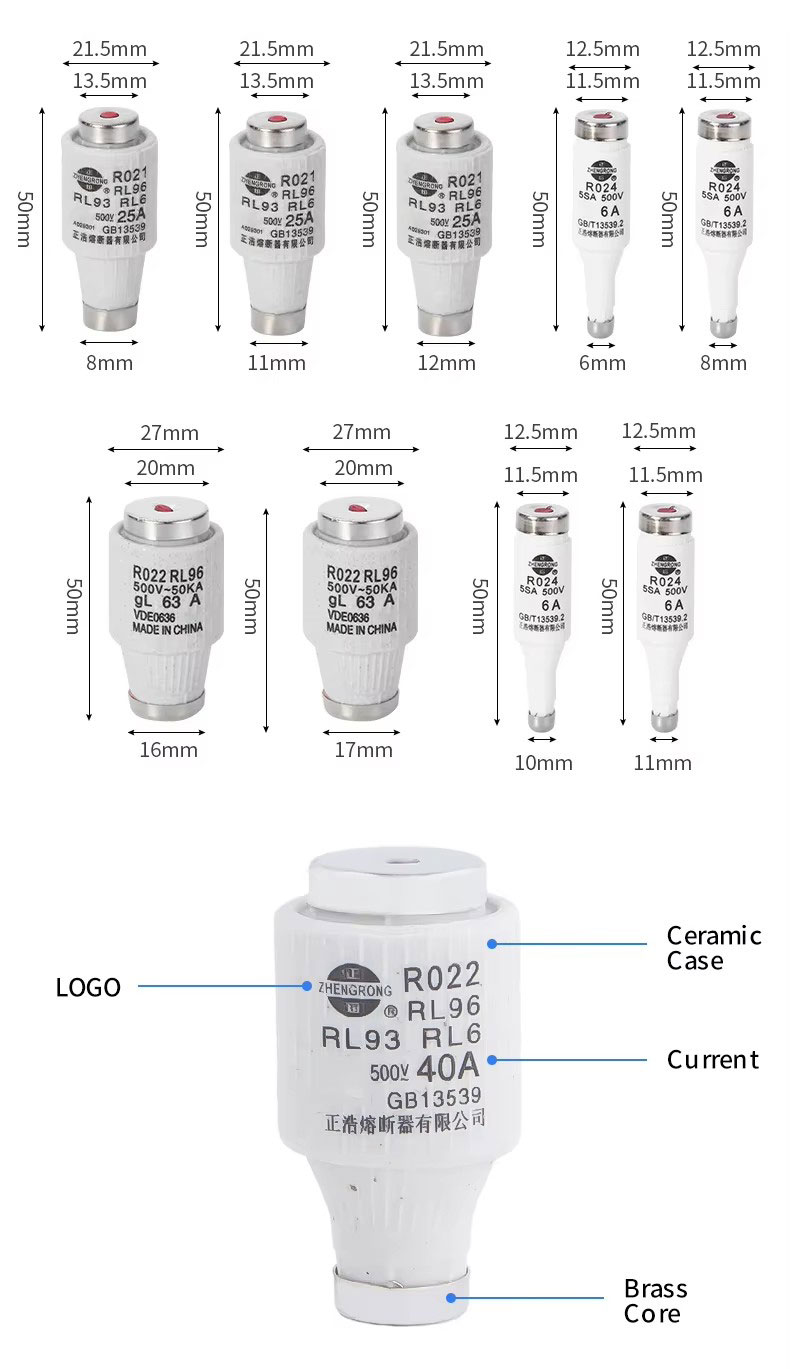

Products Display

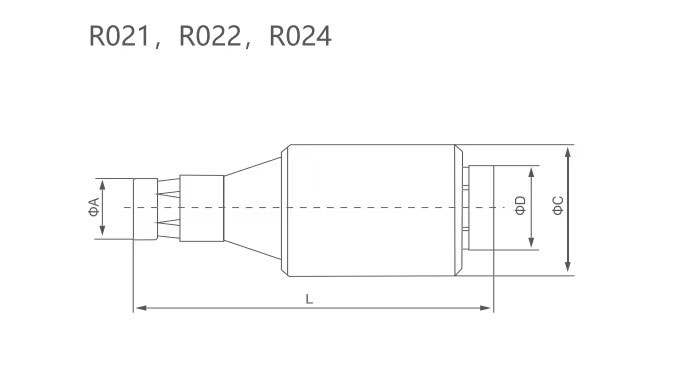

Specification
| Model | Dimension(mm) | ||||
| Ordinary | Fast | ΦA | ΦC | ΦD | L |
|
R021, RL6-25 |
RS21 | 8 | 21.5 | 13.5 | 50 |
| 8 | 21.5 | 13.5 | 50 | ||
| 11 | 21.5 | 13.5 | 50 | ||
| 12 | 21.5 | 13.5 | 50 | ||
| 12 | 21.5 | 13.5 | 50 | ||
|
R022, RL6-63 |
RS22 | 16 | 27 | 19 | 50 |
| 17 | 27 | 19 | 50 | ||
|
R024, 5SA |
/ | 6 | 12.5 | 11.5 | 50 |
| 8 | 12.5 | 11.5 | 50 | ||
| 10 | 12.5 | 11.5 | 50 | ||
| 11 | 12.5 | 11.5 | 50 | ||
Certification
Hot Tags: 10A 500V Screw Type Fuse Links
