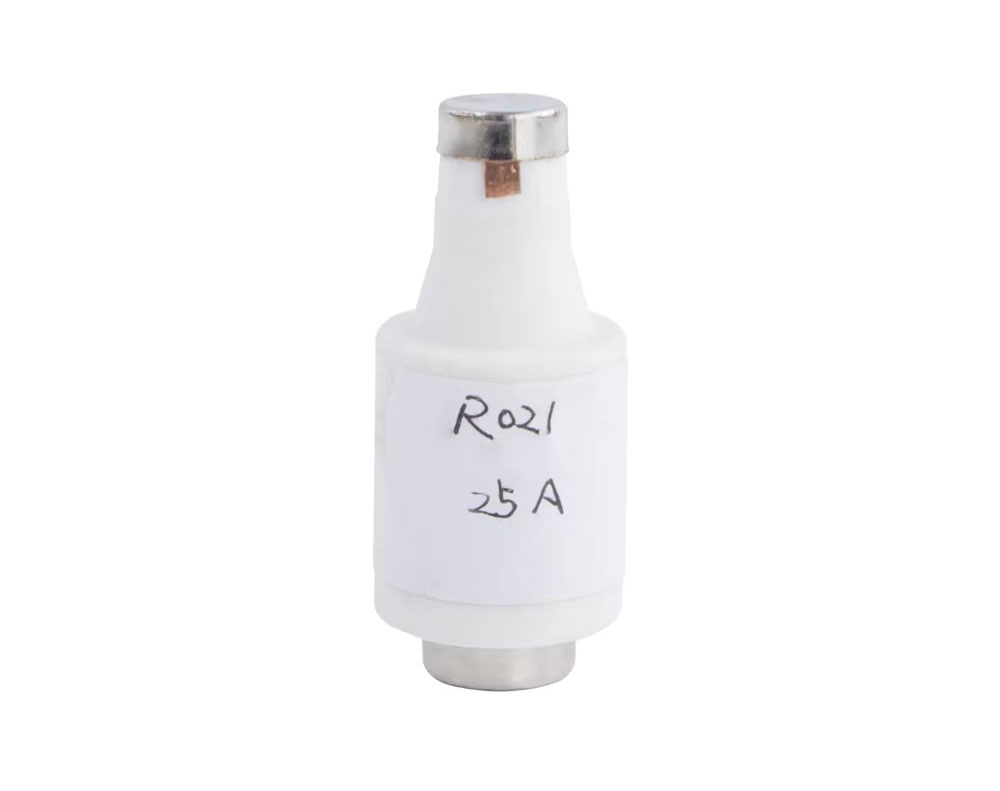

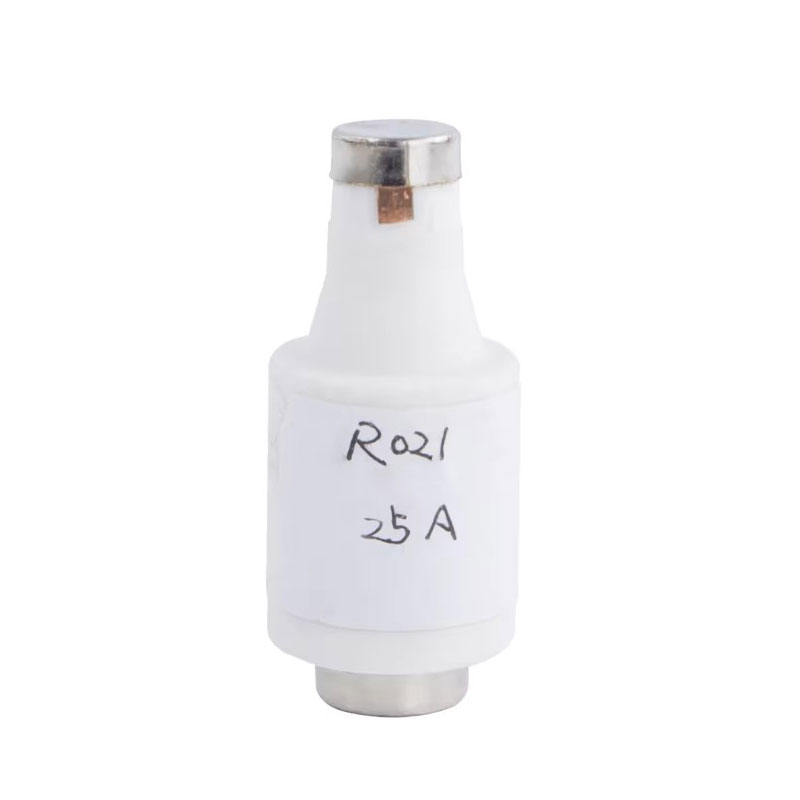

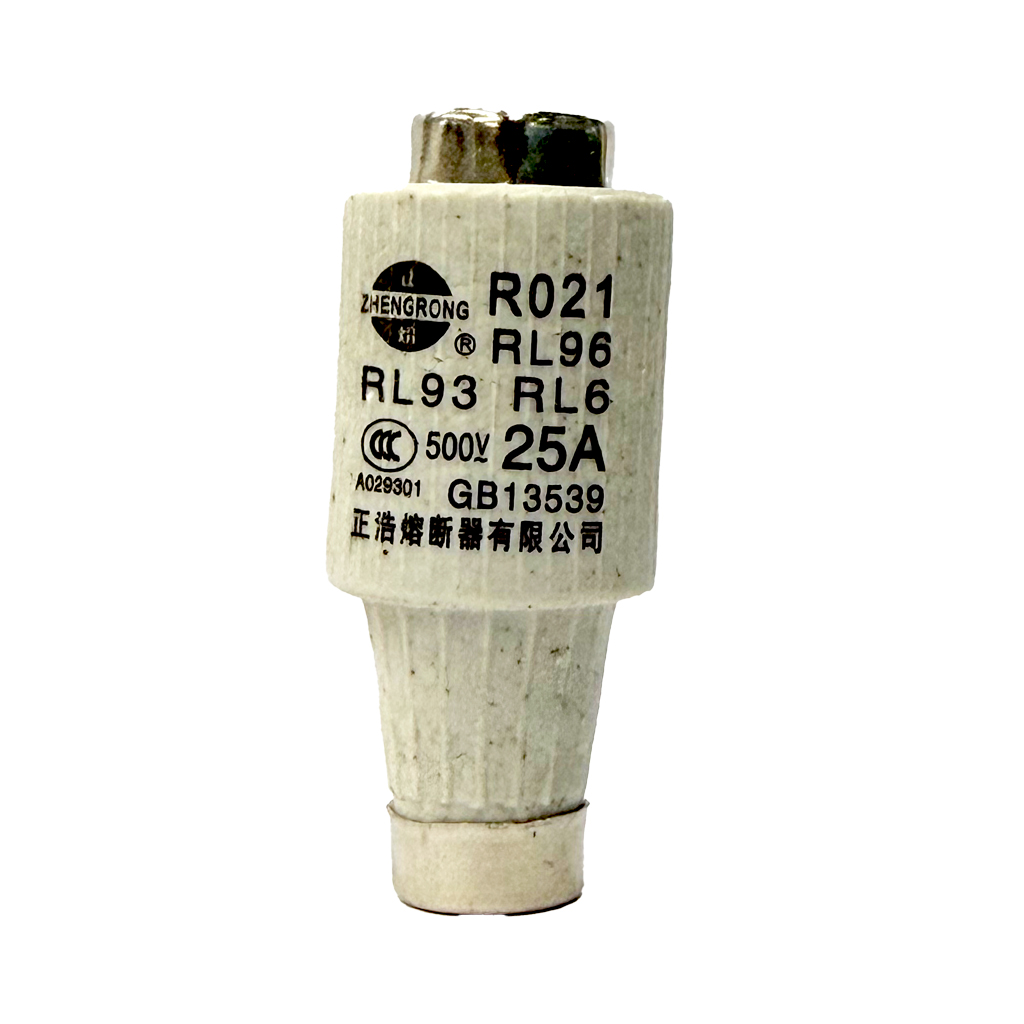

500V 25A Scerw Type Fuse
The advantages of 500V 25A Scerw Type Fuse include ease of installation, long service life, and high reliability. They play an important role in circuit protection against damage caused by circuit overloads, short circuits, and other faults.500V 25A Scerw Type Fuse are suitable for circuit protection with a rated voltage of 500V and a rated current of 10A, and are a commonly used protective device for electrical equipment.
Introduction
The base of 500V 25A Scerw Type Fuse is usually composed of conductor and insulating layer. When the current exceeds the rated value, the insulating layer is heated and melted, so as to cut off the circuit.
500V 25A Scerw Type Fuse These fuses are usually used for household circuits, industrial equipment and other electrical equipment to protect them from damage caused by current overload. As a manufacturer and manufacturer specializing in the production of 500V 25A Scerw Type Fuse, we adhere to the concept of supreme quality and service to solve problems for customer service. Welcome to consult.
Features&Benefits
Simple operation
Good quality assurance
High security
Certificate authentication
factory outlet
Application
These fuses are commonly used in household circuits, industrial equipment, and other electrical devices to protect them from damage caused by current overloads.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | R021 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Screw Type Fuse |
| Rated Voltage | 500V |
| Rated Current | 2-6, 10, 16, 20, 25A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Packaging Details: |
Pack:2pcs(inner), 72pcs(Ctn). Carton Size:385*335*260mm. Weight:330g/pcs. Tailor Made Package design accepted. |
| Port | Ningbo Port, or any other port in China |
| Supply Ability | 100000 Piece/Pieces per Month |
Lead time
| Quantity(pieces) | 1-20 | 21-100 | 101-1000 | >1000 |
| Lead time(days) | 7 | 10 | 15 | To be negotiated |
Products Display

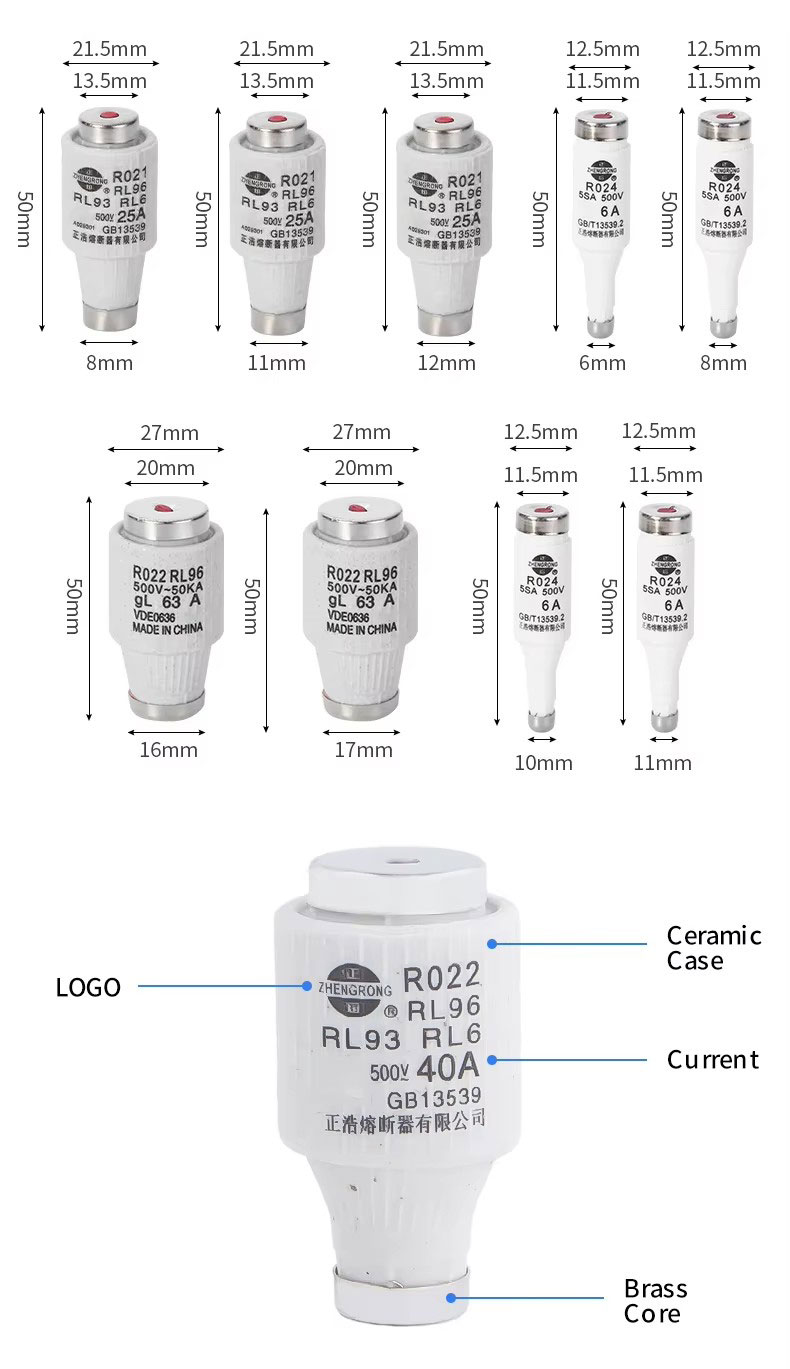

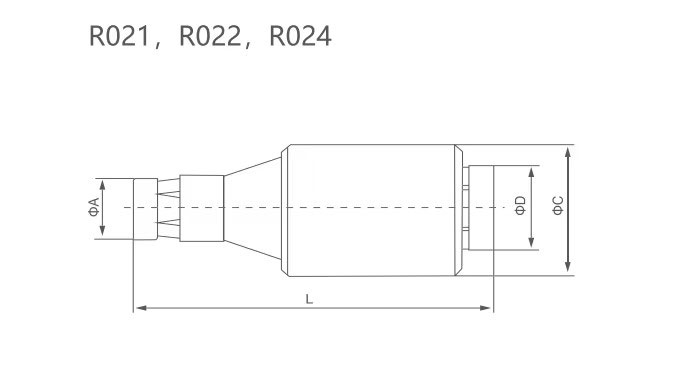

Specification
| Model | Dimension(mm) | ||||
| Ordinary | Fast | ΦA | ΦC | ΦD | L |
|
R021, RL6-63 |
RS21 | 8 | 21.5 | 13.5 | 50 |
| 8 | 21.5 | 13.5 | 50 | ||
| 11 | 21.5 | 13.5 | 50 | ||
| 12 | 21.5 | 13.5 | 50 | ||
| 12 | 21.5 | 13.5 | 50 | ||
|
R022, rl6-63 |
RS22 | 16 | 27 | 19 | 50 |
| 17 | 27 | 19 | 50 | ||
|
R024, 5AS |
/ | 6 | 12.5 | 11.5 | 50 |
| 8 | 12.5 | 11.5 | 50 | ||
| 10 | 12.5 | 11.5 | 50 | ||
| 11 | 12.5 | 11.5 | 50 | ||
Certification
