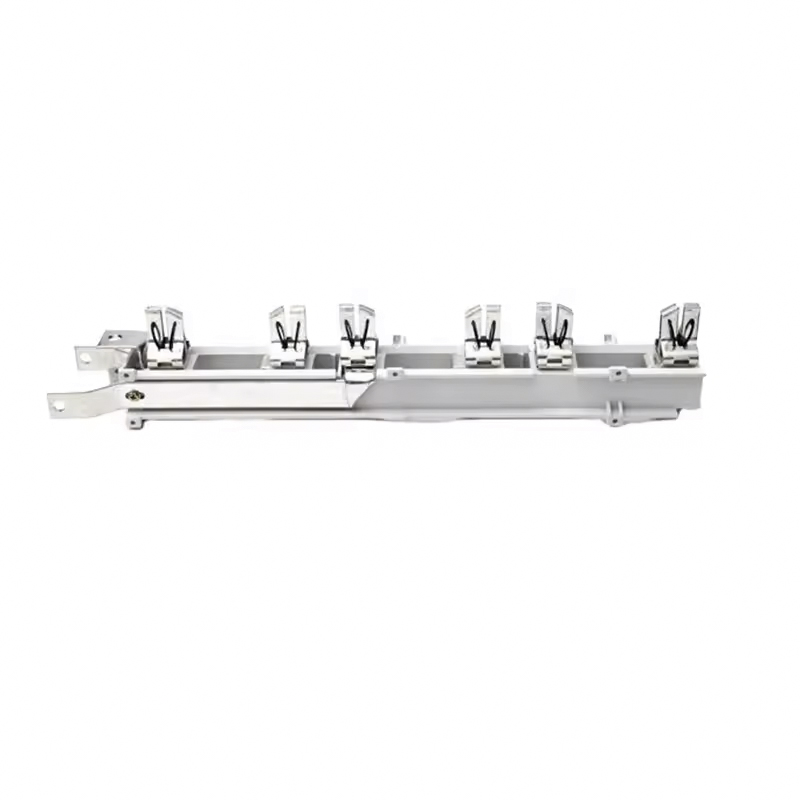

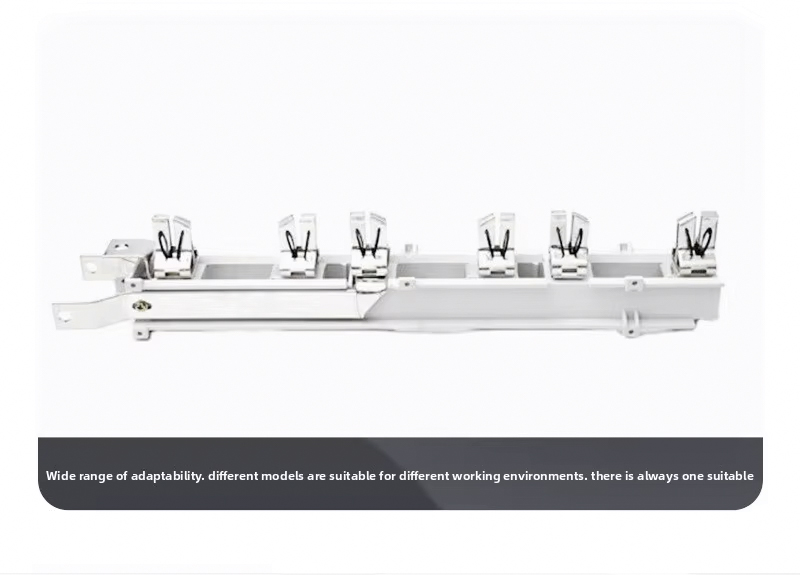

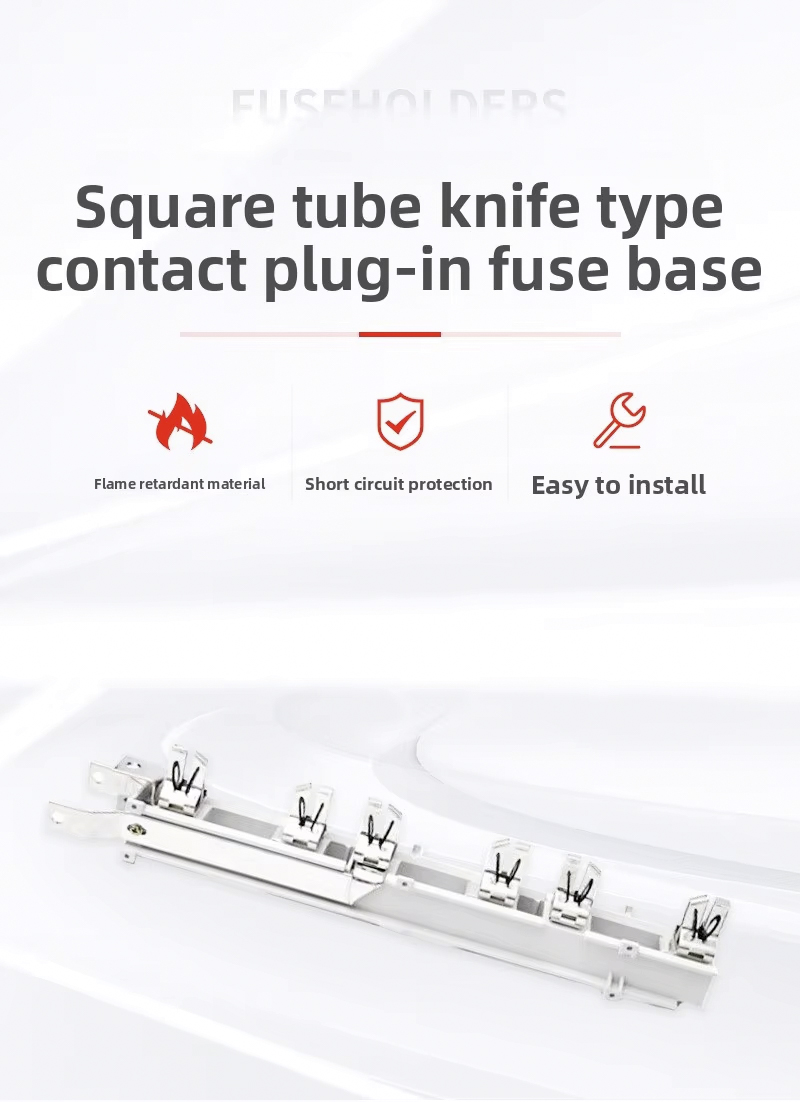

NT2-3P Fuse Base Blade CE

Product：

The NT2 series low-voltage fuse base (3P model) produced by ZHENGRONG is mainly used to provide overload and short-circuit protection in low-voltage distribution systems. By installing fuse links (cores) in series with the circuit, the current is cut off when the circuit fails to protect equipment and line safety

Its working principle is based on the core structure and characteristics of the fuse: the base serves as a fixed component, connecting the circuit through contacts and wiring terminals, and the fuse link (including the melt) is installed on the base to form a path

During normal operation, current flows through the melt, and the heat generated by the melt is not sufficient to cause it to melt; When the circuit is overloaded or short circuited, excessive current passes through the melt, and the heat generated by it causes the melt to melt (the melt material is low melting point lead tin alloy or high melting point copper, silver, etc., and the melting characteristics are controlled by narrow neck or mesh structure design), thereby cutting off the circuit. Some fuse links are also equipped with a melting indicator, which pops up a red signal after the melt melts, making it easy to troubleshoot. The 3P model is suitable for three-phase circuits and can protect three-phase lines at the same time.

Feature

Easy to replace

compact size

Rectangular design:The main body is elongated and can be extended along its length, accommodating workpieces or equipment of varying sizes.

Multi connector layout:The connectors with holes at both ends and in the middle support flexible fixation, and the spacing or angle can be adjusted according to needs.

Metal material:Using metal materials such as aluminum alloy, stainless steel, etc., it has high strength and durability, and is suitable for industrial and outdoor environments.

Application

High-speed rail

Urban and power grid

Enterprise factory

Installation of photovoltaic power station:It can be used as an installation base for fixtures, and through the coordination of connectors, clamping components, and directional components, it can achieve rapid clamping and angle adjustment of strip workpieces, improving the convenience of operation in industrial processing.

Industrial processing and fixture fixation:In rooftop distributed photovoltaic power plants, it can be used as the basic component of the bracket, fixed by screw connection or pouring method, suitable for scenarios such as concrete flat roofs, to enhance the overall load-bearing capacity of the structure.

Key attributes

Packaging and delivery
