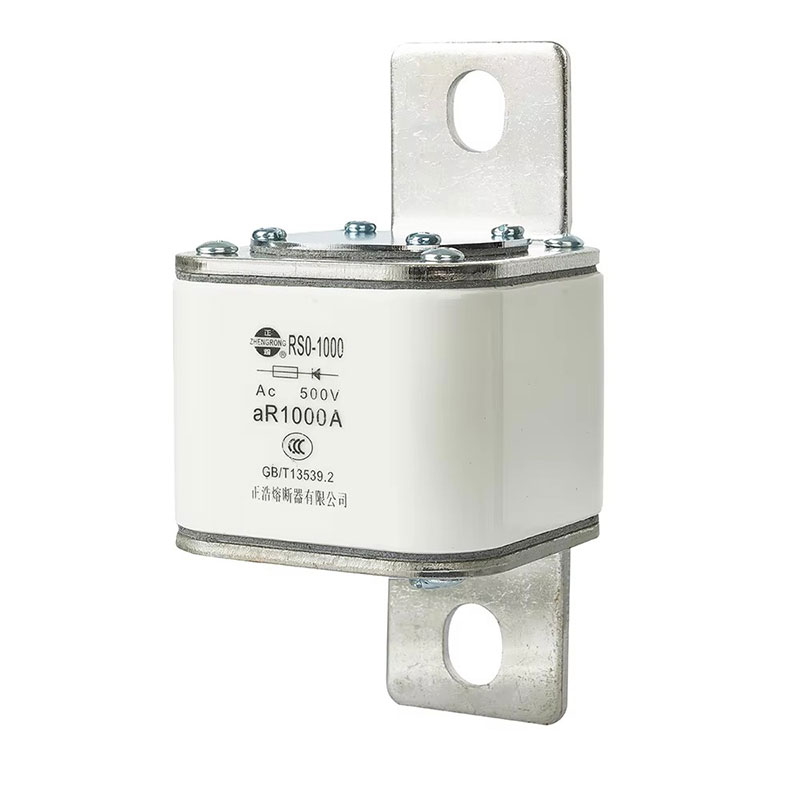

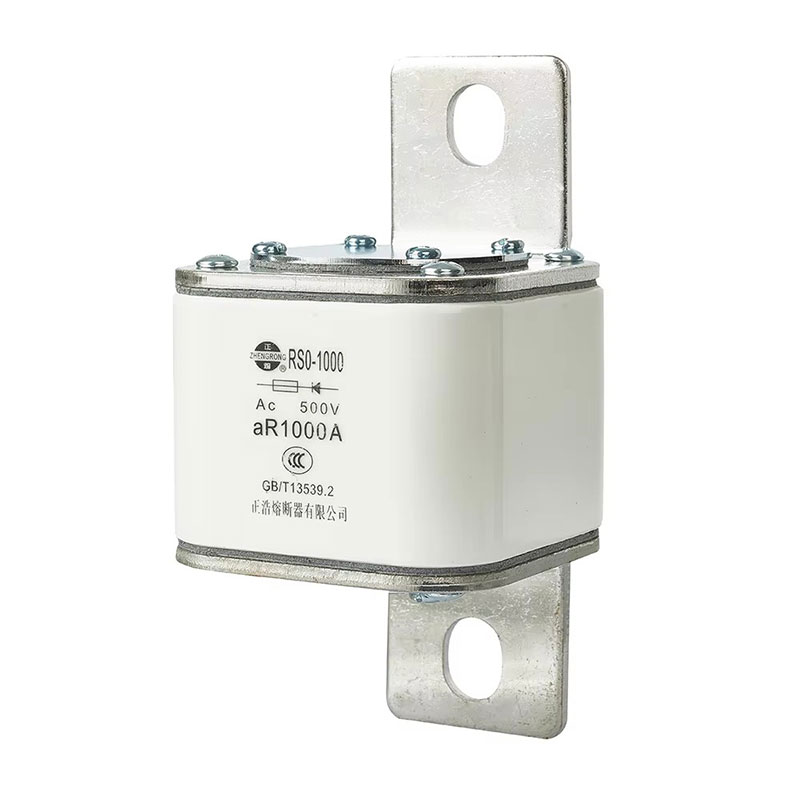

1000A 500V Square Bolted Fuse
According to customer requirements, Zhenghao have designed a 1000A 500V square bolted fuse with a voltage of 1000V AC and a current of 500A. It belongs to the AR type and has a disconnect capacity of 50kA. The 1000A 500V square bolt fuse product has passed certification, with IEC60269-4 qualification and ROHS, CE national certificate certification, etc, it can be used in various automobiles or power systems to enhance current protection. When the circuit voltage is too high, the current should be cut off in a timely manner.
Introduction

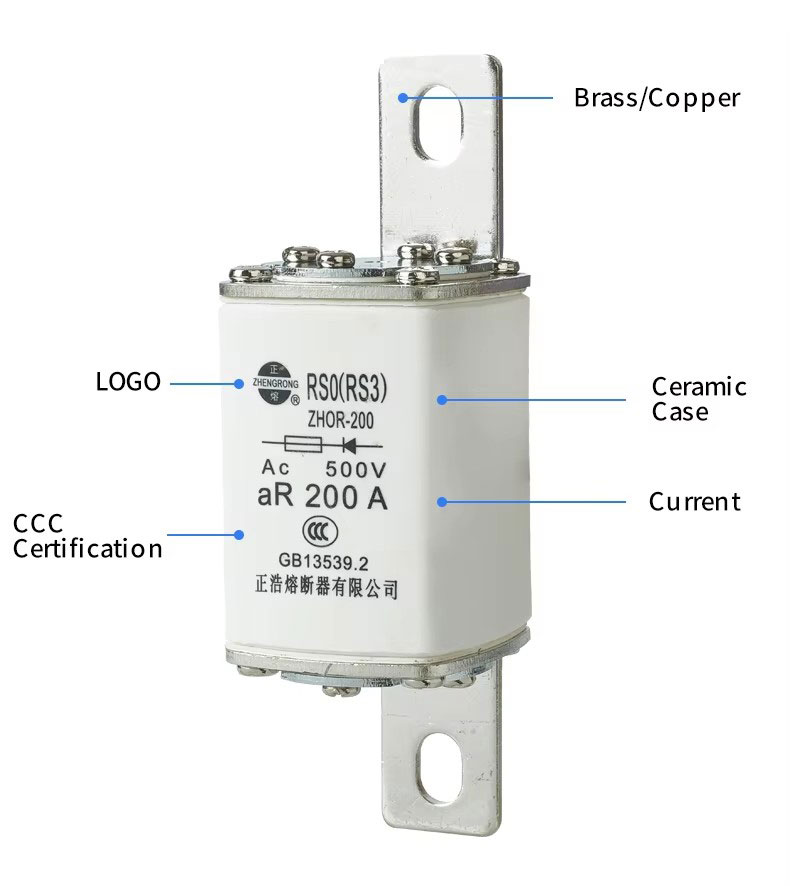

The 1000A 500V Square Bolted Fuse is made of ceramic material, which has good resistance to voltage and heat, and can operate stably under high temperature and high pressure environment. At the same time, 1000A 500V Square Bolted Fuse the fuse's fast-blow function can quickly cut off the current in case of circuit failure, effectively protecting the safety of equipment and lines, 1000A 500V Square Bolted Fuse the fuse also has the characteristics of explosion-proof, shock-proof, moisture-proof, etc., suitable for use in a variety of harsh environments.
Features&Benefits
The fuse is made of ceramic material, which has good resistance to voltage and heat, and can operate stably under high temperature and high pressure environment.
High reliability
Good protection
Wide application
Applications
General industrial applications
Motor drives
LV-net works
Cable state relays
Semiconductor devices
Power rectifiers
Uninterruptable Power System
converters
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Rated Current | 100A, 250A, 200A, 32A, 50A, 2A, 16A, |
| Brand Name | ZHENGRONG |
| Model Number | RSO-1000 |
| Use | LOW VOLTAGE |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Square Tube Bolt Fuse |
| Rated Voltage | 500V |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 0.500kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |
Products Display

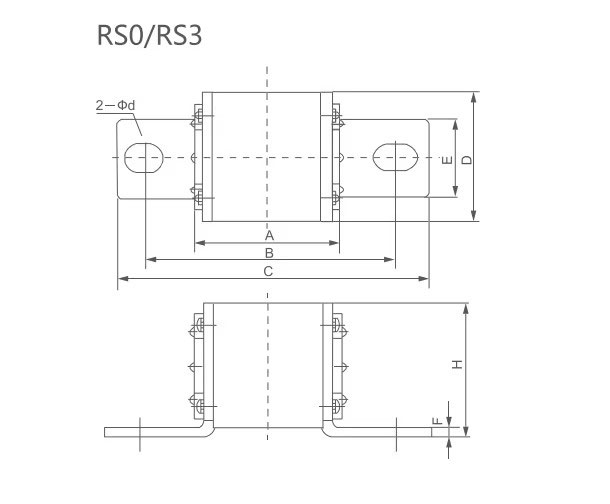

Specification
| Model | Dimension(mm) | |||||||
| A | B | C | D | E | F | H | Φd | |
| RSO/RS3-100 | 72 | 116 | 140 | 41 | 20 | 2.1 | 43 | 8×2 |
| RSO/RS3-200 | 72 | 120 | 145 | 46 | 24 | 2.1 | 50 | 9×3.5 |
| RSO/RS3-400 | 75 | 115 | 145 | 55 | 30 | 3.3 | 61 | 11×17 |
| RSO/RS3-600 | 75 | 130 | 155 | 66 | 40 | 4 | 70 | 13×19.5 |
| RSO/RS3-1000 | 78 | 138 | 17 | 85 | 50 | 4.5 | 90 | Φ18 |
Certification
