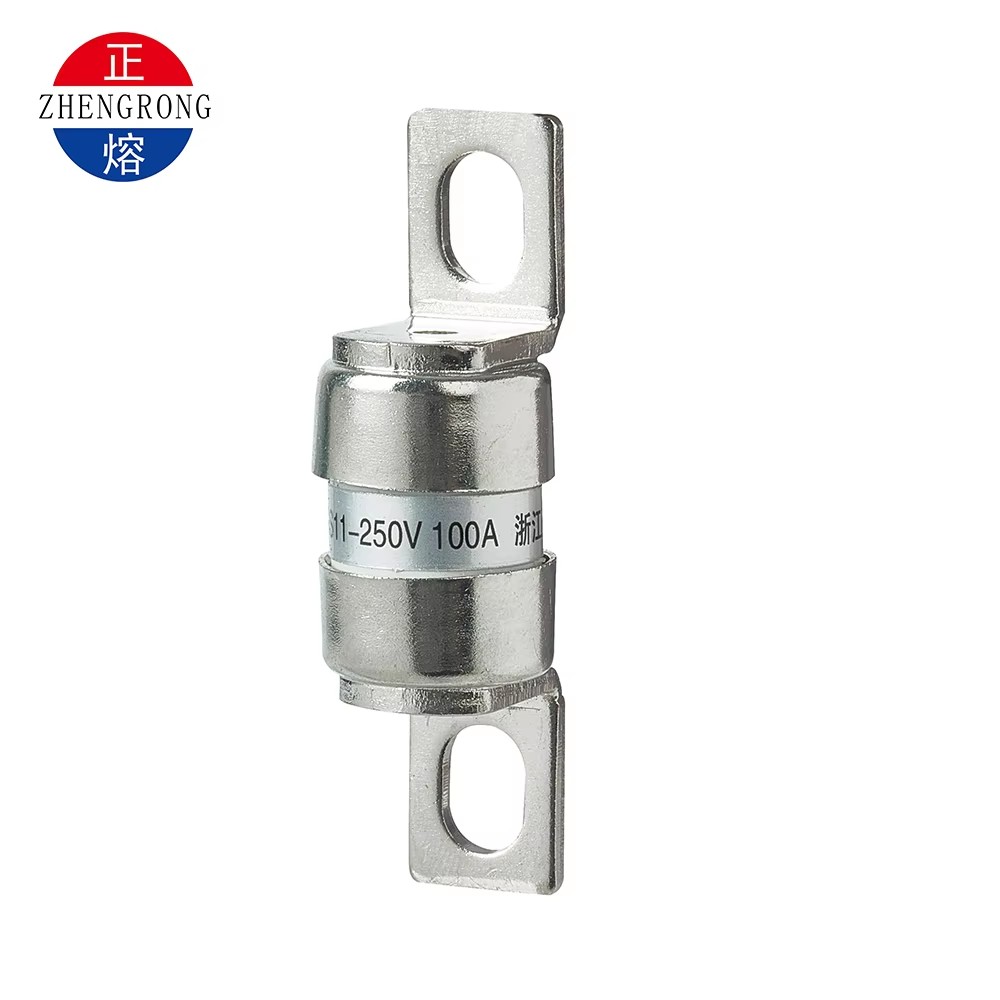

RGS4 Safety square Tube Bolt Fuse Connection Fuse
The RGS4 Safety Square Tube Bolt Fuse Connection Fuse is a high-performance protection component widely used in electrical circuits. The RGS4 Safety Square Tube Bolt Fuse Connection Fuse features a robust square tube design coupled with secure bolt connections, ensuring excellent mechanical strength and stable conductivity. This fuse is engineered to provide reliable overcurrent protection for industrial equipment, power distribution systems, and automation panels, effectively preventing equipment damage caused by short circuits or overloads.
With strict compliance to international safety standards, the RGS4 fuse is suitable for various voltage and current applications, making it an ideal choice for reliable circuit protection. Whether for new installations or upgrades, the RGS4 Safety Square Tube Bolt Fuse Connection Fuse enhances the safety and efficiency of your electrical system.
Feature
Enhanced Safety
Reliable Electrical Performance
Easy Maintenance and Replacement
High Breaking CapacityVisible Connection Status
Power system protection
Industrial automation equipment
rail transit
renewable energy
Building power supply system
|
Breaking Capacity |
High |
Place of Origin |
China |
|
Rated Current |
10A,12A,15A,16A,20A,30A,40A,50A,100A,200A,250A |
Safety Standards |
IEC |
|
Model Number |
RGS4 |
Brand Name |
ZHENGRONG |
|
Application |
Low Voltage |
Brand |
ZHENGRONG |
|
Product name |
Square Tube Bolt Fuse |
Rated voltage |
660V/1000V |
|
Rated Current |
10-125A |
Certificate |
CE,CCC |
|
Color |
White |
Service |
ODM/OEM |
|
Fuse Size |
Customized Size |
Manufacturer History |
40+years |
|
Package |
Standard Package |
||
Package and delivery
|
Selling Units |
Single item |
Single package Size |
15x7x10 |
|
Single gross weight |
0.5kg |
||
Lead time
|
Quantity(pieces) |
1-100 |
101-1000 |
1001-10000 |
>10000 |
|
Lead time(days) |
5 | 15 | 25 |
To be negotiated |

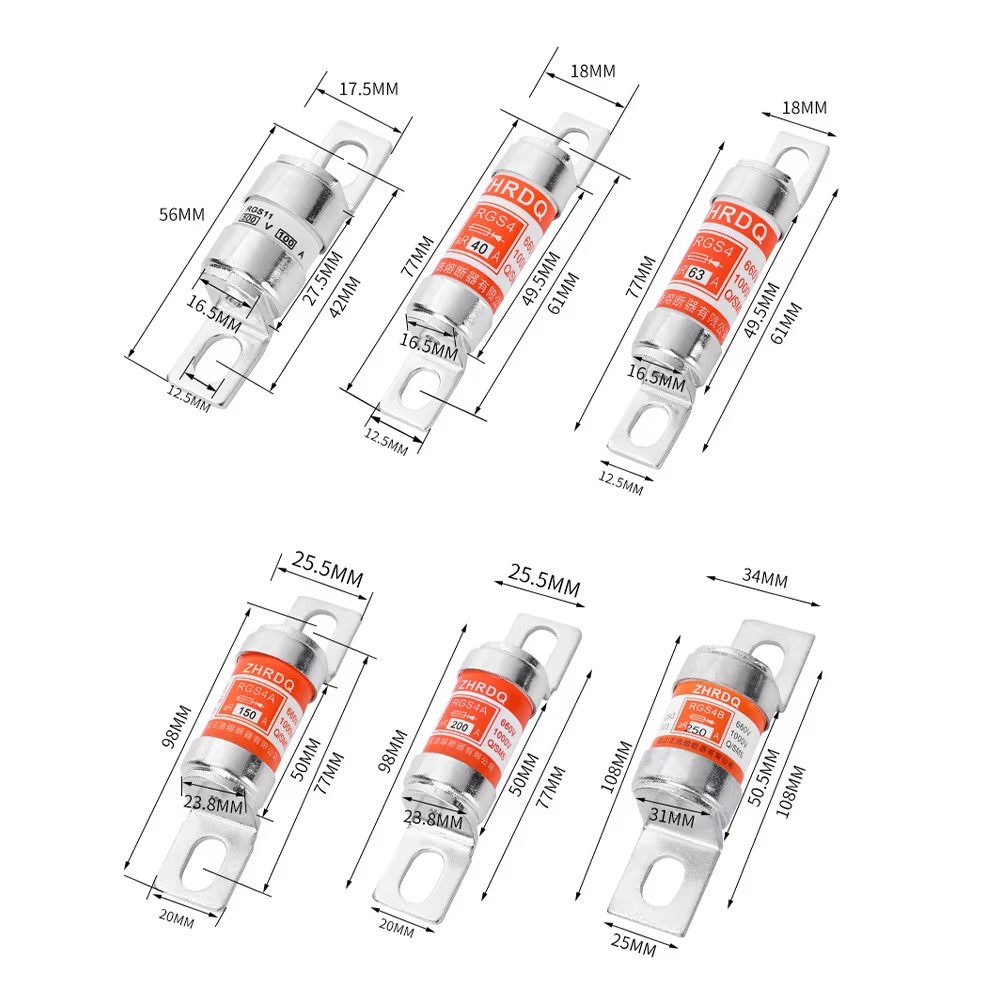

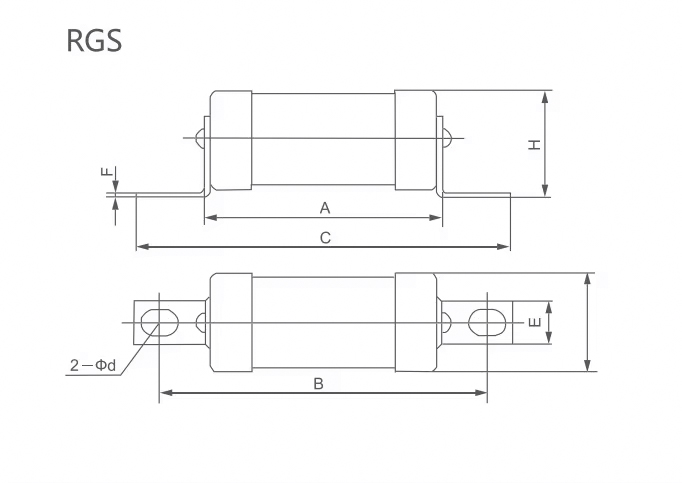

Specifications
|
Model |
Dimension(mm) |
|||||||
| A | E3 | C | E | F | H |
Φd |
||
|
RGS4 |
48 | 61 | 77 | 12 | 2.0 | 18 | 6.5*9 | |
|
RGS4A |
48.5 | 77 | 95 | 20 | 3 | 25.5 | 9*14 | |
|
RGS4B |
50.5 | 82 | 82 | 108 | 25 | 34 | 10.5*16 | |
|
RGS4-2 |
48 | 76 | 90 | 30 | 2 | 18 | 9*14 | |
