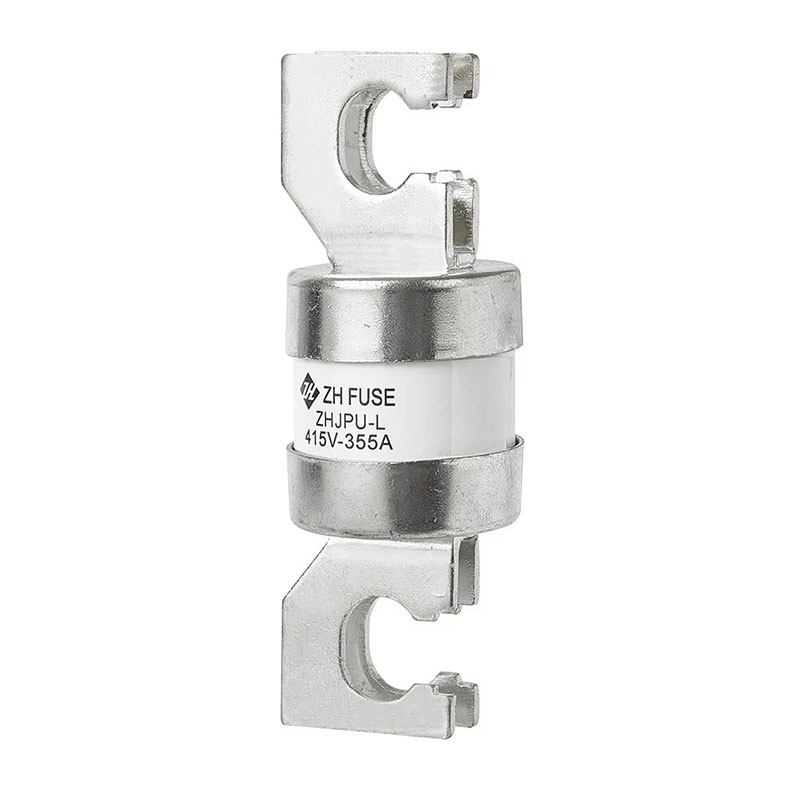

415V 355A JPU Bolt Fuse
415V 355A JPU Bolt Fuse If the system fails, the fault current causes the fuse to melt immediately and an arc occurs, causing the arc extinguisher to be heated and explode a large amount of gas. This will create high pressure and blow off the arc with a tube.
The 415V 355A JPU Bolt Fuse has passed the test of safety, precision and accuracy, with strong quality assurance, and the fuse tube is fixed to form a tight position when it is tightened by the fuse to work normally.
Introduction
This series of 415V 355A JPU Bolt Fuse cylindrical cover fuses is suitable for AC 50Hz, rated voltage up to 415V, and rated current up to 355A. 415V 355A JPU Bolt Fuse is mainly used for overload and short circuit protection (gG/gL) in electrical systems; 415V 355A JPU Bolt Fuse can also be used for semiconductor device protection (aR) and motor protection (aM).
Features&Benefits
Strong operation ability
Good quality assurance
High safety
Certificate certification
Factory direct sales
Application
Used to protect lines, ensure line safety, and effectively prevent line failures.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | ZHJPU92 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Square Tube Bolt Fuse |
| Rated Voltage | 415/500V |
| Rated Current | 200-400A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 1.000kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |
Products Display

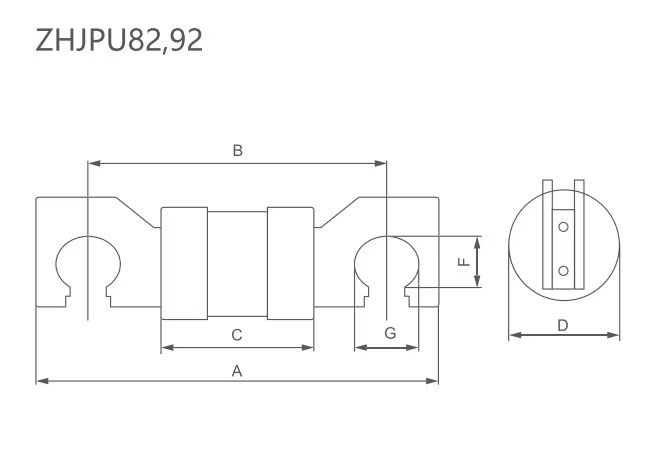

Specification
| Model | Dimension(mm) | |||||
| A | B | C | D | F | G | |
| ZHJPU82 | 111 | 80 | 45 | 40 | 14 | 17 |
| ZHJPU92 | 131 | 92 | 45 | 56 | 17 | 20 |
Certification
Hot Tags: 415V 355A JPU Bolt Fuse, 355A fuse supplier, Zhenghao OEM
