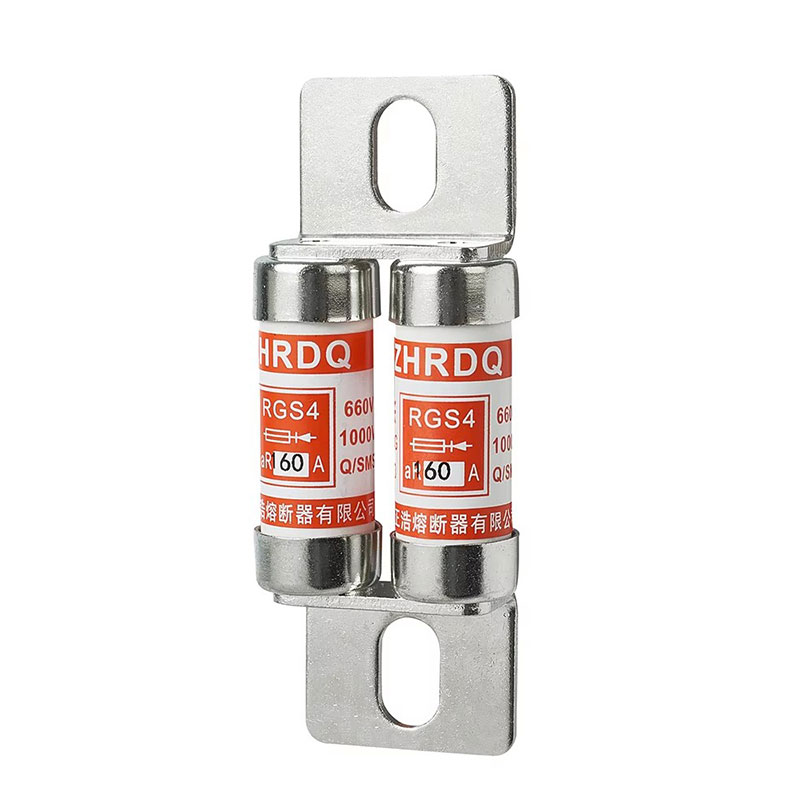

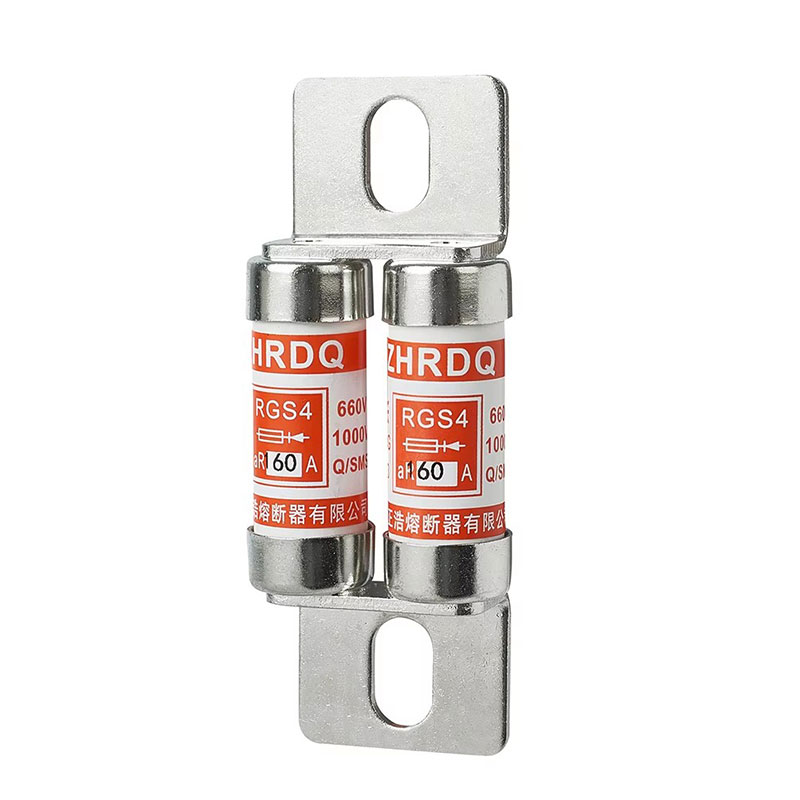

660-1000V Bolt Fuse
We use standard thickness copper silver plated RGS4 fast fuse, which has good conductivity. We use high-quality ceramic body and filled quartz sand that has been chemically treated to ensure excellent heat dissipation and arc extinguishing. 660-1000V Bolt Fuse can also be used for semiconductor components and short-circuit protection (aR) and motor protection (aM), with a rated voltage of up to 1000V, a rated current of 160A, and a working frequency of 50Hz. The rated breaking capacity of 660-1000V Bolt Fuse is up to 80KA, which complies with GB13539 and IEC269 standards.
Introduction
660-1000V bolt fuse is a fuse with bolt connection. 660-1000V bolt fuse. The rated current of this type of fuse can reach up to 160A, and the rated voltage can reach up to 690V to 1000V.
Features&Benefits
660-1000V Bolt Fuse has high breaking capacity, fast melting speed, significant current limiting characteristics, and meets national standards and International Electrotechnical Commission standards.
Application
660-1000V Bolt Fuse is suitable for power system protection and mechanical equipment overload protection in industries such as chemical, mining, building materials, transportation, and automotive.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Rated Current | 40A, 16A, 12A, 20A, 50A, 32A, 250A, 200A, 100A, 15A, 10A |
| Brand Name | ZHENGRONG |
| Model Number | RGS4 |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Square Tube Bolt Fuse |
| Rated Voltage | 660/1000V |
| Rated Current | 10-125A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 0.500kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |

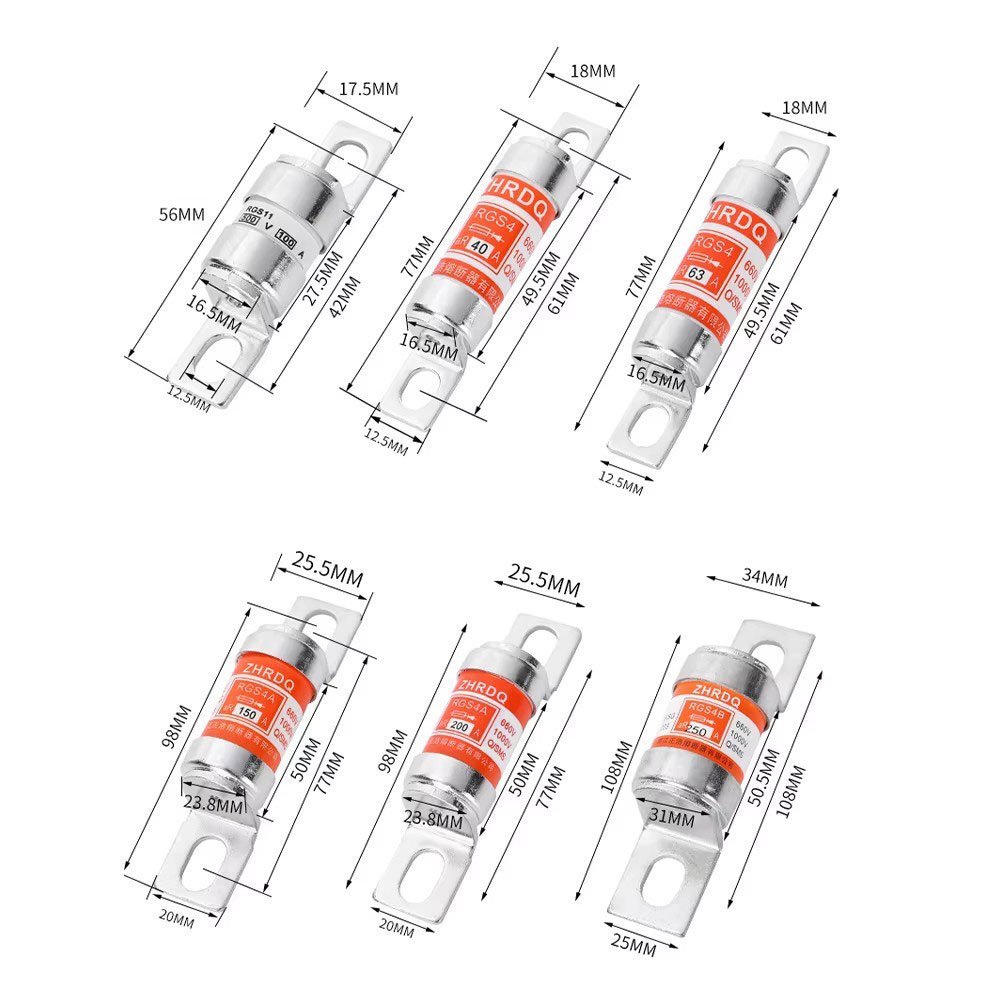

Products Display

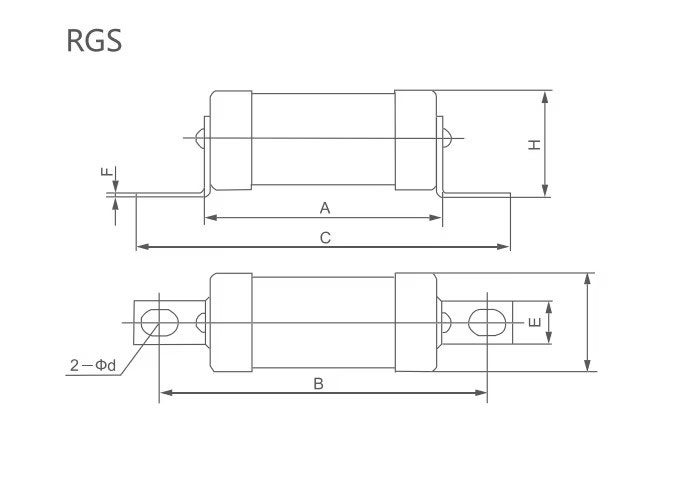

Specification
| Model | Dimension(mm) | ||||||
| A | E3 | C | E | F | H | Φd | |
| RGS4 | 48 | 61 | 77 | 12 | 2.0 | 18 | 6.5*9 |
| RGS4A | 48.5 | 77 | 95 | 20 | 3 | 25.5 | 9*14 |
| RGS4B | 50.5 | 82 | 108 | 25 | 3 | 34 | 10.5*16 |
| RGS4-2 | 48 | 76 | 90 | 30 | 2 | 18 | 9*14 |
Certification
