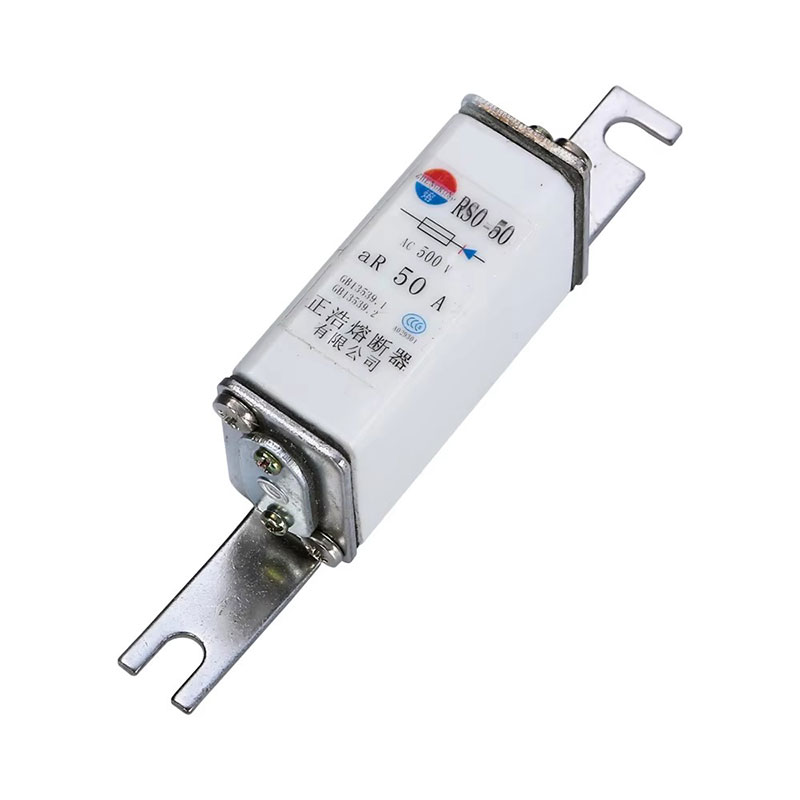

500V 50A Square Fuse
The RSO ceramic fuse is a blade type fuse structure, and the working principle of the 500V 50A Square Fuse is to insert a melting conductor into the circuit. When the current exceeds the set value, it melts to disconnect the circuit and ensure the safety of the circuit and equipment. The 500V 50A Square Fuse is easy to install and replace, and can be disassembled up and down to replace with a new fuse, saving a series of costs. Zhenghao offers different sizes and current ratings to meet the needs of different customers.
Introduction
Based on the industry, Zhenghao continuously improve the research and optimize the production process of 500V 50A square fuses. With a strong R&D team, we have improved the performance of 100KA fuses, bolt fuses, and solar fuses to ensure that we have sufficient technical reserves. We can meet the demand of domestic and foreign customers for 500V 50A square fuses.
The 500V 50A square fuse can already meet the needs of various customers in the market. We sincerely look forward to cooperating with more overseas customers on the basis of mutual benefit. In the process of introducing, digesting, absorbing, and innovating new technologies, Zhenghao have formed our own unique core industry chain.
Zhenghao Fuse adhere to the corporate management and brand marketing philosophy of "professionalism, integrity, pragmatism, rigor, and innovation". Faced with the current situation full of variables and severe tests, we lead all colleagues forward with a firm and positive attitude. Thank you for the recognition of our 500V 50A square fuse from domestic and foreign customers. We welcome continuous orders.
Features&Benefits
Small size
High security
Easy to operate
Affordable prices
Applications
500V 50A Square Fuse have indicator which can show blown when the fuse is blown, easy to maintenance and repair.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Rated Current |
15A, 40A, 12A, 6A, 16A, 20A, 50A, 32A, 100A, 250A, 200A, |
| Brand Name | ZHENGRONG |
| Model Number | RSO-50 |
| Use | LOW VOLTAGE |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Product name | Square Tube Bolt Fuse |
| Rated Voltage | 500V |
| Rated Current | 10-50A |
| Certificate | CE, CCC |
| Color | White |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 15X7X10 cm |
| Single gross weight: | 0.200kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |
Products Display

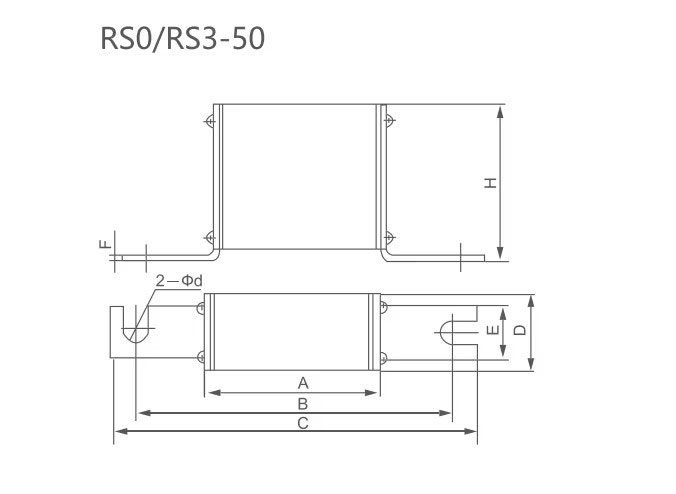

Specification
| Model | Dimension(mm） | |||||||
| A | B | C | D | E | F | H | Φd | |
| RSO/RS30-50 | 70 | 120 | 137 | 25 | 15 | 2 | 43 | 7 |
Certification
