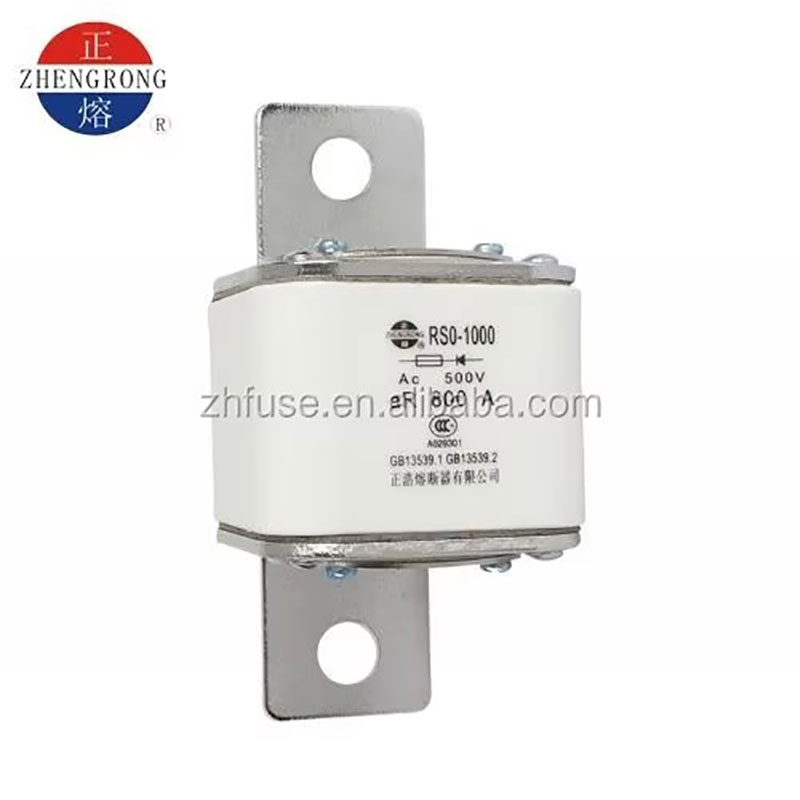

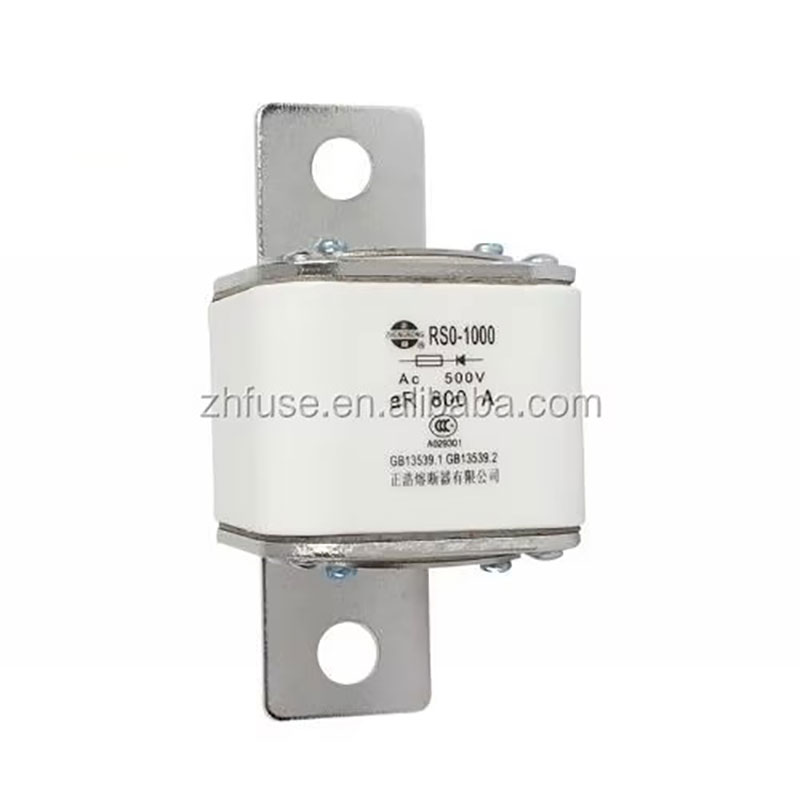

800A 500V Square Type Fuse
As a leading industry in China, our 800A 500V Square Type Fuse is a square tube bolt fast fuse product that is already very sophisticated and can meet the needs of domestic and foreign customers. The rated voltage of the 800A 500V square fuse core is 500V, with a breaking capacity of 50Ka, providing good safety protection and better equipment protection.
Introduction
There are various types of solar products on the market now, and it is difficult to guarantee that they will not be uneven. Customers do not know how to choose the right product for themselves. As an outstanding manufacturer in China, Zhenghao Fuse has a strong R&D team. The company adheres to the concept of "quality is the foundation of survival, customer first". We strictly control the quality of our products and never miss any detail.
Based on interviews and customer feedback, after years of development, Zhenghao Fuse has finally designed the 800A 500V Square Type Fuse, which is suitable for solar photovoltaic power generation systems with a rated current of 800A and a rated voltage of 500V As a current protection device for photovoltaic power generation equipment and photovoltaic modules.
the 800A 500V Square Type Fuse provides strong support for short-circuit protection of the system in series with the battery, charging converter system, and photovoltaic panel parallel connection. From materials to various components, we have chosen high-strength ceramic bodies, chemically treated quartz sand as arc extinguishing media, and high-quality components for quality control, all in order to provide customers with the highest quality products. If you have any further questions or concerns about our products, please contact us as soon as possible, and we will provide you with the best advice and necessary data.
Features&Benefits
Professional fuse manufacturer for 40 years
Direct Factory price
ODM/OEM Available
Excellent performance at temperature extremes
1000VDC Photovoltaic(PV)system available
Meets IEC IEC60269-6 standard for global acceptance
Applications
His series of fuses is suitable for solar photovoltaic power generation systems, rated voltage to 500V. rated current to 800A, as a photovoltaic component string and photovoltaic square array in photovoltaic power generation equipment the over-current protection; in parallel with the photovoltaic panel and the battery in series, the short-circuit breaking protection of the charging converter system; in the photovoltaic power station, the bus Inverting rectifier system and short-circuit fault protection; as well as quick protection against inrush current and short-circuit fault overvoltage in photovoltaic power generation systems, the rated breaking capacity can reach 10-30kA.
Key attributes
Industry-specific attributes
| Breaking Capacity | High |
Other attributes
| Place of Origin | Zhejiang, China |
| Brand Name | ZHENGRONG |
| Model Number | ZHPV-H1B |
| Safety Standards | IEC |
| Brand | ZHENGRONG |
| Use | LOW VOLTAGE |
| Product name | Photovoltaic System DC Fuse |
| Rated Voltage | DC 1000V |
| Rated Current | 250A |
| Certificate | CE, CCC |
| Color | Customized Color |
| Service | ODM/OEM |
| Fuse Size | Customized Size |
| Manufacturer History | 40+years |
| Package | Standard Package |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 10X5X3 cm |
| Single gross weight: | 0.100kg |
Lead time
| Quantity(pieces) | 1-100 | 101-1000 | 1001-10000 | >10000 |
| Lead time(days) | 31 | 35 | 40 | To be negotiated |

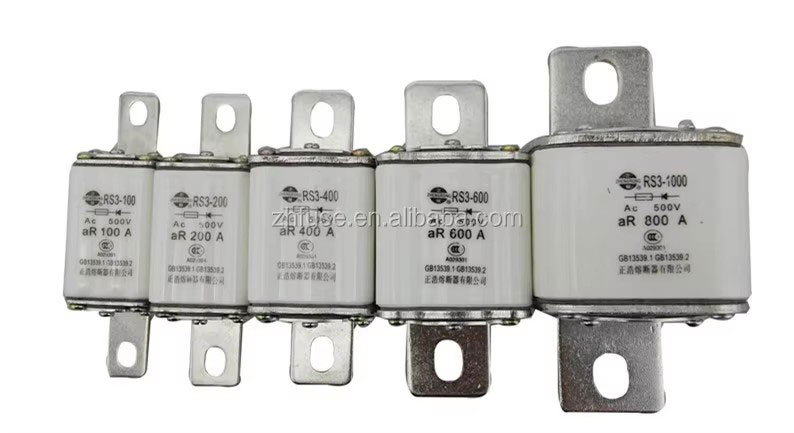

Products Display

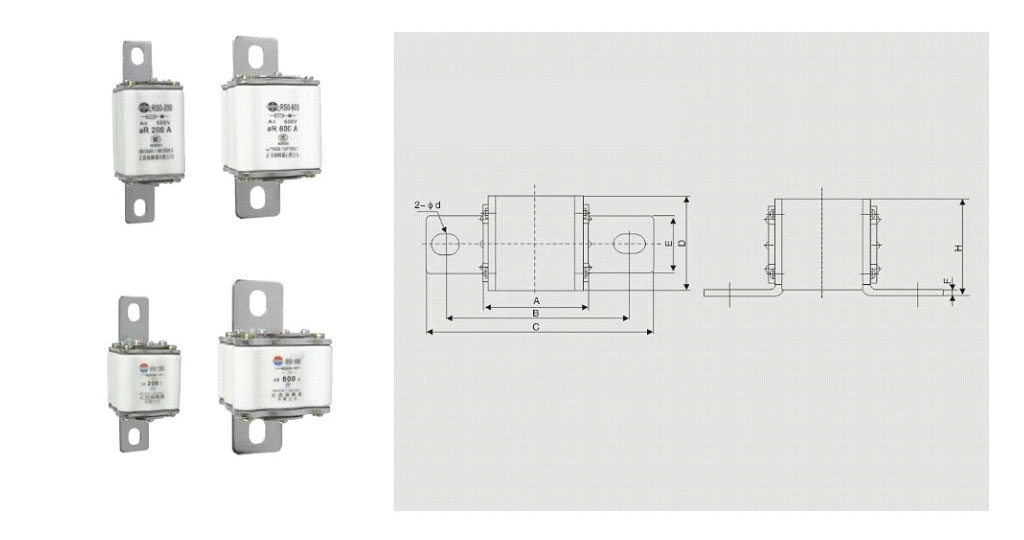

Specification
| Fuse Type Fast(aR) | Rated voltage（V） | Rated Current(A) | Dimension(mm) | |||||||
| A | B | C | D | E | F | H | Φd | |||
| RSO/RS3-100 | 500 | 20-100 | 72 | 122 | 144 | 41 | 20 | 2.1 | 43 | 8*12 |
| RSO/RS3-200 | 500 | 120-200 | 72 | 120 | 145 | 46 | 24 | 2.2 | 50 | 9*13.5 |
| RSO/RS3-400 | 500 | 200-400 | 75 | 115 | 145 | 55 | 30 | 3.3 | 61 | 11*17 |
| RSO/RS3-600 | 500 | 500-600 | 75 | 130 | 155 | 65 | 40 | 3.5 | 70 | 13*19.5 |
| RSO/RS3-1000 | 500 | 800-1000 | 78 | 138 | 176 | 85 | 50 | 4.5 | 90 | Φ18 |
| RSO/RS3-100 | 250 | 20-100 | 51 | 100 | 120 | 41 | 20 | 2.1 | 43 | 8*12 |
| RSO/RS3-200 | 250 | 120-200 | 53 | 100 | 124 | 46 | 24 | 2.2 | 50 | 9*13.5 |
| RSO/RS3-400 | 250 | 200-400 | 55 | 86 | 126 | 55 | 30 | 3.3 | 61 | 11*17 |
| RS0/RS-600 | 250 | 500-600 | 55 | 98 | 133 | 65 | 40 | 3.5 | 70 | 13*19.5 |
| RSO/RS3-1000 | 250 | 800-1000 | 60 | 122 | 160 | 85 | 50 | 4.5 | 90 | Φ18 |
